Compact controller with OPC UA and failsafe logic

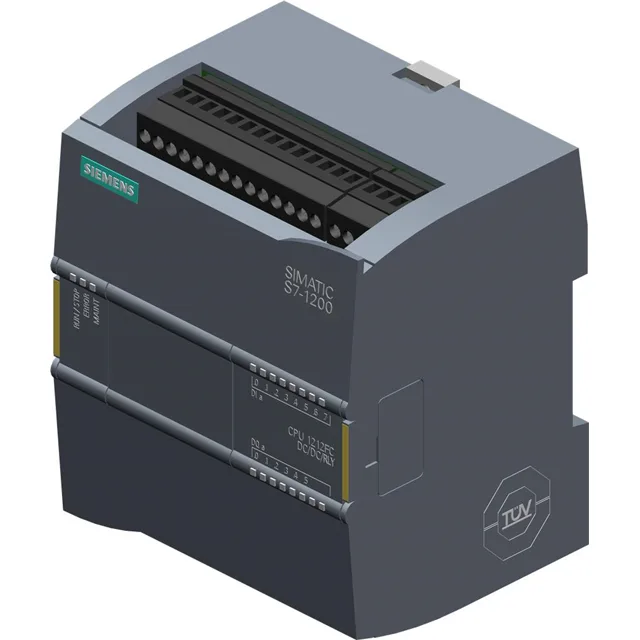

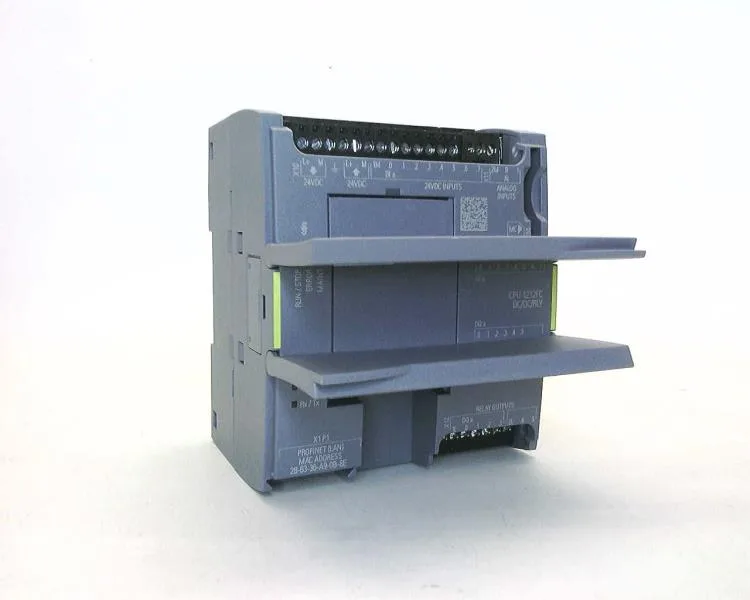

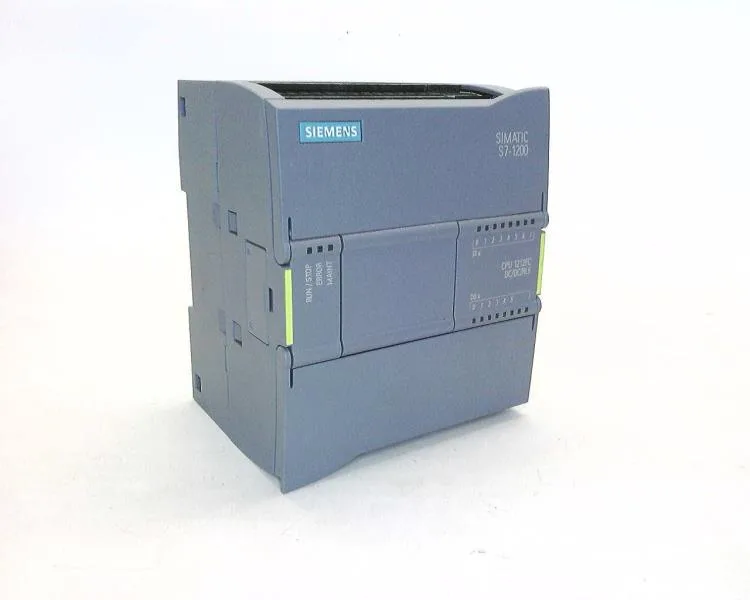

The Siemens 6ES7212-1HF40-0XB0 is a SIMATIC S7-1200 CPU 1212C controller running a full OPC UA server and MODBUS TCP stack, with 2 Mbyte of integrated program and data memory. Rated for -40 to 70 °C ambient, it fits enclosures without climate control or cold-weather installations. Ladder and function block diagram programming both include failsafe blocks, eliminating the need for a separate safety relay on smaller applications. The 90 x 100 x 75 mm footprint (width/height/depth) matches the standard S7-1200 slot in a distribution board or control panel. Connection capacity: up to 4 PG, 12 HMI, 8 S7, 8 open user, 2 web, and 0 reserved OPC UA connections, expandable to 64 total.
Programming and connectivity overview
Step 7 TIA Portal handles engineering; DCP (Discovery and Configuration Protocol) gives automatic PROFINET addressing at first power-on. Supports forcing on peripheral inputs/outputs excluding fail-safe channels, useful during FAT/SAT without rewiring. PROFIBUS master or slave can be added via CM 1243-5 or CM 1242-5 modules; the CPU has no native PROFIBUS submodule. OPC UA server runs alongside Modbus TCP, TCP/IP, and UDP; SNMP and LLDP are available for network management.
