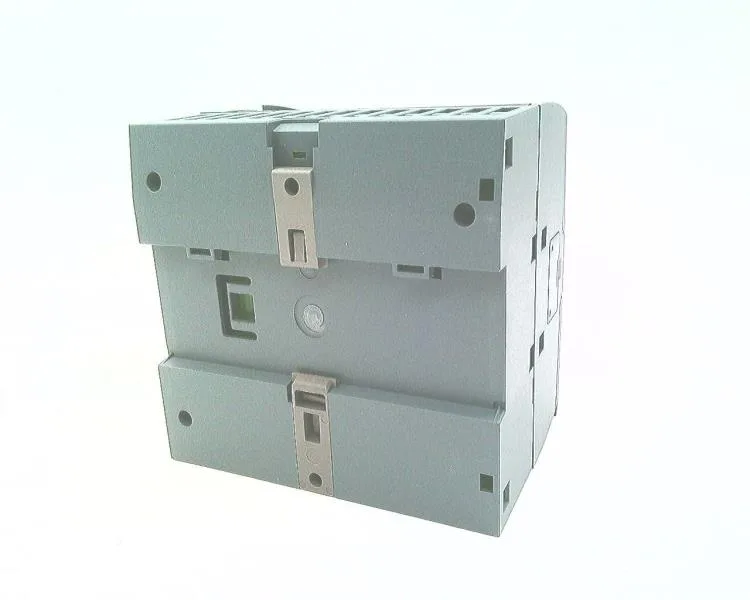

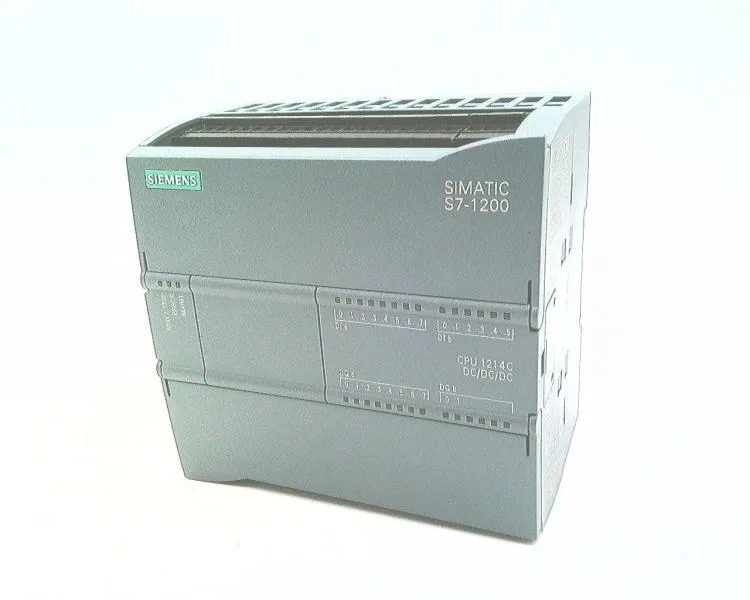

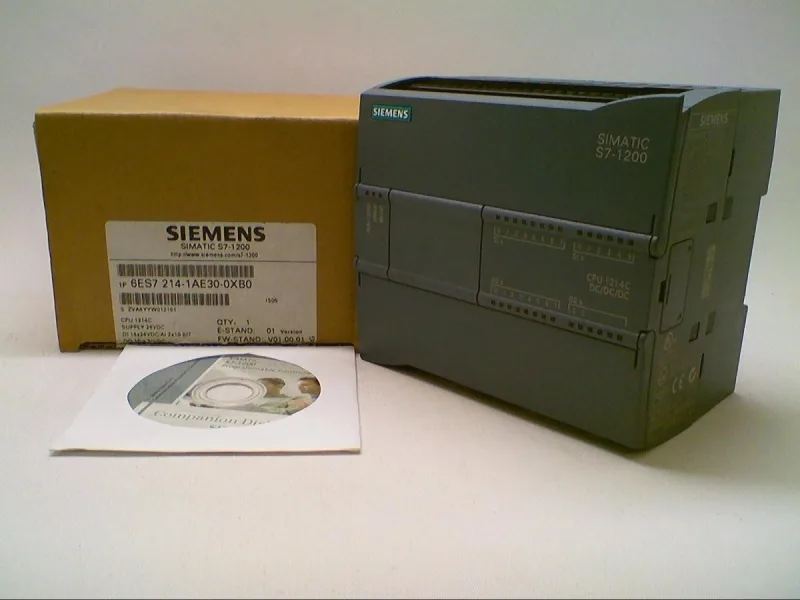

Siemens 6ES7214-1AE30-0XB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7214-1AE30-0XB0 S7-1200 CPU, PROFINET, 24V DC, 2M

MPN6ES7214-1AE30-0XB0

Siemens S7-1200 CPU 1214C, DC/DC/DC, 24 V DC, 14 DI/10 DO, 2 AI, PROFINET, 75 mm depth.

$782.96Ref. price · indicative, final on quote
Siemens 6ES7214-1AE30-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7214-1AE30-0XB0 — I/O
ParameterValue
Digital inputs14; Integrated
Digital outputs10
Input data area1 024 byte
Output data area1 024 byte
6ES7214-1AE30-0XB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.1 µs; / Operation
Execution time, word operations (typ.)12 µs; / Operation
Execution time, floating-point arithmetic (typ.)18 µs; / Operation
Size, max.8 kbyte; Size of bit memory address area
6ES7214-1AE30-0XB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7214-1AE30-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)12 W
Short-circuit protectionNo; to be provided externally
6ES7214-1AE30-0XB0 — Environmental
ParameterValue
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)0 °C
Operating temperature, max. (horizontal mounting)55 °C
6ES7214-1AE30-0XB0 — Mechanical
ParameterValue
Width110 mm
Height100 mm
Depth75 mm
Weight (approx.)415 g
6ES7214-1AE30-0XB0 — Communication
ParameterValue
Interface typePROFINET

Product details

What it is and key ratings

The Siemens 6ES7214-1AE30-0XB0 is an S7-1200 CPU 1214C with 24 V DC supply, PROFINET interface, and 2 Mbyte integrated memory. It supports LAD, FBD, and SCL programming and includes a PID controller.

Rated for -40 to 70 °C ambient, this CPU carries cULus, CE, and FM approvals. Dimensions are 110 x 100 x 75 mm (WxHxD). Backup time is 240 h typical.

Comparison to 6ES7212-1AD30-0XB0

The 6ES7212-1AD30-0XB0 is a 1212C with fewer I/O and no analog inputs on-board; it shares the same PROFINET interface and 24 V DC supply but has a narrower 90 mm width. If you need the extra I/O and analog inputs, the 6ES7214-1AE30-0XB0 is the direct fit.

Frequently asked questions

What programming languages does 6ES7214-1AE30-0XB0 support?

It supports LAD, FBD, and SCL programming languages.

What approvals does 6ES7214-1AE30-0XB0 carry?

It carries cULus, CE, and FM approvals.

What is the backup time for the real-time clock?

The backup time is 240 h typical.
