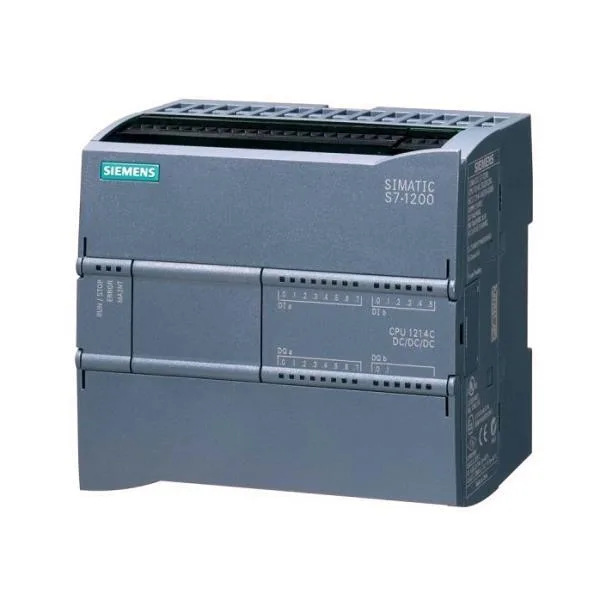

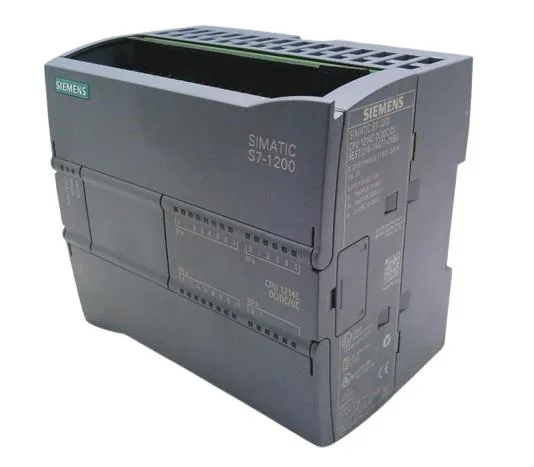

The Siemens 6ES7214-1AG31-0XB0 is an S7-1200 CPU 1214C controller, powered by 24 V DC across a 20.4 V to 28.8 V permissible range and rated for ambient temperatures up to 70 °C, meaning it holds its timing and I/O integrity in a hot, humid mill cabinet through a summer outage. Programmable in LAD, FBD, and SCL. Integrated 4 Mbyte load memory with 480 h typical backup. Communication comes standard: PROFIBUS DP, MODBUS TCP (client/server), UDP, and AS-Interface. No extra module needed for the mill’s existing drive or valve-bank network—the CPU speaks all of them natively, which saves a slot and a license fee. Approvals include cULus, CE, FM, and CSA—so it passes the typical mill electrical audit without a waiver. The 24 V DC input is isolated, and the 0 to +10 V analog inputs can handle 2-wire sensors directly.
Siemens 6ES7214-1AG31-0XB0 S7-1200 CPU, 24 V DC 20.4-28.8V
MPN6ES7214-1AG31-0XB0
Siemens S7-1200 CPU 1214C, 6ES7214-1AG31-0XB0, 24 V DC input, 70 °C ambient max, programming LAD/FBD/SCL, PROFIBUS, MODBUS TCP, cULus, CE.
$490.00 – $1,145.65Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
| Input data area | 1 024 byte |
| Output data area | 1 024 byte |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.085 µs; / instruction |
| Execution time, word operations (typ.) | 1.7 µs; / instruction |
| Execution time, floating-point arithmetic (typ.) | 2.5 µs; / instruction |
| Size, max. | 8 kbyte; Size of bit memory address area |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 12 W |
| Short-circuit protection | No; to be provided externally |
Environmental
| Parameter | Value |
|---|---|
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | -20 °C |
| Operating temperature, max. (horizontal mounting) | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 110 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 415 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | PROFINET |
Product details
Frequently asked questions
What programming languages does 6ES7214-1AG31-0XB0 support?
It supports LAD (ladder logic), FBD (function block diagram), and SCL (structured text).
What compliance certifications does this CPU carry?
It holds cULus, CE, FM, and CSA approvals.
