Siemens 6ES7214-1HG31-0XB0 — PLCs (Programmable Logic Controllers)

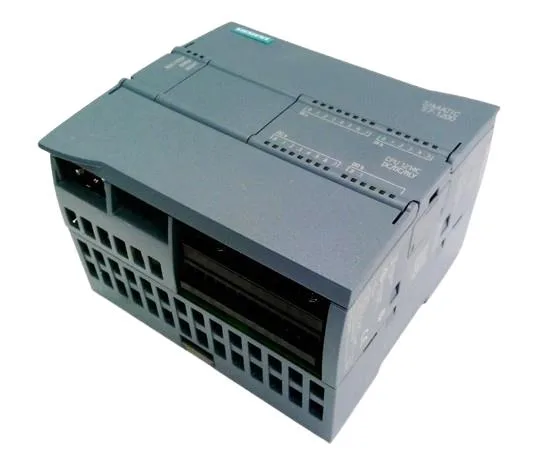

Siemens 6ES7214-1HG31-0XB0 S7-1200 CPU 1214C, 24V DC

MPN6ES7214-1HG31-0XB0

Siemens SIMATIC S7-1200, CPU 1214C DC/DC/DC, 6ES7214-1HG31-0XB0, 24 V DC supply range 20.4-28.8 V, 4 Mbyte memory, cULus/CE/UL/CSA, multi-protocol fieldbus.

$457.20 – $476.00Ref. price · indicative, final on quote
Siemens 6ES7214-1HG31-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7214-1HG31-0XB0 — I/O
ParameterValue
Digital inputs14; Integrated
Digital outputs10; Relays
Input data area1 024 byte
Output data area1 024 byte
6ES7214-1HG31-0XB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.085 µs; / instruction
Execution time, word operations (typ.)1.7 µs; / instruction
Execution time, floating-point arithmetic (typ.)2.5 µs; / instruction
Size, max.8 kbyte; Size of bit memory address area
6ES7214-1HG31-0XB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7214-1HG31-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)500 mA; Typical
Permissible range, lower limit (DC)5 V
Permissible range, upper limit (DC)250 V
Power loss (typ.)12 W
Short-circuit protectionNo; to be provided externally
6ES7214-1HG31-0XB0 — Environmental
ParameterValue
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)-20 °C
Operating temperature, max. (horizontal mounting)60 °C
6ES7214-1HG31-0XB0 — Mechanical
ParameterValue
Width110 mm
Height100 mm
Depth75 mm
Weight (approx.)435 g
6ES7214-1HG31-0XB0 — Communication
ParameterValue
Interface typePROFINET

Product details

Part summary and fit notes

The Siemens 6ES7214-1HG31-0XB0 is a SIMATIC S7-1200 CPU 1214C DC/DC/DC controller that accepts a 24 V DC supply over a 20.4–28.8 V range, tolerating plant DC bus dips without a separate regulator. Rated ambient from -40 to 70 °C, it sits comfortably in outdoor cabinets or unheated enclosures. The onboard 4 Mbyte integrated memory holds the user program and retains data via 480 h typical backup time on the internal capacitor, enough for extended power outages. This unit carries cULus, CE, FM, UL, and CSA approvals — a full compliance package for North American and EU panels without extra certification effort.

Connectivity and programming

Built-in PROFIBUS, Modbus TCP, UDP, and AS-Interface cover most fieldbuses without add-on comm modules. The CPU also supports FBD, LAD, and SCL programming languages. I/O addressing is 1 024 bytes each for inputs and outputs. Forcing of I/O and variables is supported.

Frequently asked questions

What compliance documentation does this CPU carry?

The 6ES7214-1HG31-0XB0 is listed with cULus, CE, FM, UL, and CSA approvals. Declaration of conformity and CE marking documentation are available upon request — the approvals are factory-original, not regional re-certifications.
