Siemens 6ES7214-2BD23-0XB0 — PLCs (Programmable Logic Controllers)

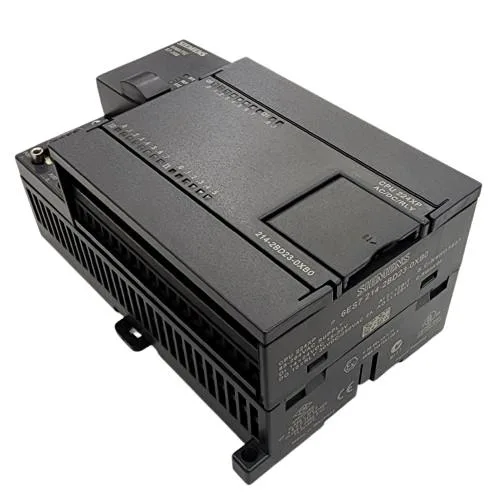

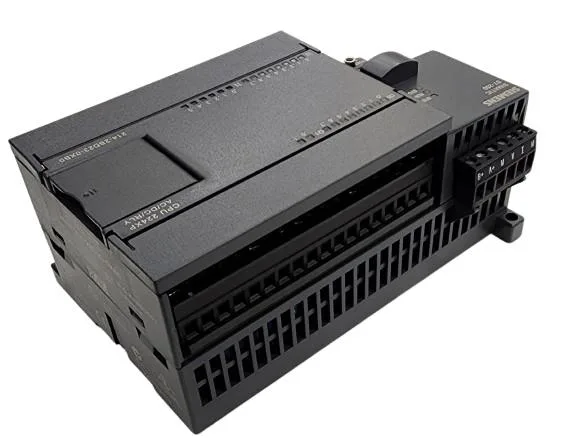

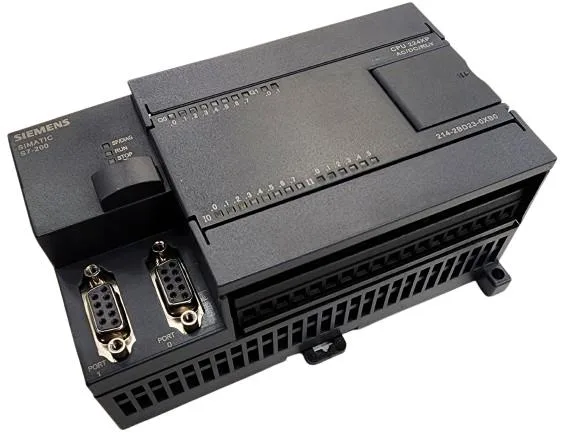

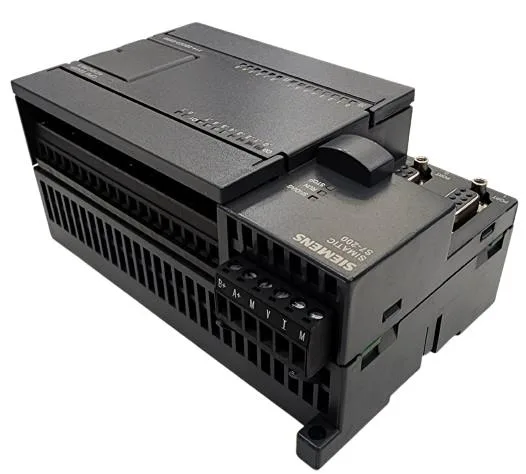

Siemens 6ES7214-2BD23-0XB0 S7-200 CPU 224, 24VDC

MPN6ES7214-2BD23-0XB0

Siemens 6ES7214-2BD23-0XB0 S7-200 CPU 224, AC/DC/Relay, 24 V DC inputs, 6 high-speed counters, MPI/PPI.

$580.33 – $1,002.00Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7214-2BD23-0XB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7214-2BD23-0XB0 — I/O
Parameter	Value
Digital inputs	14
Digital outputs	10; Relays

6ES7214-2BD23-0XB0 — Processor & Memory
Parameter	Value
Size, max.	32 byte

6ES7214-2BD23-0XB0 — Programming
Parameter	Value
Programming language: FBD	Yes
Programming language: LAD	Yes

6ES7214-2BD23-0XB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Permissible range, lower limit (DC)	5 V
Permissible range, upper limit (DC)	30 V
Power loss (typ.)	11 W
Short-circuit protection	No; to be provided externally

6ES7214-2BD23-0XB0 — Mechanical
Parameter	Value
Width	140 mm
Height	80 mm
Depth	62 mm
Weight (approx.)	440 g

6ES7214-2BD23-0XB0 — Environmental
Parameter	Value
Operating temperature, min. (horizontal mounting)	0 °C
Operating temperature, max. (horizontal mounting)	55 °C

6ES7214-2BD23-0XB0 — Communication
Parameter	Value
Interface type	Integrated RS 485 interface

Product details

What this CPU brings to your panel

The Siemens 6ES7214-2BD23-0XB0 has a dual-rated supply: 100 V AC to 230 V AC or 24 V DC (20.4 V to 28.8 V permissible). Integrated 24 V DC inputs are source/sink selectable per group, and six high-speed counters handle up to 200 kHz each – enough for incremental encoders or fast pulse trains from sensors. The relay outputs switch up to 200 W on lamp loads (AC) or 30 W (DC). MPI and PPI protocols support data exchange with HMI devices and other CPUs. The backup capacitor retains data for at least 70 h at 40 °C; an optional battery extends that to 200 days typical.
