The 6ES7215-1AF40-0XB0 CPU 1215C has 24V DC supply, PROFINET with MRP manager/client, and OPC UA server. It runs LAD and FBD including failsafe blocks (PROFIsafe), operating -40 to 70°C. Certifications: cULus, CE.

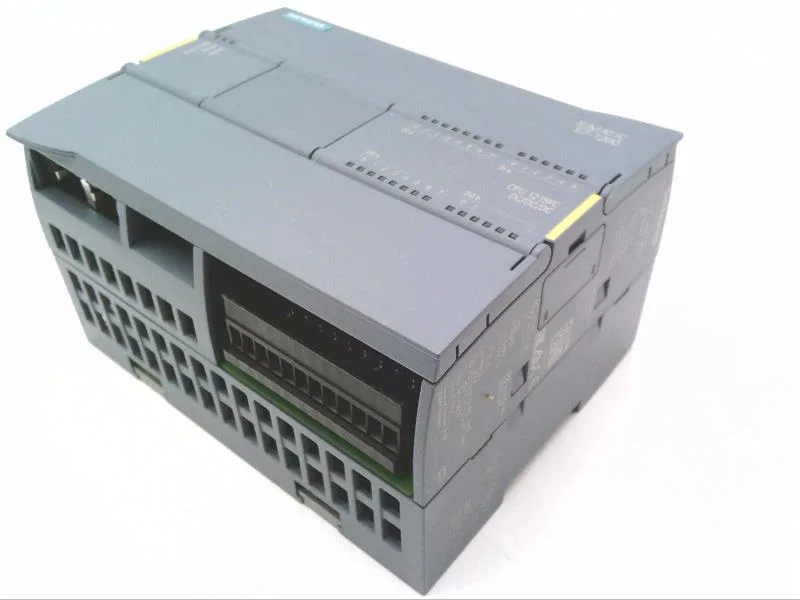

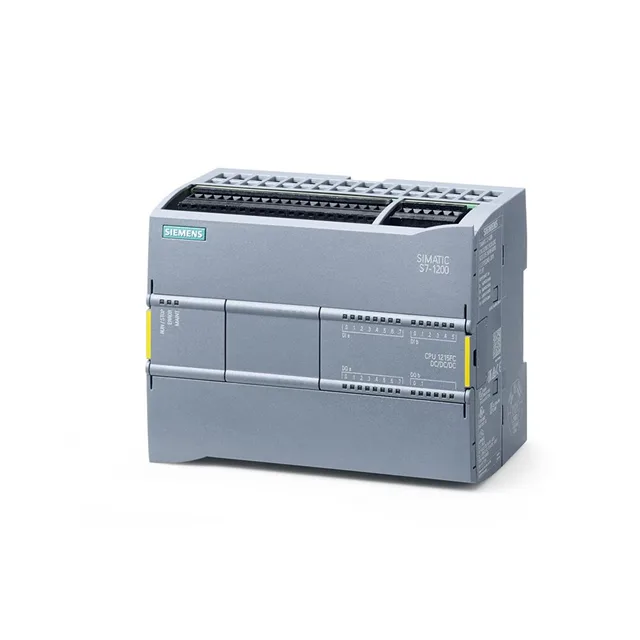

Siemens 6ES7215-1AF40-0XB0 CPU 1215C, MRP, OPC UA
MPN6ES7215-1AF40-0XB0
Active
Siemens SIMATIC S7-1200 CPU 1215C, 24V DC, PROFINET with MRP, OPC UA, failsafe, 130x100x75 mm.
$637.54 – $1,331.01Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.08 µs; / instruction |
| Execution time, word operations (typ.) | 1.7 µs; / instruction |
| Execution time, floating-point arithmetic (typ.) | 2.3 µs; / instruction |
| Size, max. | 8 kbyte; Size of bit memory address area |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes; incl. failsafe |
| Programming language: LAD | Yes; incl. failsafe |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 500 mA; CPU only |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 12 W |
Environmental
| Parameter | Value |
|---|---|
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | 0 °C |
| Operating temperature, max. (horizontal mounting) | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 130 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 500 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | PROFINET |
Product details
Frequently asked questions
What is the DCP capability of this CPU?
Yes, DCP is supported – the CPU can be discovered and configured via PROFINET device configuration protocol.
What failsafe programming methods are available?
LAD and FBD both include failsafe blocks, enabling PROFIsafe safety functions.
MPN
6ES7215-1AF40-0XB0
