6ES7215-1AG31-0XB0 - Siemens
MPN6ES7215-1AG31-0XB0

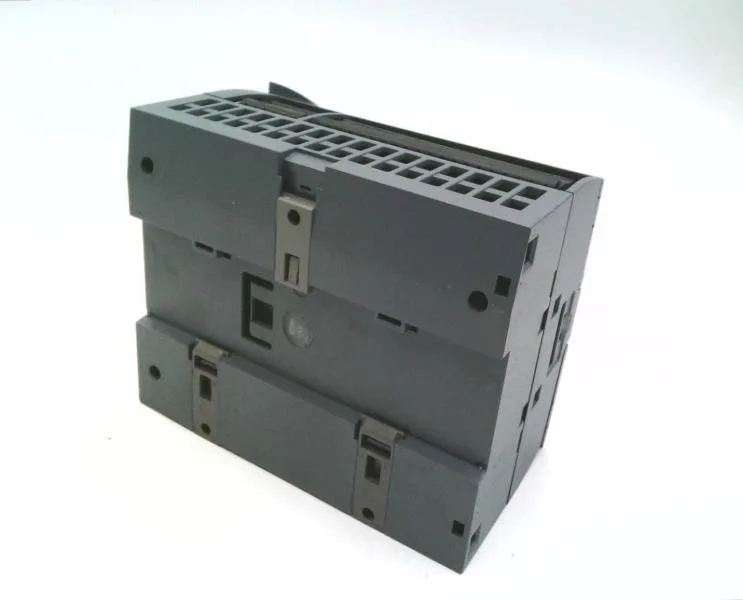

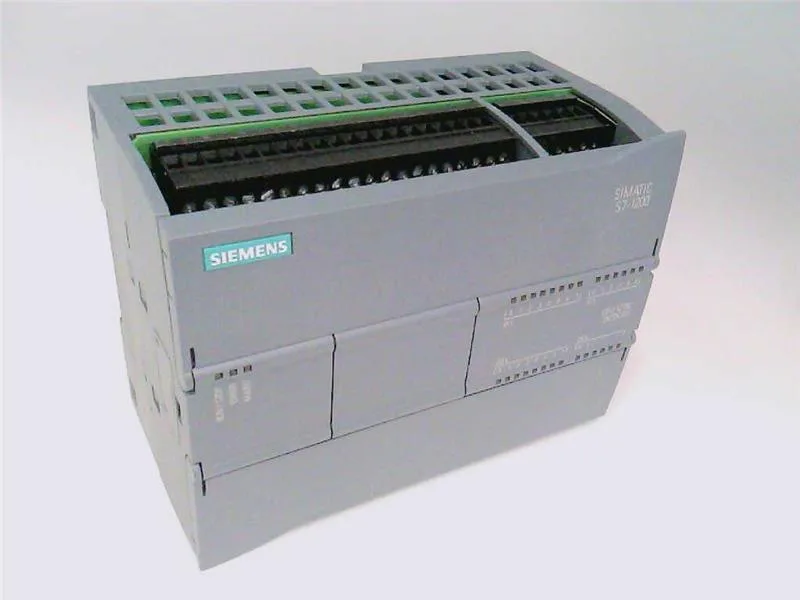

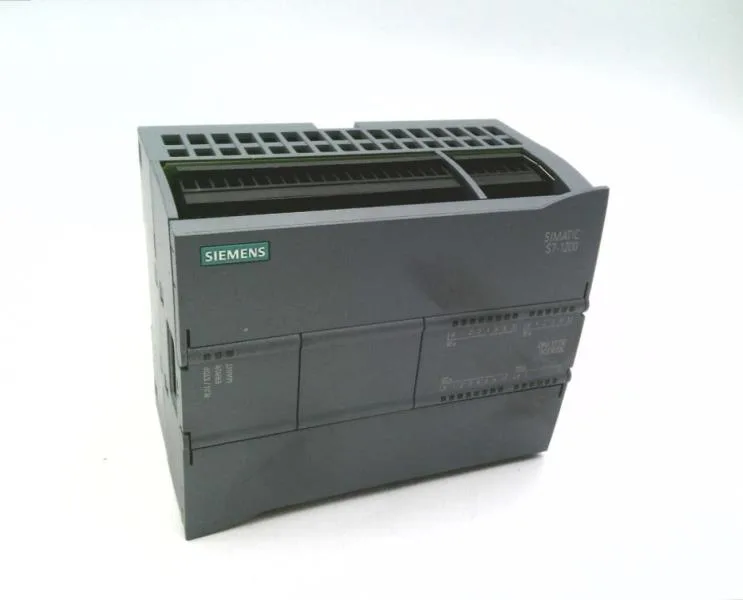

SIMATIC S7-1200, CPU 1215C, compact CPU, DC/DC/DC, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 0.5A; 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply: DC 20.4-28.8V DC, Program/data memory 100 KB
$1,050.04Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
| Input data area | 1 024 byte |
| Output data area | 1 024 byte |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.085 µs; / instruction |
| Execution time, word operations (typ.) | 1.7 µs; / instruction |
| Execution time, floating-point arithmetic (typ.) | 2.5 µs; / instruction |
| Size, max. | 8 kbyte; Size of bit memory address area |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 500 mA; Typical |
| Permissible range, lower limit (DC) | 5 V |
| Permissible range, upper limit (DC) | 250 V |
| Power loss (typ.) | 12 W |
| Short-circuit protection | No; to be provided externally |
Environmental
| Parameter | Value |
|---|---|
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | -20 °C |
| Operating temperature, max. (horizontal mounting) | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 130 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 520 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | PROFINET |
MPN
6ES7215-1AG31-0XB0
