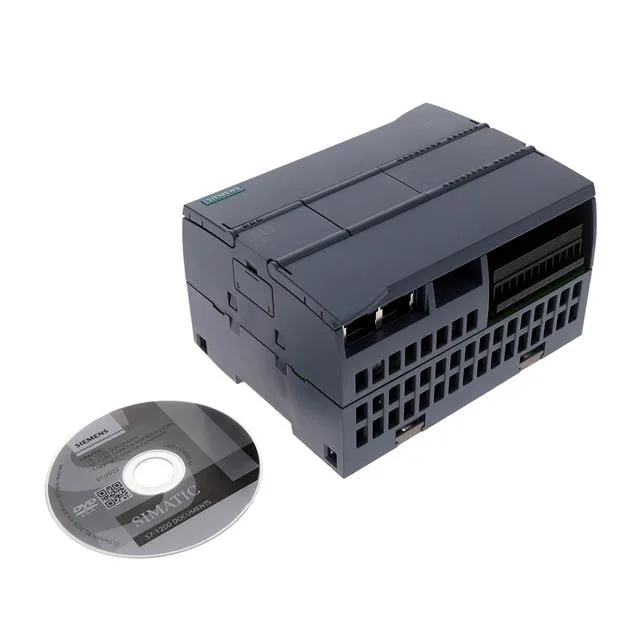

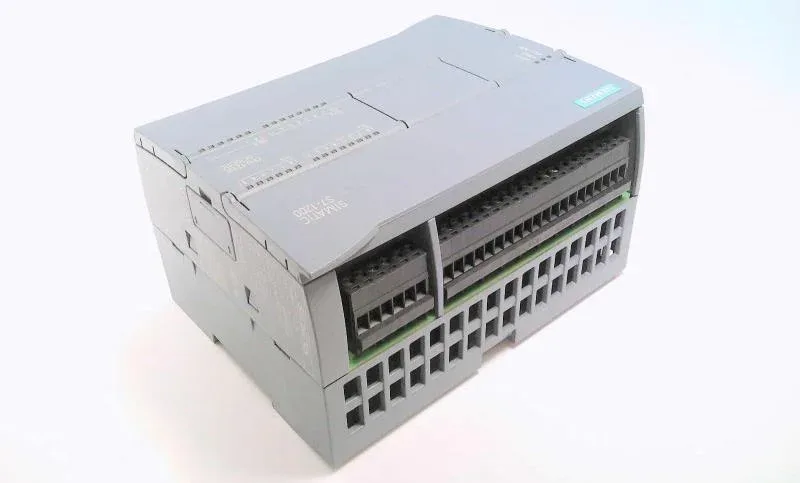

Siemens 6ES7215-1AG40-0XB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7215-1AG40-0XB0, CPU 1215C, PROFINET, -40..70°C

MPN6ES7215-1AG40-0XB0
Active

Siemens S7-1200 CPU 1215C, 6ES7215-1AG40-0XB0, 24 V DC, PROFINET, OPC UA Server, -40 to 70 °C, cULus, CE.

$393.70 – $914.07Ref. price · indicative, final on quote
Siemens 6ES7215-1AG40-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7215-1AG40-0XB0 — I/O
ParameterValue
Digital inputs14; Integrated
Digital outputs10
6ES7215-1AG40-0XB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.08 µs; / instruction
Execution time, word operations (typ.)1.7 µs; / instruction
Execution time, floating-point arithmetic (typ.)2.3 µs; / instruction
Size, max.8 kbyte; Size of bit memory address area
6ES7215-1AG40-0XB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7215-1AG40-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)500 mA; CPU only
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)12 W
6ES7215-1AG40-0XB0 — Environmental
ParameterValue
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)-20 °C
Operating temperature, max. (horizontal mounting)60 °C
6ES7215-1AG40-0XB0 — Mechanical
ParameterValue
Width130 mm
Height100 mm
Depth75 mm
Weight (approx.)500 g
6ES7215-1AG40-0XB0 — Communication
ParameterValue
Interface typePROFINET

Product details

The built-in OPC UA server (yes, listed as OPC UA Server) means you can expose process data directly to higher-level systems without a separate gateway — saves panel space and one license. The MRP support lets you wire the PROFINET port into a redundant ring for line uptime; just note IRT (isochronous real-time) is not supported, so this CPU is not for motion drives requiring tight synchronization.

Sourcing and compliance notes

Specify this CPU into your BOM; we will quote it to order. No lifecycle notification has been issued; treat it as current catalog. The cULus and CE marks cover most global panel builds; for RoHS/REACH declarations, request the Siemens compliance pack with your order.

Frequently asked questions

Does the 6ES7215-1AG40-0XB0 support DCP?

Yes, DCP (Discovery and Configuration Protocol) is listed as supported, enabling PROFINET network setup.

Is FBD programming available on this CPU?

Yes, Function Block Diagram (FBD) is supported alongside LAD and SCL.

What compliance documentation is available?

The CPU carries cULus and CE marks. For RoHS and REACH declarations, request the Siemens compliance pack with your order.
