CPU capability map for controls integrators

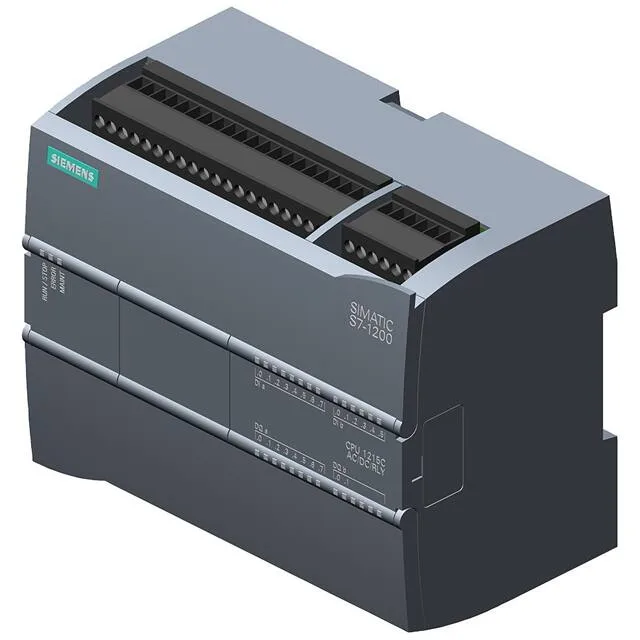

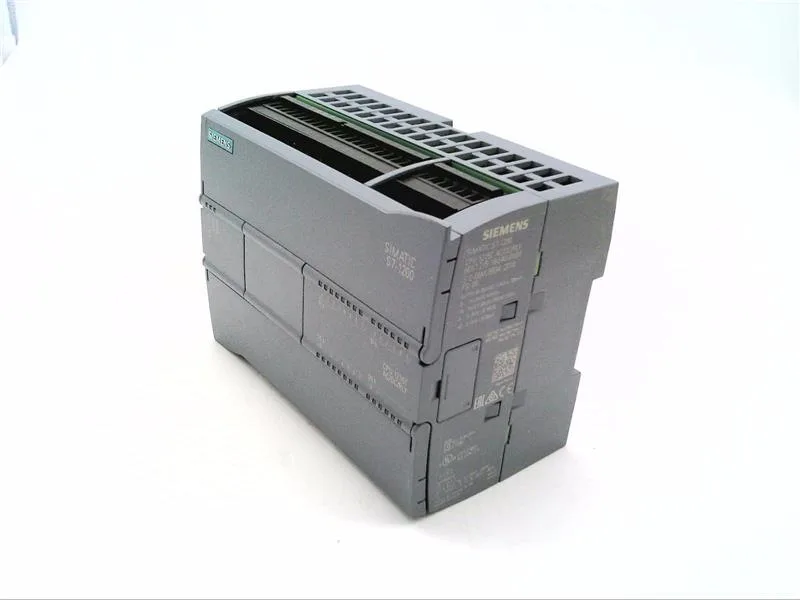

The Siemens 6ES7215-1BG40-0XB0 is an S7-1200 CPU that includes an OPC UA server and MRP redundancy manager, making it suitable for applications requiring secure data exchange and network redundancy within the 24 V DC supply range of 20.4 to 28.8 V. Supports LAD, FBD, and SCL programming languages, giving the controls team flexibility to reuse logic from existing projects or adopt function-block diagrams for process-oriented code. Connection capacity tops out at 64 total connections — with 34 reserved and room for up to 10 OPC UA connections — so the CPU can serve as a data concentrator for SCADA or MES without a separate communication processor. Wide ambient temperature range of -40 to 70 °C lets this CPU operate in unheated cabinets or outdoor-rated enclosures, matching the thermal demands of food processing, cold storage, or desert installations.
Mounting and wiring notes
Supply voltage tolerance from 20.4 to 28.8 V DC matches standard 24 V panels with a generous droop allowance; the CPU draws its power from the L+ and M terminals on the removable connector. DCP (Discovery and Configuration Protocol) is enabled by default, so the CPU can be identified and addressed on the PROFINET network without a programming cable — useful for panel builders staging multiple units. MRP can be used as redundancy manager or client, meaning the CPU can lead a ring or simply participate; wire the two PROFINET ports accordingly for a ring topology if high-availability is required.
Compliance and sourcing posture
Carries cULus and CE marks for North American and European markets, satisfying most industrial control panel certifications without additional listing.
