8-channel 24 VDC input module for the S7-1200 ecosystem

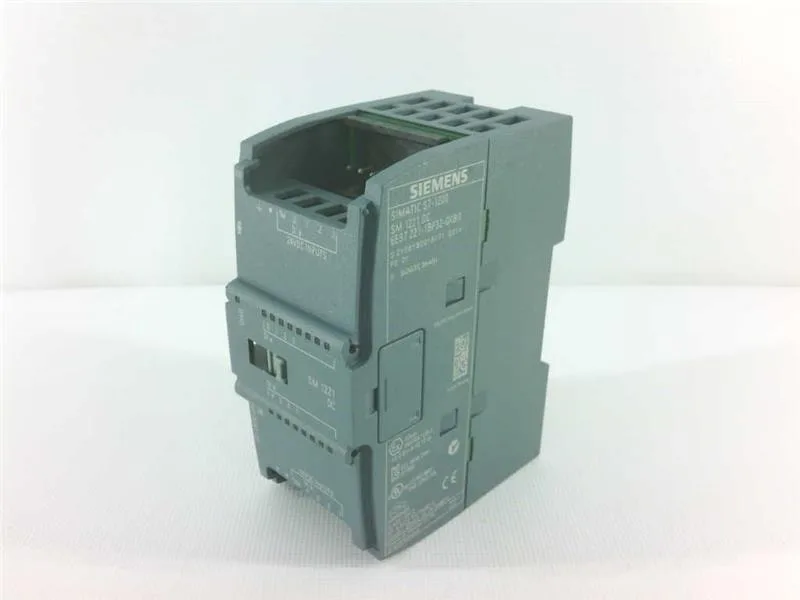

The 6ES7221-1BF32-0XB0 is an 8-channel digital input module in the SIMATIC S7-1200 family, drawing 1.5 W typical from the backplane bus. It accepts 24 VDC nominal field signals, with a logic '1' threshold at 15 VDC / 2.5 mA minimum and a logic '0' threshold at 5 VDC / 1 mA — a wide hysteresis that rejects noise on long cable runs.
Temperature envelope and mounting orientation
Rated for -40 °C to 70 °C ambient, but the mounting orientation derates the upper limit: horizontal installation allows up to 60 °C, vertical installation caps at 50 °C. The lower end is -20 °C in either orientation — the -40 °C rating applies only to storage/transport. For a panel in an unheated enclosure or a freezer line, this module handles the cold side without a heater. The IP20 housing (plastic, 170 g) snaps onto a DIN rail and requires a front connector (ordered separately). Dimensions are 45 mm wide, 100 mm high, 75 mm deep — fits a standard S7-1200 slot without crowding adjacent modules.
Cable length limits and diagnostic capability
Unshielded cable runs up to 300 m; shielded runs up to 500 m. For a distributed I/O layout where sensors are 200+ m from the panel, the shielded limit gives headroom. The module supports parameterizable inputs, diagnostic alarms, and status readback — useful for commissioning a FAT where you need to verify each channel's state without a field device connected. Inputs are arranged in groups of 2, with a maximum of 8 inputs at 40 °C and 8 at 50 °C — no derating of channel count across the normal industrial ambient range.
Regulatory approvals — global panel acceptance
Carries cULus, CSA, CE, FM, KC, and marine approvals, plus RCM (formerly C-TICK). For a panel shipping to North America, the cULus mark avoids a separate agency review; for a shipboard installation, the marine approval covers Lloyd's / DNV-type environments. No separate UL 508 listing is stated, but the cULus mark implies component recognition for industrial control equipment.
