Siemens 6ES7222-1BD22-0XA0

Name: 6ES7222-1BD22-0XA0
Brand: Siemens
SKU: 6ES7222-1BD22-0XA0
Availability: LimitedAvailability
Author: Drive-Doctor Dimitri

MPN6ES7222-1BD22-0XA0

Active

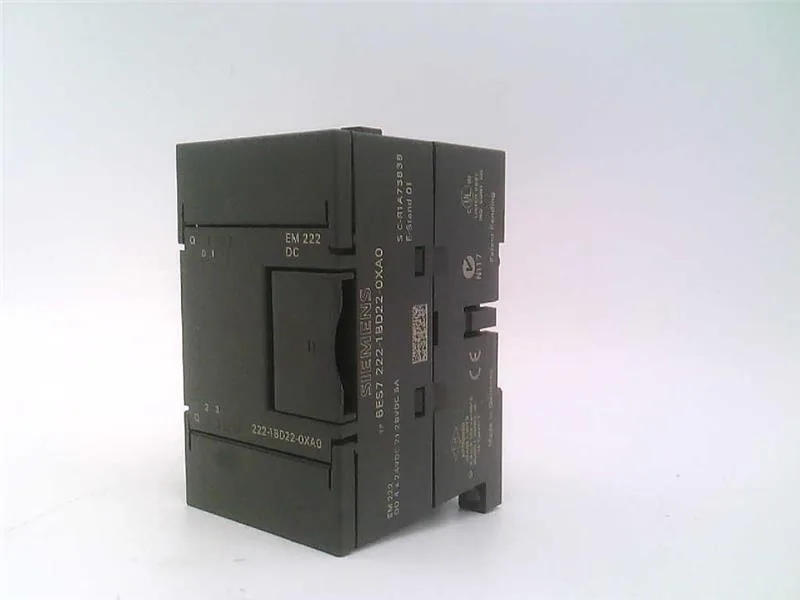

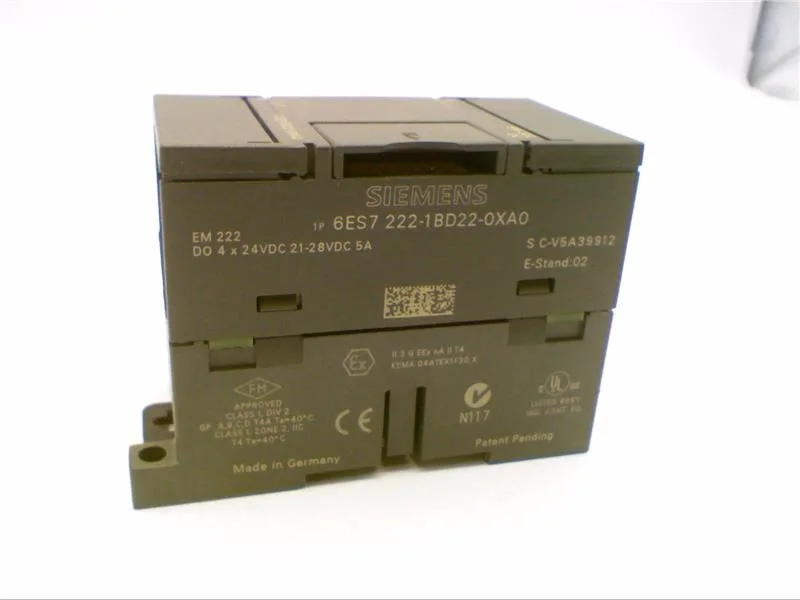

Siemens SIMATIC S7-200 EM 222 digital output module, 6ES7222-1BD22-0XA0, 4 DQ, 24 V DC, 5 A per channel, spare part.

$154.00Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7222-1BD22-0XA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7222-1BD22-0XA0 — Outputs
Parameter	Value
Digital outputs	4

6ES7222-1BD22-0XA0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Output current, resistive load, max.	5 A
Output current at signal "1" (rated)	5 A
Permissible range, upper limit (DC)	28.8 V
Permissible range, lower limit (DC)	20.4 V
Output voltage at signal "1" (min.)	20 V DC
Residual current at signal "0", max.	30 µA
Current consumption from backplane bus (5 V DC), max.	40 mA
Power dissipation (typ.)	3 W
Inductive shutdown voltage clamp	L+ (-48 V)
Isolation, channels in groups of	1
Isolation test voltage	500 V AC

6ES7222-1BD22-0XA0 — Protection & Diagnostics
Parameter	Value
Short-circuit protection	No

6ES7222-1BD22-0XA0 — Performance
Parameter	Value
Switching frequency, inductive load, max.	5 A
Switching frequency, lamp load, max.	50 W

6ES7222-1BD22-0XA0 — Mechanical & Connection
Parameter	Value
Cable length, unshielded, max.	150 m
Cable length, shielded, max.	500 m
Width	45 mm
Height	80 mm
Depth	62 mm
Weight (approx.)	120 g

Product details

What the 5 A per channel rating means for your load

The 6ES7222-1BD22-0XA0 is a spare-part digital output expansion module for SIMATIC S7-200 CPUs, designated as EM 222. It provides 4 source outputs at 24 V DC, each rated 5 A for resistive or inductive loads — that's enough current per channel to drive a medium contactor coil or a small solenoid bank directly, without an interposing relay.

Compatibility and wiring constraints

This module works only with S7-22X CPUs (CPU 221, 222, 224, 224XP, 226). It is not compatible with S7-200 SMART or later S7-1200/1500 families — the backplane connector and protocol differ. The plug-in I/O terminals make field swap fast; no re-wiring of the screw terminals if you pre-wire the connector. There is no short-circuit protection on the outputs. Each channel must be fused externally.
