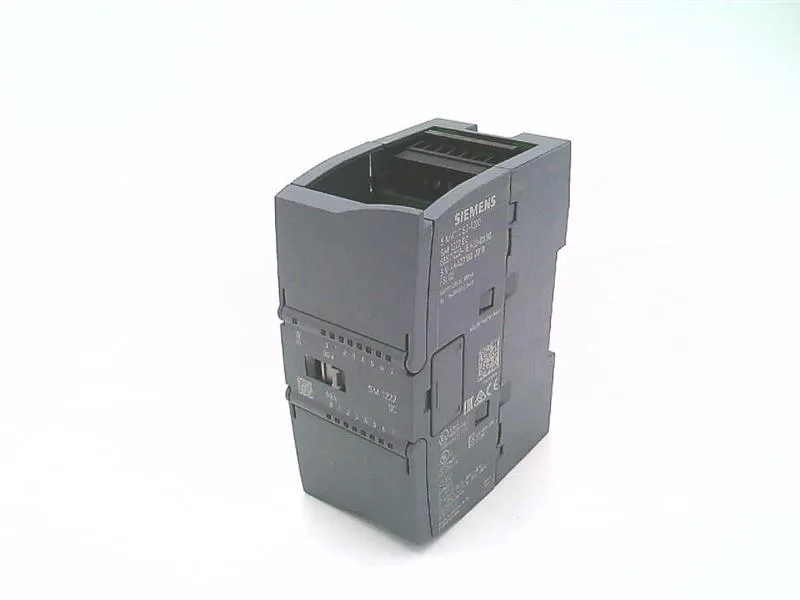

Siemens 6ES7222-1BH32-0XB0 — Digital Output Modules

Siemens 6ES7222-1BH32-0XB0 Digital Output Module, 16 DO, 24V

MPN6ES7222-1BH32-0XB0
Active

Siemens S7-1200 digital output module, 16 outputs, 24 V DC, 0.5 A per channel, -40 to 70 °C, IP20.

$132.08 – $345.06Ref. price · indicative, final on quote
Siemens 6ES7222-1BH32-0XB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7222-1BH32-0XB0 — Outputs
ParameterValue
Digital outputs16
6ES7222-1BH32-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.0.5 A
Output current at signal "1" (rated)0.5 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Output voltage at signal "1" (min.)20 V DC
Residual current at signal "0", max.10 µA
Current consumption from backplane bus (5 V DC), max.140 mA
Power dissipation (typ.)2.5 W
Inductive shutdown voltage clamptyp. (L+) -48 V
Isolation between channels and backplane bus500 V AC
Isolation, channels in groups of1
6ES7222-1BH32-0XB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo; to be provided externally
Diagnostic alarmYes
6ES7222-1BH32-0XB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.50 µs
Output switching delay 1 to 0, max.200 µs
Switching frequency, lamp load, max.5 W
6ES7222-1BH32-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C
Operating temperature, horizontal mount, min.-20 °C
6ES7222-1BH32-0XB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.150 m
Cable length, shielded, max.500 m
Width45 mm
Height100 mm
Depth75 mm
Weight (approx.)220 g

Product details

The Siemens 6ES7222-1BH32-0XB0 is a 16-channel digital output module for the S7-1200 controller family. Each channel switches 24 V DC at up to 0.5 A resistive load, covering solenoid valves, pilot lamps, and small contactor coils. No onboard short-circuit protection is provided – fuse each group externally as the panel design dictates. The module requires a front connector (ordered separately) and reports diagnostic alarms for faults like wire break or blown fuse. Temperature range spans -40 to 70 °C, so this module works in freezer applications, paint booths, or unheated enclosures without derating. Vertical mounting extends the min to -20 °C, still plenty for most wash-down zones. Approvals cover cULus, CSA, FM, marine, KC, and RCM – one SKU that clears the compliance gate for most projects without relabeling.

Width 45 mm, height 100 mm, depth 75 mm. Backplane supplies 24 V DC; draws 2.5 W typical. Cable max: unshielded 150 m, shielded 500 m. IP20 – inside enclosure only.

Frequently asked questions

What's the difference between 6ES7222-1BH32-0XB0 and 6ES7223-1BL32-0XB0?

The 6ES7223 combo module adds 16 digital inputs alongside 16 outputs. The 6ES7222 is pure output only – it cannot read field devices. The wiring and I/O mapping are completely different.

Does this module include short-circuit protection?

No, external short-circuit protection must be provided – typically a fast-blow fuse or electronic circuit breaker per group of outputs.

What approvals does this module carry?

cULus, UL, CSA, FM, marine (DNV/GL/Lloyd's), KC, CE, and RCM. Suitable for global machine builds and shipboard panels.

Can I use this module in a cold storage application?

Yes, rated down to -40 °C operating. The vertical mounting limit is -20 °C, so orientation matters if the panel experiences extreme cold.
