Siemens 6ES7222-1BH32-1XB0 — Digital Output Modules

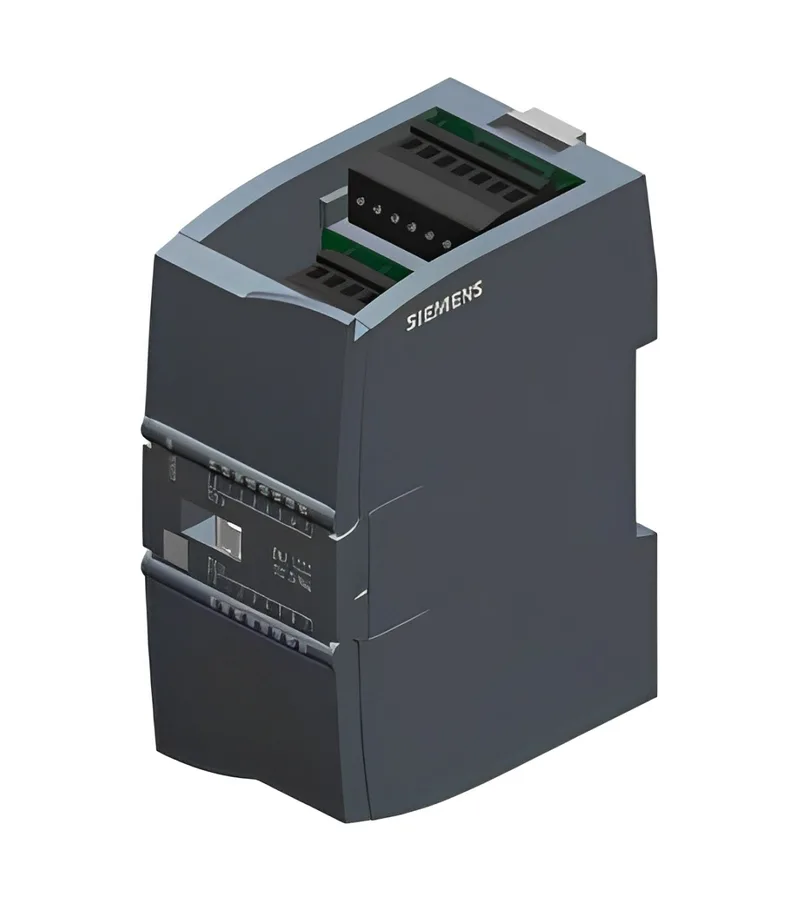

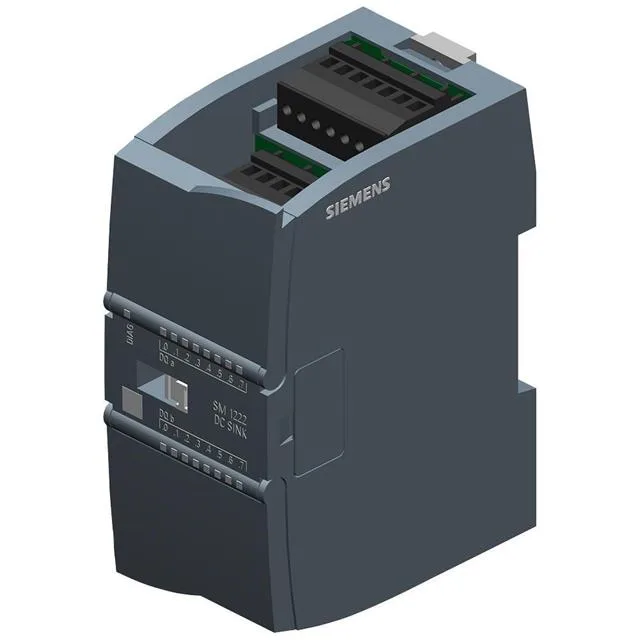

Siemens 6ES7222-1BH32-1XB0 Digital Output, 16DO 0.5A

MPN6ES7222-1BH32-1XB0
Active

Siemens S7-1200, digital output module, 6ES7222-1BH32-1XB0, 16 outputs 24 VDC 0.5 A, current-sinking.

$132.08 – $345.06Ref. price · indicative, final on quote
Siemens 6ES7222-1BH32-1XB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7222-1BH32-1XB0 — Outputs
ParameterValue
Digital outputs16
6ES7222-1BH32-1XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.0.5 A
Output current at signal "1" (rated)0.5 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Output voltage at signal "1" (min.)0,5 V
Residual current at signal "0", max.75 µA
Current consumption from backplane bus (5 V DC), max.140 mA
Power dissipation (typ.)2.5 W
Inductive shutdown voltage clampTyp 45 V
Isolation between channels and backplane bus500 V AC
Isolation, channels in groups of1
6ES7222-1BH32-1XB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo; to be provided externally
Diagnostic alarmYes
6ES7222-1BH32-1XB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.20 µs
Output switching delay 1 to 0, max.350 µs
Switching frequency, lamp load, max.5 W
6ES7222-1BH32-1XB0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C
Operating temperature, horizontal mount, min.-20 °C
6ES7222-1BH32-1XB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.150 m
Cable length, shielded, max.500 m
Width45 mm
Height100 mm
Depth75 mm
Weight (approx.)220 g

Product details

The Siemens 6ES7222-1BH32-1XB0 is a 16-point digital output module for the S7-1200 controller, rated 24 VDC and 0.5 A per channel in current-sinking configuration. Switching times are 20 µs turn-on and 350 µs turn-off, with a typical power draw of 2.5 W. Shielded cable runs up to 500 m are allowed; unshielded to 150 m. Outputs are not internally short-circuit protected — external fusing per group is required. The module requires a front connector (ordered separately).

Lifecycle & Approvals

It carries UL, cULus, CSA, CE, FM, Marine, KC, and RCM approvals. IP20 protection requires panel mounting.

Frequently asked questions

What approvals does the 6ES7222-1BH32-1XB0 carry?

It carries UL, cULus, CSA, CE, FM, Marine, KC, and RCM approvals.

What is the operating temperature range of the 6ES7222-1BH32-1XB0?

The module is rated for -40 to 70 °C.
