6ES7222-1EF22-0XA0 - Siemens
MPN6ES7222-1EF22-0XA0
Active

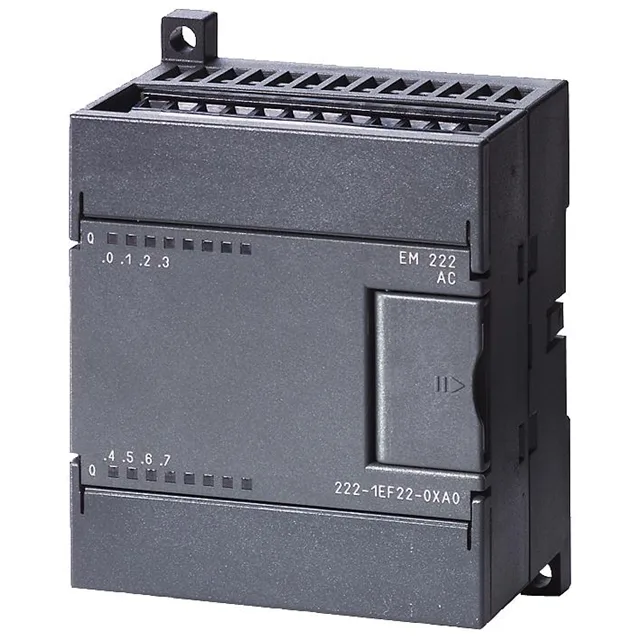

*** spare part *** SIMATIC S7-200, digital output EM 222, isolated 8 DQ, 120/230 V AC, 0.5 A
$277.86Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
Electrical
| Parameter | Value |
|---|---|
| Output current, resistive load, max. | 0.5 A |
| Output current at signal "1" (rated) | 0.5 A |
| Output voltage at signal "1" (min.) | L1 (-0.9 V) |
| Residual current at signal "0", max. | 1.8 mA; At 264 V AC |
| Current consumption from backplane bus (5 V DC), max. | 110 mA |
| Power dissipation (typ.) | 4 W |
| Inductive shutdown voltage clamp | to be provided externally (see manual package "Setting up an S7-200") |
| Isolation, channels in groups of | 1; 8 groups |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | No |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 0.5 A |
| Switching frequency, lamp load, max. | 60 W |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 150 m |
| Cable length, shielded, max. | 500 m |
| Width | 71.2 mm |
| Height | 80 mm |
| Depth | 62 mm |
| Weight (approx.) | 170 g |
MPN
6ES7222-1EF22-0XA0
