Siemens 6ES7222-1HH32-0XB0 — Digital Output Modules

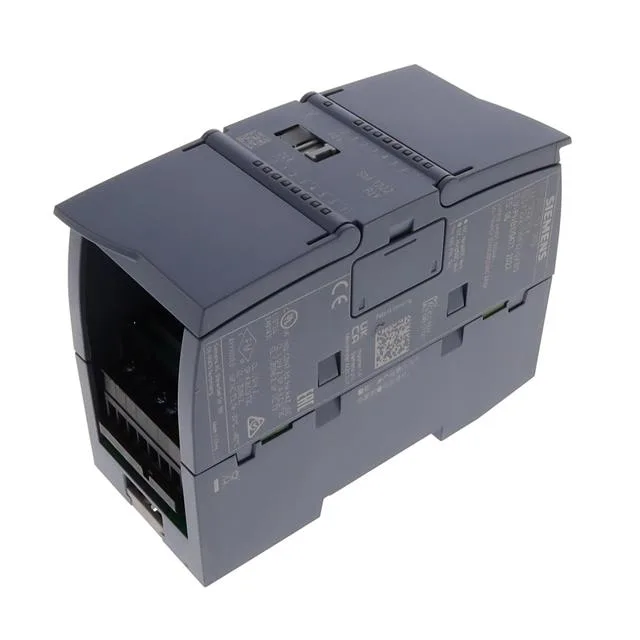

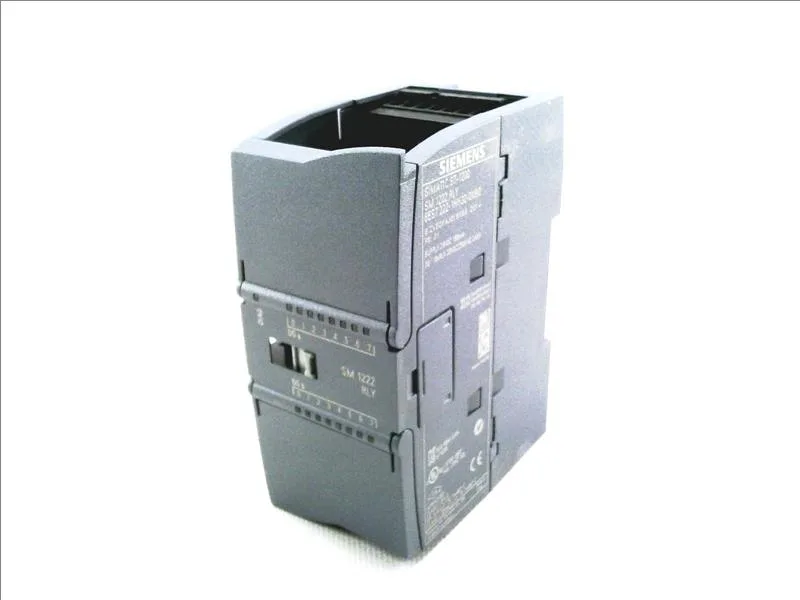

Siemens 6ES7222-1HH32-0XB0 S7-1200 16-Relay Output, 2A

MPN6ES7222-1HH32-0XB0
Active

Siemens S7-1200 16-channel relay output module, 6ES7222-1HH32-0XB0, rated 2 A per channel, 5-250 V AC / 5-30 V DC, -40 to 70 °C, IP20.

$132.08 – $345.06Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7222-1HH32-0XB0 — Outputs
ParameterValue
Digital outputs16
6ES7222-1HH32-0XB0 — Electrical
ParameterValue
Rated value (DC)5 V DC to 30 V DC
Output current, resistive load, max.2 A
Output current at signal "1" (rated)2 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Current consumption from backplane bus (5 V DC), max.135 mA
Power dissipation (typ.)8.5 W
Isolation between channelsRelays
Isolation between channels and backplane bus1 500 V AC for 1 minute
Isolation, channels in groups of4
6ES7222-1HH32-0XB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo; to be provided externally
Diagnostic alarmYes
6ES7222-1HH32-0XB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.10 ms
Output switching delay 1 to 0, max.10 ms
Switching frequency, inductive load, max.2 A
Switching frequency, lamp load, max.30 W with DC, 200 W with AC
6ES7222-1HH32-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C
Operating temperature, horizontal mount, min.-20 °C
6ES7222-1HH32-0XB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.150 m
Cable length, shielded, max.500 m
Width45 mm
Height100 mm
Depth75 mm
Weight (approx.)260 g

Product details

The 6ES7222-1HH32-0XB0: Sixteen relay outputs, each good for 2 A across 5–250 V AC or 5–30 V DC. That 2 A holds for both resistive and inductive loads; lamp loads cap at 30 W on DC, 200 W on AC. Enclosure is IP20 — no protection against liquids. Short-circuit protection isn't built in; you'll need an external fuse per channel or group.

Dropping into a combi-module slot

If your BOM was built around a 6ES7223-1PL32-0XB0 (16 inputs + 16 transistor outputs), this 6ES7222 lands in the same 45 mm-wide S7-1200 slot without mechanical changes — same backplane connector, same mounting holes. What you gain: relay isolation and higher per-channel current on the output side. What you lose: the 16 inputs. If your panel already has a separate input module upstream, this swap is clean. No need to gut the whole line; just rewire the output side for relay loads (inductive flyback protection, external fusing).

Requires a front connector (ordered separately). Shielded cable runs up to 500 m, unshielded up to 150 m. Diagnostic alarm available — useful for quick fault isolation on the line. Power loss typically 8.5 W. Broad approval set: UL, cULus, CSA, FM, Marine, KC, CE, RCM. Keep that for your quality doc control file; it covers most export routes without extra paperwork.

Frequently asked questions

What is the closest functional second-source for this relay output module?

No direct functional second-source appears among the peer MPNs. The 6ES7223-1PL32-0XB0 is a combi module (inputs + transistor outputs), not a relay output replacement. For a drop-in relay output module, this 6ES7222-1HH32-0XB0 is the specific part.

What are the operating temperature limits?

Listed range: -40 °C to 70 °C. Good for demanding thermal environments.

Will 6ES7222-1HH32-0XB0 drop into a panel wired for 6ES7223-1PL32-0XB0?

Yes, same physical footprint (45 mm wide, S7-1200 backplane). No mechanical rework needed. Functionally, note you lose the 16 inputs and gain relay outputs — ensure your wiring and load specs match relay characteristics (external fuse, inductive protection).

What approvals does this module carry?

UL, cULus, CSA, FM, Marine, KC, CE, RCM. RoHS or REACH not explicitly stated in the spec record.
