What It Is — and Why It’s Still a Good Call for a New Build

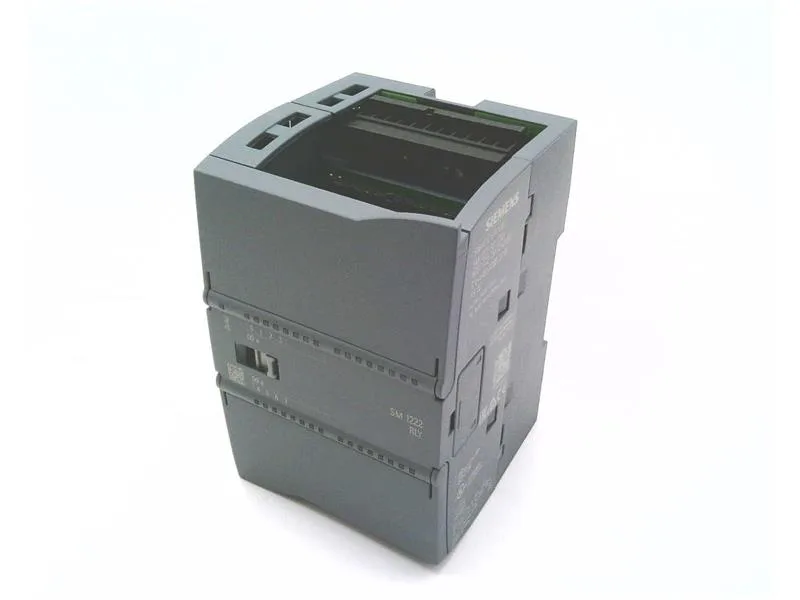

The 6ES7222-1XF32-0XB0: It swallows ambient temperatures from -40 to 70 °C, which means it’s at home in a refrigerated warehouse or a hot electrical room without forced cooling. At 5 W dissipation, it won’t cook its neighbours on the DIN rail.
Sourcing Reality — Active Production, Global Approvals
Lifecycle status is current — no NRND or EOL flags. That means factory support and firmware updates remain available. Approvals include cULus, CE, FM, KC, UL, CSA, Marine, and RCM, so it clears most regional compliance gates out of the box. No external short-circuit protection onboard — you need an inline fuse or circuit breaker per common practice. The front connector must be ordered separately.
How It Compares — Why the 6ES7223-1PL32-0XB0 Isn’t a Drop-In
The 6ES7223-1PL32-0XB0 is a mixed I/O module (digital inputs + relay outputs), not a pure output bank. Different channel count and wiring layout mean you can’t swap them without rewiring the front connector and re-mapping the I/O in TIA Portal. The 6ES7222-1XF32-0XB0 is the correct replacement for a pure 8-relay-output slot; the combination module serves a different panel design.
