8 inputs, 8 outputs — rated for the heat, not the office

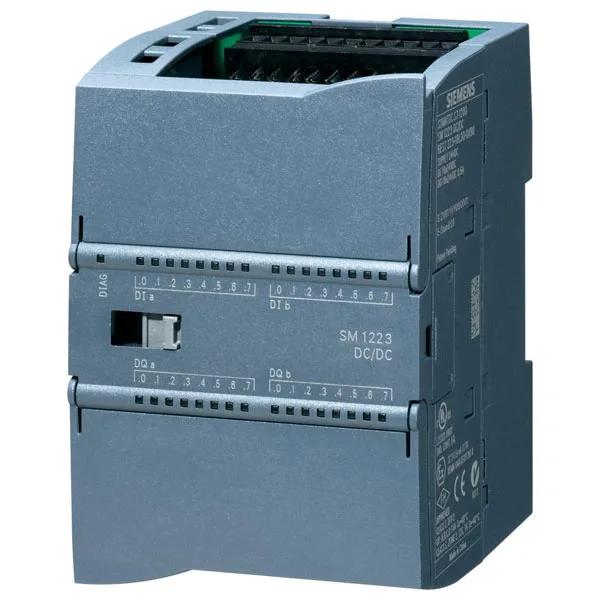

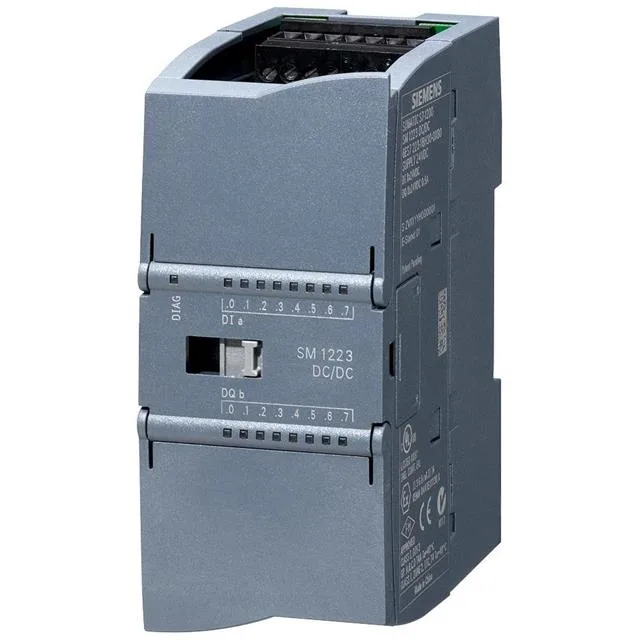

The 6ES7223-1BH32-0XB0 is a combined digital I/O module for the SIMATIC S7-1200 series, packing 8 sinking inputs at 24 V DC and 8 sourcing outputs at 24 V DC, 0.5 A per channel. The temperature range tells the real story: -40°C to 70°C ambient means this module lives in a cement plant control room or an unheated MCC building without complaint — eats the dust and runs. Input signal thresholds are set for industrial 24 V DC buses: a logic '1' at 15 V DC, 2.5 mA minimum, with a 50 µs on-delay and 200 µs off-delay. That response time is fast enough for kiln burner management and mill interlock chains where you need edge detection without false triggers from contact bounce.
Current derating and output grouping
Power loss is 2.5 W typical — low enough that you don't need forced air in a 45 mm wide DIN-rail slot. The module draws its 24 V DC from the backplane bus; no separate field supply connector needed for the inputs, though the outputs do require an external 24 V DC feed to the load side.
Approvals for export and hazardous-area panels
This module carries cULus, CE, FM, KC, UL, CSA, marine, and RCM approvals — it's ready for panels destined for North America, Europe, Korea, Australia, or marine installations. The FM approval is notable for applications requiring factory mutual certification, such as burner management systems in cement plants.
Wiring and cable length limits
Unshielded cable runs up to 150 m; shielded up to 500 m. In a cement plant where you're pulling through cable trays past VFDs and kiln drives, use shielded cable for any run over 50 m — the 500 m limit is generous but only achievable with proper shield grounding at the panel entry. The module is parameterizable — input filters, output substitute values, and diagnostic alarms can be set in TIA Portal. Diagnostic alarm support means the CPU gets a message if an output fails short or the module loses field power, which saves a trip to the panel.
