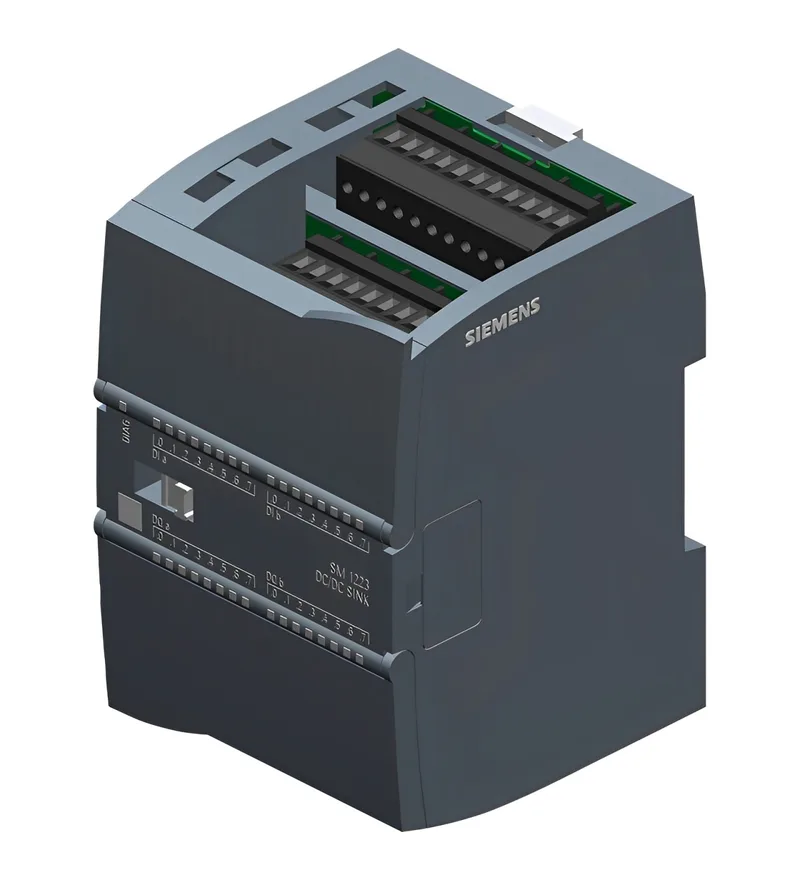

Siemens 6ES7223-1BL32-1XB0 — PLC I/O & Expansion Modules

Siemens 6ES7223-1BL32-1XB0 S7-1200 DI/DO Module, 70°C

MPN6ES7223-1BL32-1XB0
Active

Siemens S7-1200 digital I/O module, 6ES7223-1BL32-1XB0, 16 inputs, 24 VDC, -40 to 70 °C, UL/CSA/FM/Marine approved.

$204.47 – $550.76Ref. price · indicative, final on quote
Siemens 6ES7223-1BL32-1XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7223-1BL32-1XB0 — I/O
ParameterValue
Digital inputs16
Digital outputs16; Transistor current sinking
6ES7223-1BL32-1XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
For signal "1"15 V DC at 2.5 mA
For signal "0"5 V DC at 1 mA
Current for signal "1" (typ.)4 mA
Max.70 °C
Power loss (typ.)4.5 W
Current consumption from backplane bus (5 V DC), max.185 mA
Current consumption from load voltage L+ (no load), max.4 mA; per channel
Short-circuit protectionYes; 1 to 3.5 A
Isolation: channels to backplane bus500 V AC
Max. cable length, shielded500 m
Max. cable length, unshielded150 m
6ES7223-1BL32-1XB0 — Performance
ParameterValue
ParameterizableYes
Diagnostic alarmYes
6ES7223-1BL32-1XB0 — Environmental
ParameterValue
IP protection ratingIP20
Min.-40 °C
6ES7223-1BL32-1XB0 — Mechanical
ParameterValue
Height100 mm
Width70 mm
Depth75 mm
Weight (approx.)310 g
6ES7223-1BL32-1XB0 — Approvals
ParameterValue
CE markYes
6ES7223-1BL32-1XB0 — Specifications
ParameterValue
Horizontal Installation, Max.60 °C

Product details

The Siemens 6ES7223-1BL32-1XB0 is a 16-input digital I/O module for the S7-1200 system, operating on 24 VDC. Approval stack includes UL, CSA, FM, Marine (DNV/GL), KC, CE, and RCM — enough to satisfy global panel certifications without extra paperwork.

Expect full compliance paperwork: RoHS, REACH, UL file, CSA report, FM certificate, Marine type approval, and CE declaration. The housing is plastic (IP20), rated fall height 0.3 m.

Physical and electrical integration

Input thresholds: signal '1' at 15 VDC, 2.5 mA; signal '0' at 5 VDC, 1 mA. Unshielded cable runs up to 150 m; shielded up to 500 m. Switching delays: 0→1 in 20 µs, 1→0 in 350 µs. Derating note: up to 40 °C, the module can handle 16 inputs at full rated current; at 50 °C, current per input drops to 8 A. Keep that in mind for warm panels near the top of the temperature range.

Frequently asked questions

What compliance certifications does this module carry?

It holds UL, CSA, FM, Marine (DNV/GL-type), KC, CE, and RCM approvals. That covers most global panel certification requirements.

Will this module drop into a panel designed for the 6AG1223-1BL32-4XB0?

The 6ES7223 and 6AG1223 variants share the same form factor and electrical interface. The 6AG is a ruggedized SIPLUS version; the standard module fits the same rail and wiring, but confirm your ambient temperature and coating requirements against the standard module's specs.
