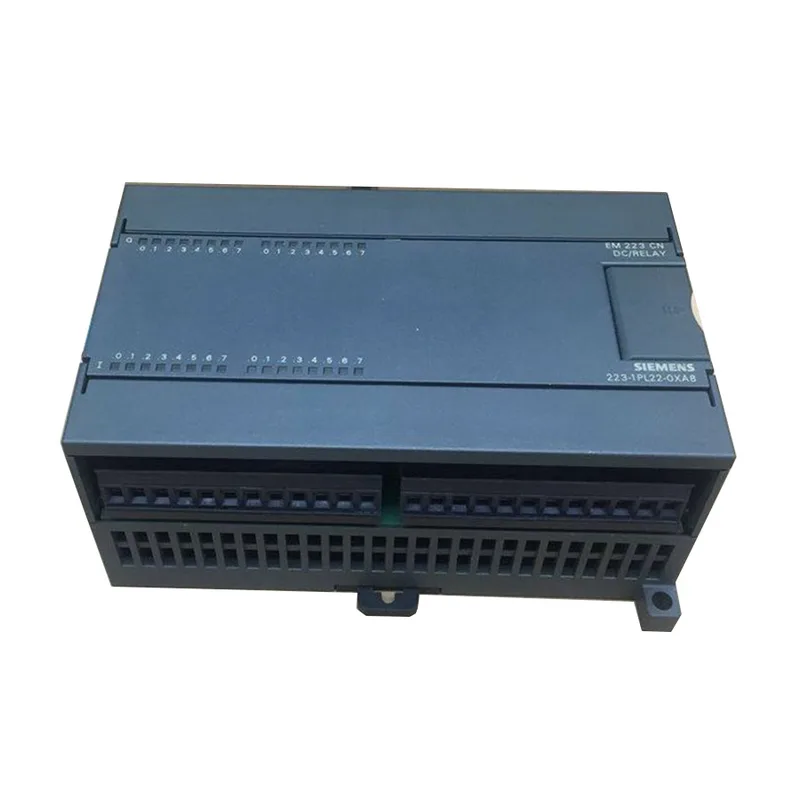

Siemens S7-200 CN EM 223 digital I/O spare part, 16 DI 24 V DC sink/source, 16 DO relay 2 A/channel, 62 mm depth, 137.5 mm width, 80 mm height, lifecycle current.
| Parameter | Value |
|---|---|
| Digital inputs | 16 |
| Digital outputs | 16; Relays |
| Parameter | Value |
|---|---|
| Current for signal "1" (typ.) | 4 mA |
| Power loss (typ.) | 6 W |
| Short-circuit protection | No |
| Parameter | Value |
|---|---|
| Height | 80 mm |
| Width | 137.5 mm |
| Depth | 62 mm |
| Parameter | Value |
|---|---|
| Type of input voltage | DC |
| For signal "1" rated value | 2 000 mA |

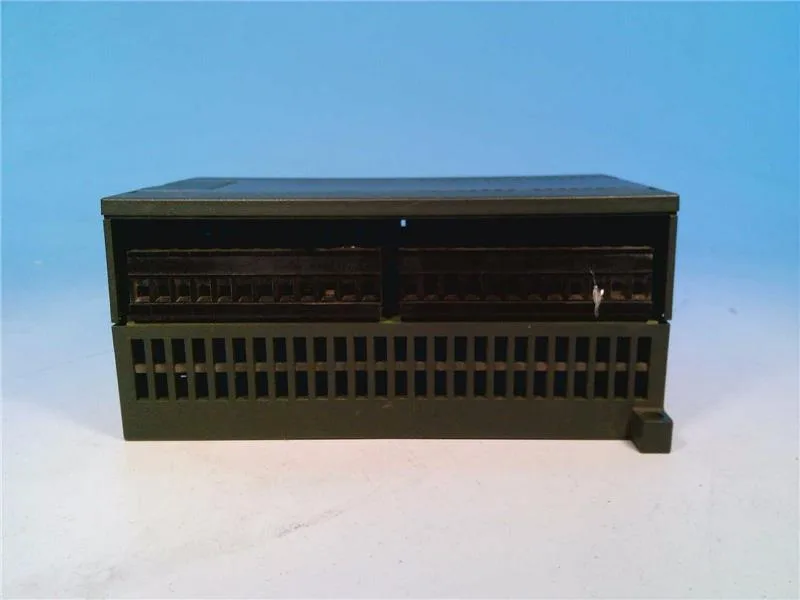

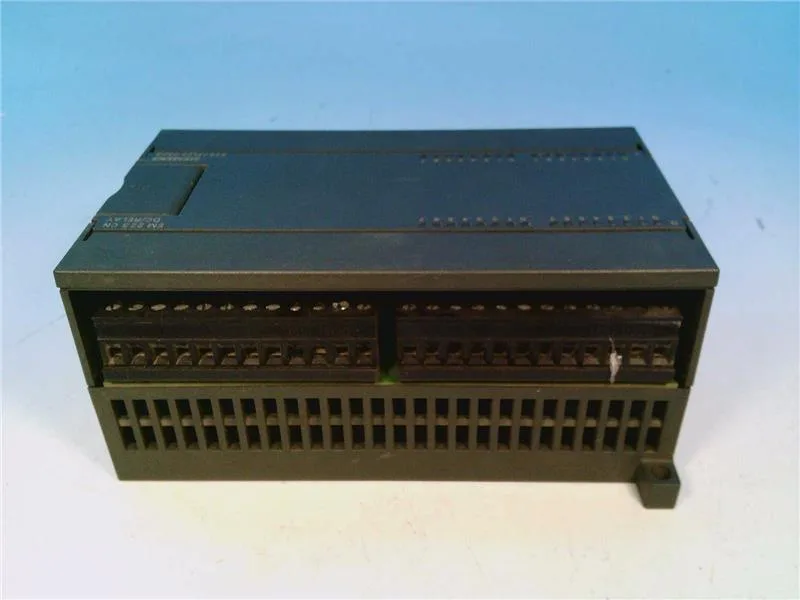

The 6ES7223-1PL22-0XA8: Depth 62 mm, width 137.5 mm, height 80 mm. Typical S7-200 footprint — clips onto the DIN rail beside the CPU. Power dissipation 6 W, so no forced air needed in a standard cabinet. Relay outputs share a common group; plan external short-circuit protection (none onboard).
Depth 62 mm, width 137.5 mm, height 80 mm. It occupies the same rack space as standard S7-200 expansion modules.
No. The ET 200SP module (6ES7148-4FA00-0AB0) is 90×65×130 mm and uses a different backplane bus technology. Rewiring and panel rework would be needed.
