Siemens 6ES7223-1PM22-0XA8 — PLC I/O & Expansion Modules

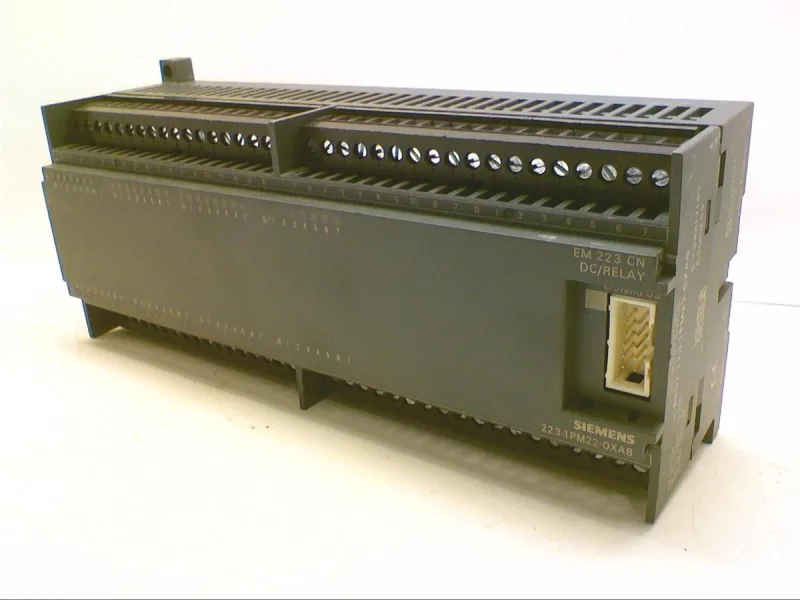

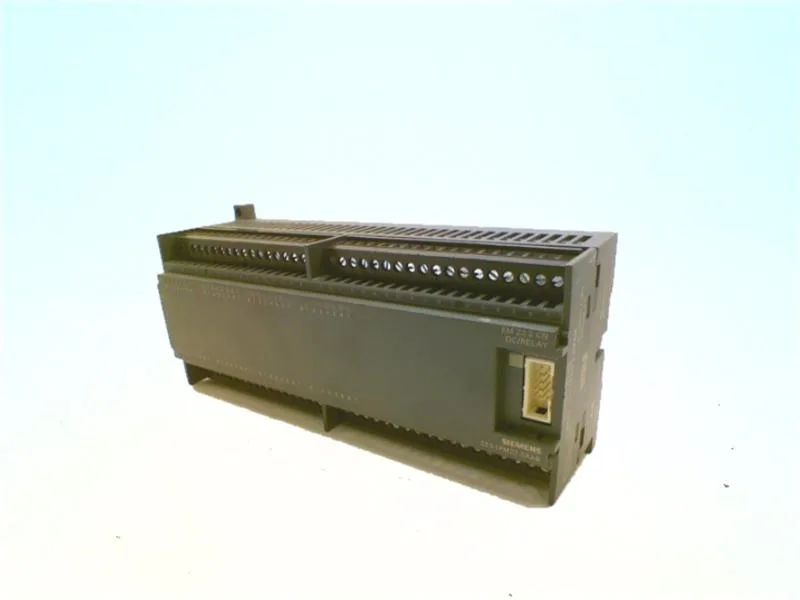

Siemens 6ES7223-1PM22-0XA8 Digital I/O Module, 32DI/32DO Rel

MPN6ES7223-1PM22-0XA8

Siemens SIMATIC S7-200 CN, Digital I/O EM 223, 6ES7223-1PM22-0XA8, 32 DI 24 V DC, 32 DO relay, 2 A/channel, width 196 mm, spare part only for S7-22X CPUs.

$1,164.25Ref. price · indicative, final on quote
Siemens 6ES7223-1PM22-0XA8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7223-1PM22-0XA8 — I/O
ParameterValue
Digital inputs32
Digital outputs32; Relays
6ES7223-1PM22-0XA8 — Electrical
ParameterValue
Current for signal "1" (typ.)4 mA
Power loss (typ.)13 W
Short-circuit protectionNo
6ES7223-1PM22-0XA8 — Mechanical
ParameterValue
Height80 mm
Width196 mm
Depth62 mm
6ES7223-1PM22-0XA8 — Other specifications
ParameterValue
Type of input voltageDC
For signal "1" rated value2 000 mA

Product details

Panel fit and I/O density

The 6ES7223-1PM22-0XA8: The physical footprint is 62 mm deep, 196 mm wide, and 80 mm tall. That 196 mm width dominates panel layout — it is roughly three times wider than the 16-input/16-output variant (6ES7223-1PL32-0XB0 at 70 mm). A panel grommet or gland plate sized for the narrower sibling will not accept this module without a DIN-rail reposition.

Comparison with 6ES7223-1PL32-0XB0

The closest same-series sibling is 6ES7223-1PL32-0XB0: a 16-input, 16-relay-output at 70 mm wide with multiple global approvals (cULus, FM, KC, CSA, RCM). It supports 10 ms max response, diagnostic alarm, and parameterization.

Frequently asked questions

What compliance documentation does this module provide?

Per the manufacturer description, this S7-200 CN product only has CE approval. No UL, CSA, FM, KC, or other marks are listed.

MPN
6ES7223-1PM22-0XA8
