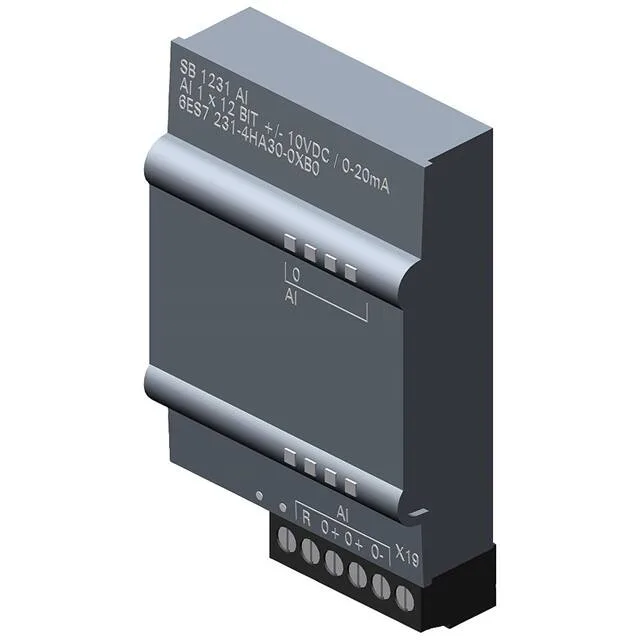

Siemens 6ES7231-4HA30-0XB0 — Analog Input Modules

Siemens 6ES7231-4HA30-0XB0 Analog Input, -40..70°C

MPN6ES7231-4HA30-0XB0

Active

Siemens S7-1200 analog input module, 6ES7231-4HA30-0XB0, 0-20 mA & ±10V/±5V/±2.5V, -40 to 70 °C, 0.4 W, cULus/CE/FM/Marine.

$53.49 – $129.00Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7231-4HA30-0XB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7231-4HA30-0XB0 — Inputs & Signal Ranges
Parameter	Value
Number of analog inputs	1; Current or voltage differential inputs
Current input range	Yes; 0 to 20 mA
Voltage input range	Yes; ±10V, ±5V, ±2.5V
Resistance measuring ranges	No
RTD support (resistance thermometer)	No
Thermocouple support (types)	No
Input range: 0 to 20 mA	Yes
Input range: -10 to +10 V	Yes
Input range: -5 to +5 V	Yes
Input resistance (0 to 20 mA)	≥ 250 Ohm
Input resistance (-10 to +10 V)	≥9 MOhm
Permissible input voltage, max. (destruction limit)	35 V
Permissible input current, max. (destruction limit)	40 mA
Max. shielded signal cable length	100 m; shielded, twisted pair

6ES7231-4HA30-0XB0 — Measurement Performance
Parameter	Value
Resolution (bit incl. sign), max.	11 bit; + sign
Measurement principle	integrating
Temperature measurement error (±)	25 °C ±0.3%, to 55 °C ±0.6% total measurement range
Interference voltage suppression (at interference frequency)	40 dB, DC to 60 Hz

6ES7231-4HA30-0XB0 — Diagnostics & Monitoring
Parameter	Value
Wire-break detection	No
Diagnostic alarm	Yes
Diagnostics function	Yes

6ES7231-4HA30-0XB0 — Power
Parameter	Value
Rated value (DC)	24 V
Power loss, typ.	0.4 W

6ES7231-4HA30-0XB0 — Environmental
Parameter	Value
Operating temperature, horizontal mounting, max.	60 °C
Operating temperature, horizontal mounting, min.	-20 °C
Operating temperature, vertical mounting, max.	50 °C
Operating temperature, vertical mounting, min.	-20 °C

6ES7231-4HA30-0XB0 — Mechanical
Parameter	Value
Required front connector	Yes
Width	38 mm
Height	62 mm
Depth	21 mm
Weight, approx.	35 g

Product details

Siemens 6ES7231-4HA30-0XB0 is an S7-1200 analog input module that handles 0-20 mA and ±10V, ±5V, ±2.5V signals. Rated for -40 to 70 °C ambient, draws 0.4 W from the backplane. Approvals include cULus, CE, FM, KC, UL, CSA, Marine — covers most plant-floor compliance needs.

Temperature range and environment

The -40 °C minimum means it lives in cold storage areas or outdoor enclosures without a heater. The 70 °C maximum handles summer panel temps in a NEMA 4X box. No derating curve needed within that span for this module.
