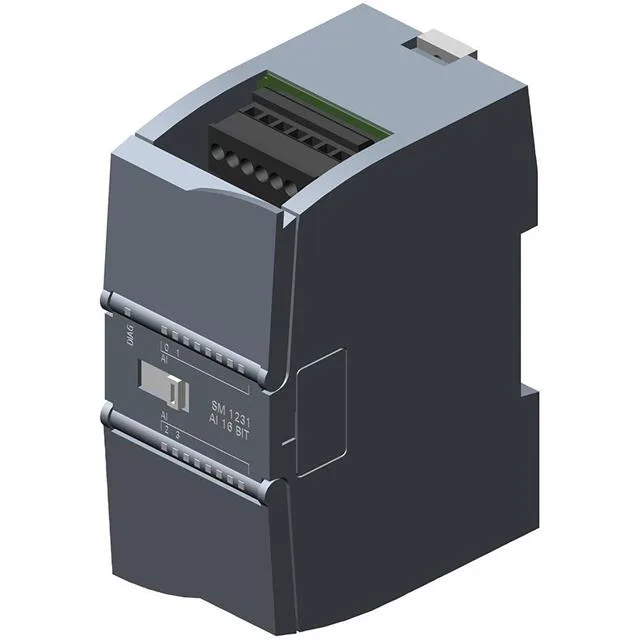

Siemens S7-1200 analog input module, 6ES7231-5ND32-0XB0, 4-20 mA / 0-20 mA / ±10V / ±5V / ±2.5V / ±1.25V, 24 V DC, 1.8 W, 45 x 100 x 75 mm.
| Parameter | Value |
|---|---|
| Number of analog inputs | 4; Current or voltage differential inputs |
| Current input range | Yes; 4 to 20 mA, 0 to 20 mA |
| Voltage input range | Yes; ±10V, ±5V, ±2.5V or ±1.25V |
| Resistance measuring ranges | No |
| RTD support (resistance thermometer) | No |
| Thermocouple support (types) | No |
| Input range: 0 to 20 mA | Yes |
| Input range: 4 to 20 mA | Yes |
| Input range: -10 to +10 V | Yes |
| Input range: -5 to +5 V | Yes |
| Input resistance (-10 to +10 V) | ≥1 MOhm |
| Permissible input voltage, max. (destruction limit) | ±35 V |
| Permissible input current, max. (destruction limit) | 40 mA |
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 15 bit; + sign |
| Temperature measurement error (±) | 25 °C ±0.1% / ±0.3% total measurement range |
| Voltage measurement error (±) | 0.1 % |
| Current measurement error (±) | 0.1 % |
| Interference voltage suppression (at interference frequency) | 40 dB, DC to 60 V for interference frequency 50 / 60 Hz |
| Common-mode voltage, max. | 12 V |
| Parameter | Value |
|---|---|
| Wire-break detection | Yes |
| Diagnostic alarm | Yes |
| Diagnostics function | Yes |
| Supply voltage monitoring | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 1.8 W |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mounting, max. | 60 °C |
| Operating temperature, horizontal mounting, min. | -20 °C |
| Operating temperature, vertical mounting, max. | 50 °C |
| Operating temperature, vertical mounting, min. | -20 °C |
| Parameter | Value |
|---|---|
| Required front connector | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 180 g |
The Siemens 6ES7231-5ND32-0XB0 is an analog input module for the S7-1200 PLC family, accepting current signals (4 to 20 mA, 0 to 20 mA) and voltage signals (±10V, ±5V, ±2.5V, ±1.25V) on a single channel. It draws 1.8 W typical from the 24 V DC backplane supply. The module includes parameterizable diagnostics: diagnostic alarm, wire-break detection, and configurable high/low/medium step thresholds for maintenance alerts.
It accepts 4 to 20 mA, 0 to 20 mA current signals, and ±10V, ±5V, ±2.5V, ±1.25V voltage signals. All ranges are parameterizable via the engineering software.
It carries cULus, CE, CSA, FM, UL, KC, and marine approvals — suitable for North American, European, Korean, and marine applications.
