Siemens 6ES7231-5PD32-0XB0 — Analog Input Modules

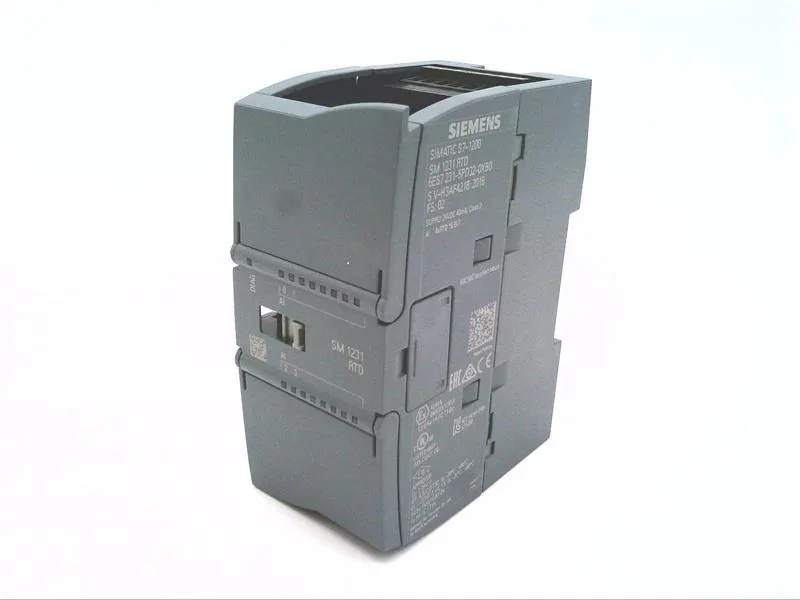

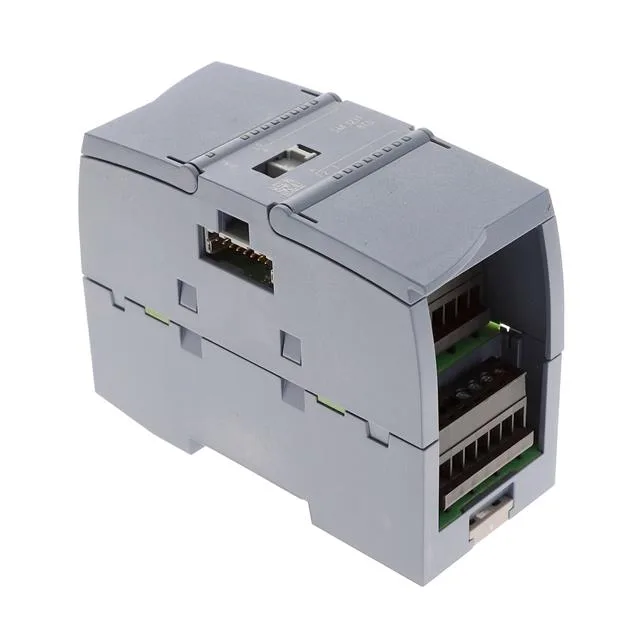

Siemens 6ES7231-5PD32-0XB0 RTD Module, 8 Ch, -40/70°C

MPN6ES7231-5PD32-0XB0
Active

Siemens S7-1200 RTD input module, 6ES7231-5PD32-0XB0, 8 channels, Pt100/Ni100/Cu10, -40 to 70 °C, cULus/CE/FM/Marine approvals.

$234.95 – $630.39Ref. price · indicative, final on quote
Siemens 6ES7231-5PD32-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7231-5PD32-0XB0 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs4; Resistance thermometer
Current input rangeNo
Voltage input rangeNo
Resistance measuring rangesYes; 150 Ω, 300 Ω, 600 Ω
RTD support (resistance thermometer)Yes; Resistance-type transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000
Thermocouple support (types)No
Input range: 0 to 600 OhmYes
RTD type: Pt100Yes
RTD type: Pt200Yes
Permissible input voltage, max. (destruction limit)±35 V
6ES7231-5PD32-0XB0 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.15 bit; + sign
Measurement principleintegrating
Temperature measurement error (±)25 °C ±0.1%, to 55 °C ±0.2% total measurement range
Interference voltage suppression (at interference frequency)85 dB at 50 / 60 / 400 Hz
Common-mode interference suppression, min.120 dB
6ES7231-5PD32-0XB0 — Diagnostics & Monitoring
ParameterValue
Wire-break detectionYes
Diagnostic alarmYes
Diagnostics functionYes; Can be read out
Supply voltage monitoringYes
6ES7231-5PD32-0XB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss, typ.1.5 W
6ES7231-5PD32-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C
Operating temperature, horizontal mounting, min.-20 °C
Operating temperature, vertical mounting, max.50 °C
Operating temperature, vertical mounting, min.-20 °C
6ES7231-5PD32-0XB0 — Mechanical
ParameterValue
Required front connectorYes
Width45 mm
Height100 mm
Depth75 mm
Weight, approx.220 g

Product details

What's in the box

The Siemens 6ES7231-5PD32-0XB0 is an eight-channel RTD input module for the S7-1200 controller, supporting Pt100, Ni100, Cu10, and resistance measurement up to 600 ohms with wire-break detection and diagnostic alarm. Certified cULus, CE, FM, KC, UL, CSA, and Marine — one module that covers the approval sheet for machinery export or maritime use.

Panel fit

No parameterizable settings (fixed function), but diagnostic alarm and wire-break are enabled out of the box. No thermocouple or voltage/current inputs — this module is strictly RTD and resistance measurement across three ranges: 0–150 Ω, 0–300 Ω, 0–600 Ω.
