Siemens 6ES7232-0HB00-0XA0

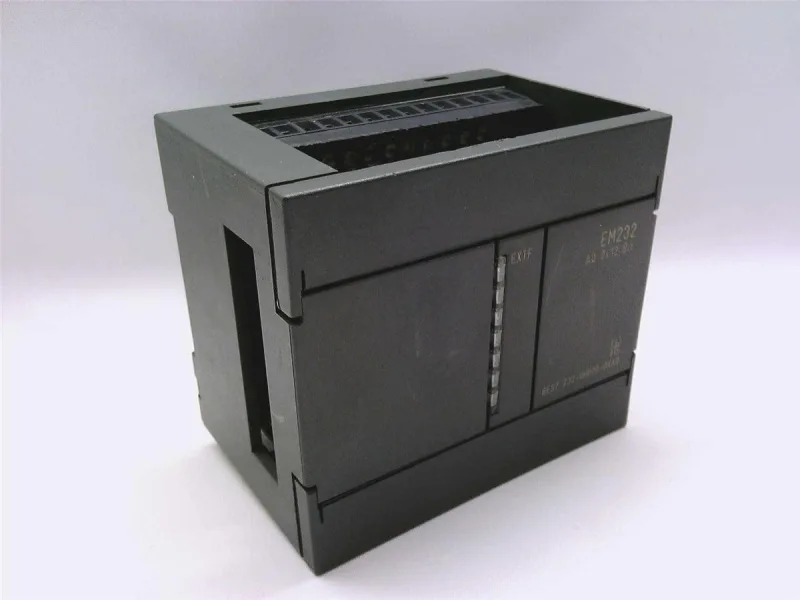

Siemens 6ES7232-0HB00-0XA0 Analog Output EM232, 2 Ch, 12-bit

MPN 6ES7232-0HB00-0XA0

Siemens SIMATIC S7-200 Analog Output EM232, 6ES7232-0HB00-0XA0, 2 non-isolated channels, ±10 V or 0-20 mA, 12-bit resolution, product to be discontinued.

$452.12 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7232-0HB00-0XA0 specifications
ParameterValue
Weight0.24 kgs

Product details

Output configuration and S7-200 fit

The Siemens 6ES7232-0HB00-0XA0 is an Analog Output EM232 expansion module for the SIMATIC S7-200 family, providing two non-isolated channels configurable for either ±10 V or 0-20 mA output with 12-bit resolution. It snaps onto the S7-200 CPU bus directly — no separate backplane or cabling — and the 12-bit resolution (4096 counts over the full-scale range) gives you roughly 4.9 mV per LSB on the voltage output or 4.9 µA per LSB on the current loop, provided the downstream load respects the drive limits of the output amplifier.

Discontinuation and sourcing reality
