Single analog output, dual range

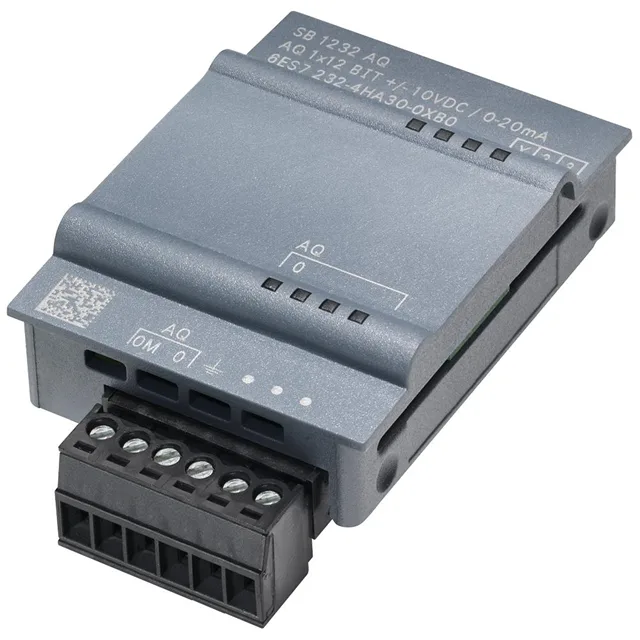

The 6ES7232-4HA30-0XB0: One analog output channel configurable for 0 to 20 mA or -10 V to +10 V — covers the two standard process signals without needing a separate signal conditioner. With current outputs the maximum load is 600 Ω; with voltage outputs the minimum load is 1000 Ω — stay within these to keep the output in regulation. Cycle time depends on load: voltage output settles in 300 µS (resistive) or 750 µS with 1 µF capacitive load; current output takes 600 ms with 1 mH inductive load and 2 ms with 10 mH — factor this into the loop update rate if driving a slow-acting valve or actuator.
Temperature range and mounting orientation
Rated for -40 °C to 70 °C ambient, but derating applies by orientation: horizontal installation max 60 °C, vertical installation max 50 °C — plan the cabinet air flow accordingly if the module sits above a heat source. Typical power loss is only 1.5 W, so it won't drive up the internal cabinet temperature noticeably even in a dense S7-1200 rack.
Compliance and approvals
Carries cULus, CE, FM, KC, UL, CSA, marine, and RCM approvals — accepted in North America, Europe, Korea, and marine-class installations without additional agency review.
