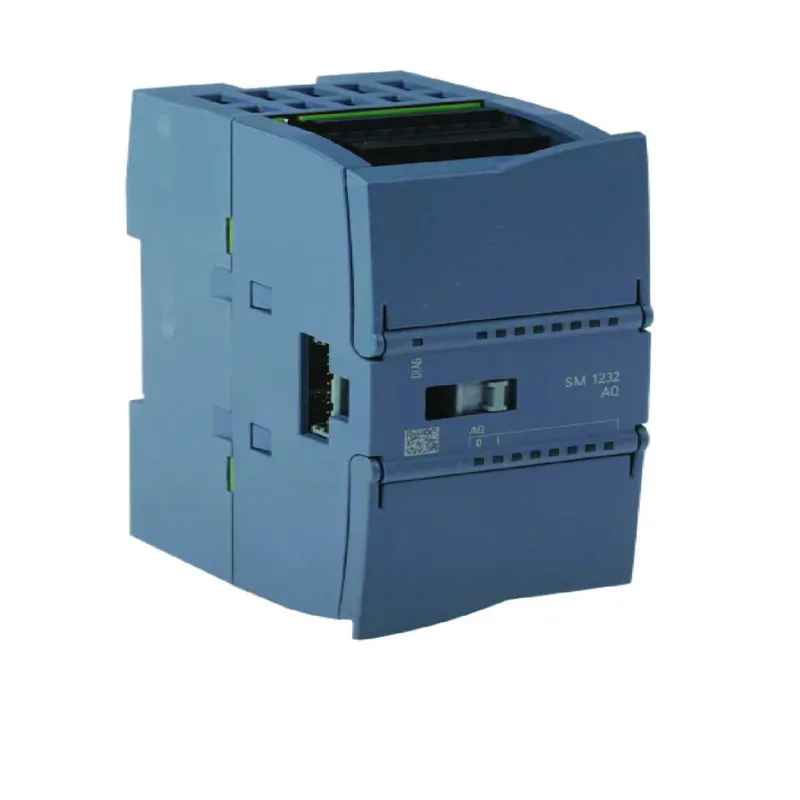

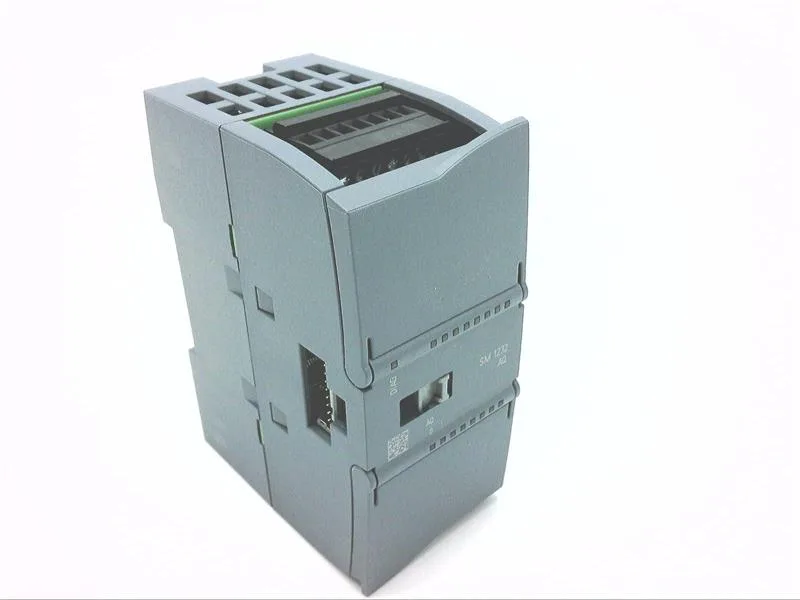

Siemens 6ES7232-4HB32-0XB0 — Analog Output Modules

Siemens 6ES7232-4HB32-0XB0 Analog Output Module, 2 AO, Curre

MPN6ES7232-4HB32-0XB0
Active

Siemens S7-1200 analog output module, type 6ES7232-4HB32-0XB0, 2 channels, current (0-20 mA) or voltage (-10 V to +10 V), -40 to 70 °C, IP20, cULus, CE.

$179.07 – $477.77Ref. price · indicative, final on quote
Siemens 6ES7232-4HB32-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7232-4HB32-0XB0 — Outputs
ParameterValue
Number of analog outputs2; Current or voltage
Output range: -10 V to +10 VYes
Output range: 0 to 20 mAYes
Load resistance, current outputs, max.600 Ω
Load resistance, voltage outputs, min.1 000 Ω
Cable length, shielded, max.100 m; shielded, twisted pair
6ES7232-4HB32-0XB0 — Performance
ParameterValue
Resolution (incl. sign, with overrange), max.14 bit; Voltage: 14 bit; Current : 13 bit
Error, voltage output (rel. to output range)0.3 %
Error, current output (rel. to output range)0.3 %
Temperature error (rel. to output range)25 °C ±0.3%, to 55 °C ±0.6% total measurement range
6ES7232-4HB32-0XB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss (typ.)1.5 W
6ES7232-4HB32-0XB0 — Diagnostics
ParameterValue
Supply voltage monitoringYes
Diagnostics functionYes
Diagnostic interrupt/alarmYes
Wire-break detection (current outputs)Yes
Short-circuit detection (voltage outputs)Yes
6ES7232-4HB32-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C
Operating temperature, horizontal mounting, min.-20 °C
Operating temperature, vertical mounting, max.50 °C
Operating temperature, vertical mounting, min.-20 °C
Temperature, max.70 °C
Temperature, min.-40 °C
6ES7232-4HB32-0XB0 — Mechanical
ParameterValue
Front connector requiredYes
Width45 mm
Height100 mm
Depth75 mm

Product details

The IP20 enclosure keeps wiring and electronics protected against incidental contact. Power draw is a typical 1.5 W from the 24 V DC backplane, and the module draws 45 mA typical. With current outputs, the maximum load is 600 Ω; with voltage outputs, the minimum load is 1 000 Ω.

Global approvals are already on record: cULus, CE, FM, KC, UL, CSA, Marine, and RCM. No additional recertification work is needed for panels destined for North America, Europe, or Asia-Pacific markets.

Integration Notes

Requires a front connector (sold separately). Shielded twisted-pair cable runs up to 100 m.

Frequently asked questions

What approvals does this module carry?

It carries cULus, CE, FM, KC, UL, CSA, Marine (for shipboard use), and RCM (formerly C-TICK) approvals.

What temperature range is the module rated for?

Operating ambient from -40 °C to 70 °C. Storage/transport range is wider: -40 °C to 70 °C (same as operating per the evidence).

What is the maximum cable length for analog outputs?

100 m when using shielded, twisted-pair cable.

MPN
6ES7232-4HB32-0XB0
