6ES7241-1CH32-0XB0
MPN6ES7241-1CH32-0XB0
Active

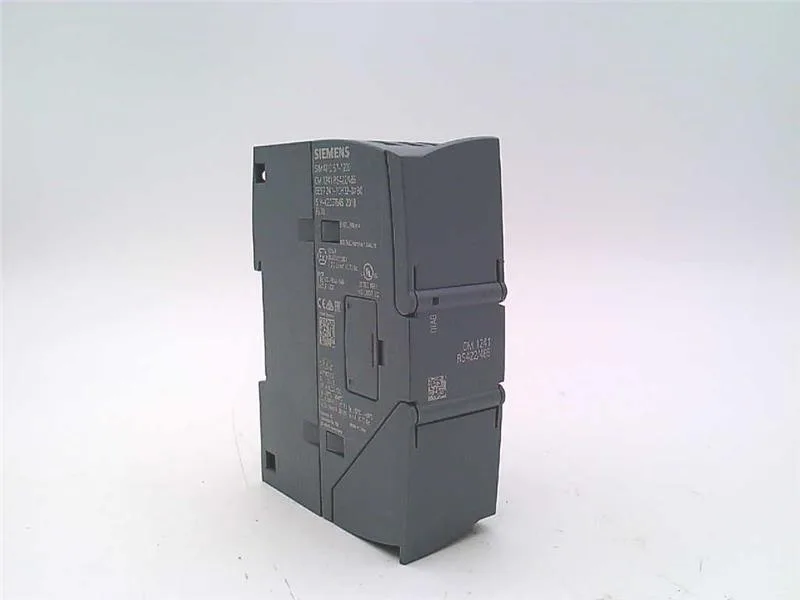

SIMATIC S7-1200, Communication module CM 1241, RS422/485, 9-pole D-sub (socket) supports Freeport
$102.87 – $253.48Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Communication
| Parameter | Value |
|---|---|
| Diagnostics function | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Current consumption, max. | 220 mA; From backplane bus 5 V DC |
| Power loss (typ.) | 1.1 W |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| IP protection degree | IP20 |
| Operating temperature, horizontal install, min. | -20 °C |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | -20 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 30 mm |
| Height | 100 mm |
| Depth | 75 mm |
MPN
6ES7241-1CH32-0XB0
