Siemens SIMATIC S7-1200 SM1278 IO-Link Master, 4xIO-Link, 24 V DC, 1 W typ. power loss, IP20, 45 x 100 x 75 mm.
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Max. | 70 °C |
| Power loss (typ.) | 1 W |
| Parameter | Value |
|---|---|
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| IP protection rating | IP20 |
| Min. | -40 °C |
| Parameter | Value |
|---|---|
| Height | 100 mm |
| Width | 45 mm |
| Depth | 75 mm |
| Weight (approx.) | 150 g |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Parameter | Value |
|---|---|
| Horizontal Installation, Max. | 60 °C |

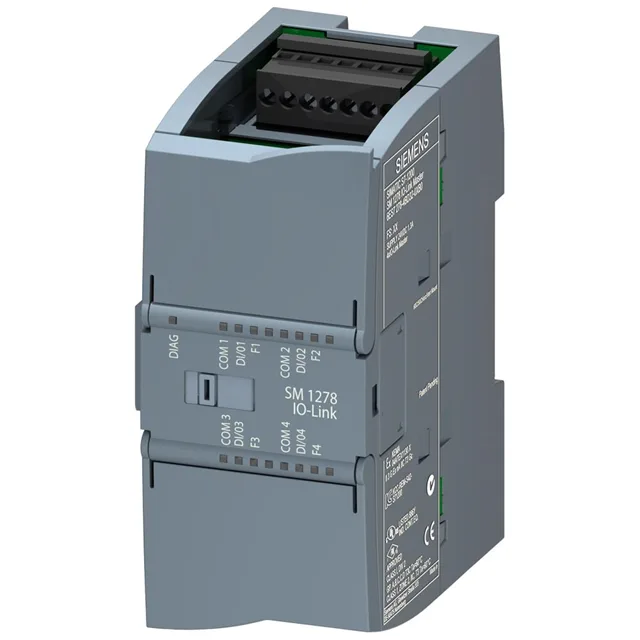

The Siemens 6ES7278-4BD32-0XB0 is a SIMATIC S7-1200 SM1278 IO-Link master module providing four IO-Link master channels.
It requires a front connector (ordered separately) and occupies a single S7-1200 signal module slot.
It holds cULus, UL, CSA, CE, FM, KC, Marine, and RCM approvals, making it suitable for panels destined for North America, Europe, Korea, and marine environments.
