Siemens 6ES7288-1CR60-0AA1 — DIN Rail Power Supplies

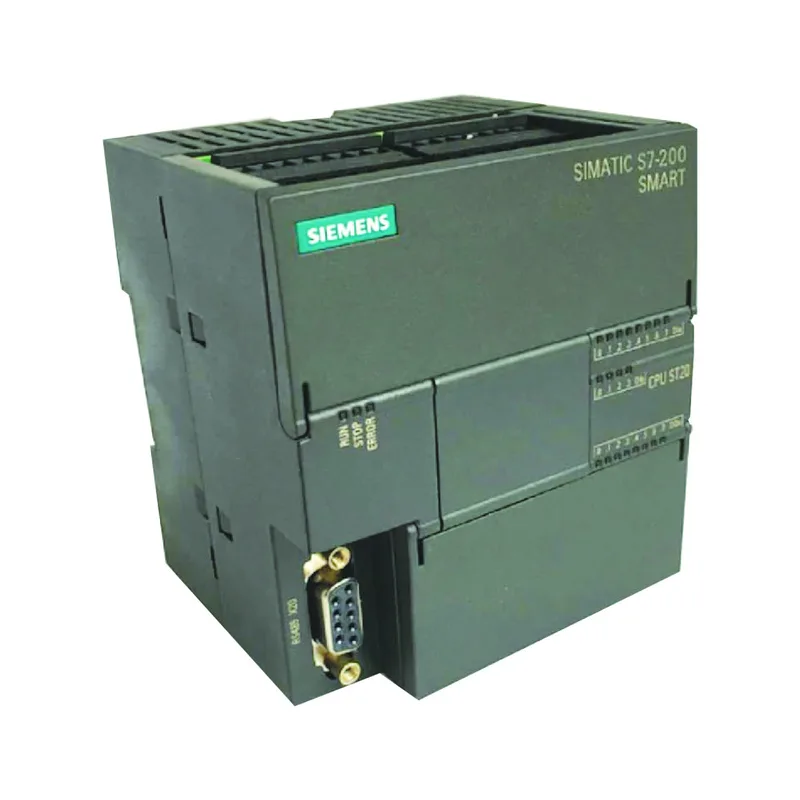

Siemens 6ES7288-1CR60-0AA1 S7-200 SMART CPU, 230 V AC, RS-48

MPN6ES7288-1CR60-0AA1

Siemens S7-200 SMART CPU, 6ES7288-1CR60-0AA1, 230 V AC / 24 V DC supply, RS-485, DIN rail, CE.

$197.00Ref. price · indicative, final on quote
Siemens 6ES7288-1CR60-0AA1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7288-1CR60-0AA1 key specifications
ParameterValue
TypeSoftware clock
InterfaceRS 485 (max. 187.5 kbps)
Type of memoryDDR
Type of input voltageDC
Test voltage at air discharge8 kV
Test voltage on supply cables2 kV
Test voltage at contact discharge4 kV
Test voltage on signal cables >30m2 kV
Inrush current, max.16.3 A; at 264 V
Current consumption, max.150 mA; At 220 V AC
Current consumption (rated value)100 mA; At 220 V AC
Interference emission via line (AC current cables)EN 61000-6-4, interference emission: Intended for use in industrial areas.

All specifications

6ES7288-1CR60-0AA1 additional specifications
ParameterValue
For signal "0", max. (Permissible quiescent current)1 mA
Power loss, max.10 W; max.
Integrated power supplyNo
Frequency range of the RF radiation10 V/m for 80 MHz ~ 1 GHz, 3 V/m for 1.4 GHz ~ 2 GHz, 3 V/m for 87 MHz ~ 108 MHz, 174 MHz ~ 230 MHz, 470 MHz ~ 790 MHz, 1.4 GHz ~ 2 GHz, 1 V/m for 2 GHz ~ 2.7 GHz
IP degree of protectionIP20
Optical interfaceNo
Number of RS 485 interfaces1
Supports protocol for PROFINET IONo
Number of industrial ethernet interfaces0
Rail mountingYes; Standard - DIN rail
Installation altitude, max.2 000 m
Installation altitude, min.-1 000 m
Vertical installation, max.45 °C
Vertical installation, min.0 °C
Horizontal installation, max.55 °C
Horizontal installation, min.0 °C
Design of the connection9-pin sub D socket
Depth81 mm
Width175 mm
Height100 mm
Weight, approx.605 g; approx.
Fall height, max.0.5 m; five times, in product package
CE markYes
FBDYes
LADYes
RAMYes
STLYes
Max.70 °C
Min.-40 °C
FlashYes
RS 485Yes
TCP (IP)No
120 v ACYes; 85 to 132 V AC
230 v ACYes; 170 to 264 V AC
IsolatedYes; 500 V AC or 707 V DC
PROFIBUSNo
For signal "0"< 5 V DC
For signal "1"+15 to +30 V
Shielded, max.500 m
ParameterizableYes
"0" to "1", max.10 ms; max.
"1" to "0", max.10 ms; max.
Rated value230 V; 230 V AC (L1, N)
Unshielded, max.150 m
Micro memory cardNo
Source (sink input)Yes
On lamp load, max.30 W; 30 W with DC, 200 W with AC
At "0" to "1", max.12.8 ms
At "0" to "1", min.0.2 ms
Programming packageSTEP 7 Micro/WIN SMART
For signal "1", typ.4 mA
Number of relay outputs24
Storage (transport, max.)1 080 hPa
Storage (transport, min.)660 hPa
For bit operations, typ.150 ns; / instruction
Number of digital inputs36; Integrated
For word operations, typ.1.2 µs; / instruction
Number of digital outputs24; Relays
With resistive load, max.2 A
Hardware clock (real-time)No
Reverse polarity protectionNo
Permissible range, lower limit47 Hz
Permissible range, upper limit63 Hz
Number of operating cycles, max.100 000; mechanically 10 million, at rated load voltage 100 000
For floating point arithmetic, typ.3.6 µs; / instruction
Limit class a, for use in industrial areasYes; EN 61000-6-4, interference emission: Intended for use in industrial areas.
Operation at 25 °C without condensation, max.95 %
Of the pulse outputs, with resistive load, max.1 Hz
Of which inputs usable for technological functions4; HSC: 4 @ 100 kHz single phase, 2 @ 50 kHz A/B phase

Product details

RS-485 and signal integrity

The 6ES7288-1CR60-0AA1: The lone serial interface is RS-485 at up to 187.5 kbps — no PROFIBUS, no TCP/IP on this CPU. Shielded runs can go 500 m; unshielded, keep it under 150 m. Input thresholds: signal "0" below 5 V DC, "1" from +15 to +30 V. That 10 V deadband between 5 and 15 V is your noise margin — if you're seeing phantom bits on a long run, check the shield first. The RS-485 port is parameterizable, so you can match the baud rate to the rest of the daisy chain.

Frequently asked questions

What programming languages does this CPU support?

It supports LAD (ladder), FBD (function block diagram), STL (statement list), and RAM-based logic. All four are listed as supported.

Does it have an RS-485 port?

Yes, one RS-485 interface, max 187.5 kbps, parameterizable. Shielded cable max 500 m, unshielded max 150 m.
