Overview
The module draws 1.5 W from a 24 V DC supply (-15 / +20 %), measures 45 x 100 x 81 mm, weighs 147 g, and is rated IP20. It carries CE marking.

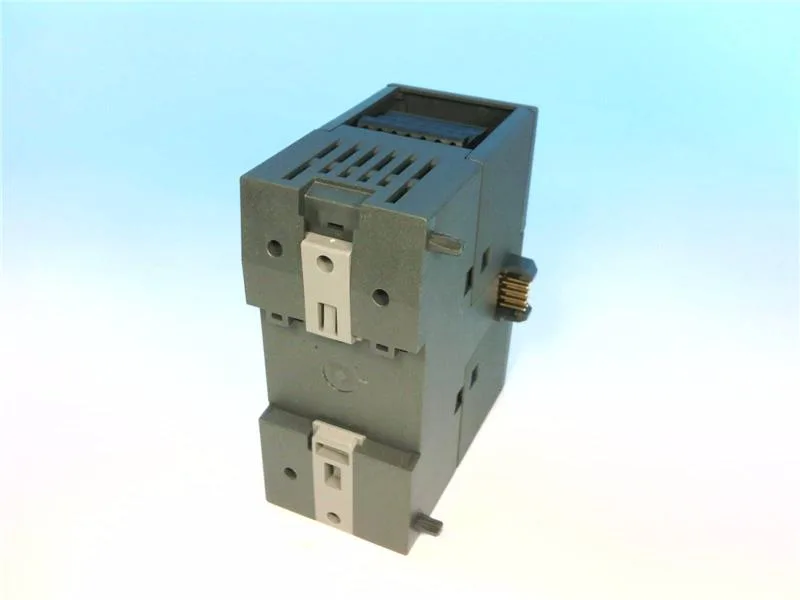

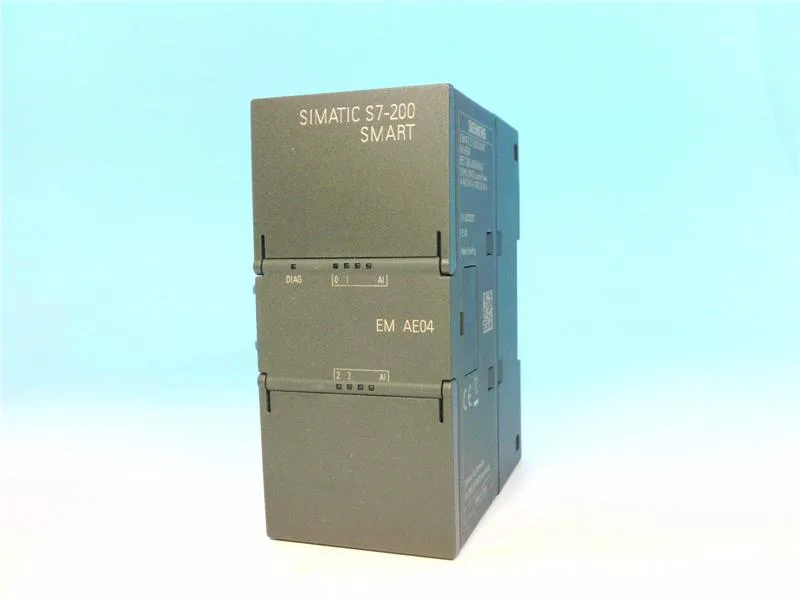

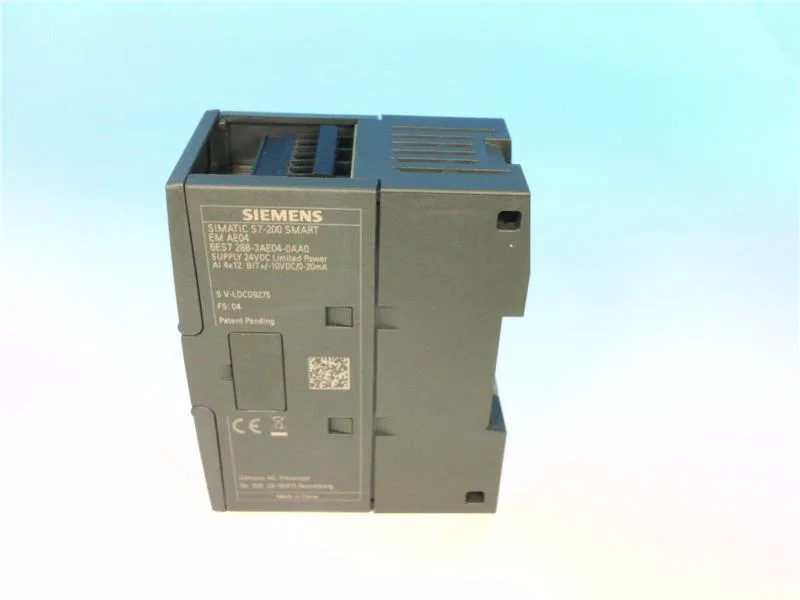

Siemens 6ES7288-3AE04-0AA0 S7-200 Smart Analog Input 4AI
MPN6ES7288-3AE04-0AA0
Siemens SIMATIC S7-200 Smart analog input SM AI04, order code 6ES7288-3AE04-0AA0, 4 analog inputs, 0-10 V, 0-5 V, ±2.5 V, ±5 V, 0/4-20 mA, 12-bit ADC, 24 V DC, 1.5 W, 45x100x81 mm, IP20.
168.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
SeriesS7-200 SMART
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs & Signal Ranges
| Parameter | Value |
|---|---|
| Number of analog inputs | 4 |
| Current input range | Yes; 0 to 20 mA |
| Voltage input range | Yes; ±10V, ±5V, ±2.5V |
| Resistance measuring ranges | No |
| RTD support (resistance thermometer) | No |
| Thermocouple support (types) | No |
| Input range: 0 to 20 mA | Yes |
| Input range: -10 to +10 V | Yes |
| Input range: -5 to +5 V | Yes |
| Input resistance (0 to 20 mA) | 250 Ω |
| Input resistance (-10 to +10 V) | 9 MΩ |
Measurement Performance
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 12 bit; voltage mode: 11 bit + sign bit, current mode: 11 bit |
| Interference voltage suppression (at interference frequency) | 10 / 50 / 60 / 400 Hz |
Diagnostics & Monitoring
| Parameter | Value |
|---|---|
| Wire-break detection | No |
| Diagnostics function | Yes |
| Supply voltage monitoring | Yes |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; -15 / +20 % |
| Power loss, typ. | 1.5 W |
Mechanical
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 147 g |
Product details
MPN
6ES7288-3AE04-0AA0
