Siemens 6ES7313-5BE01-0AB0 — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Digital inputs | 24 |
| Digital outputs | 16 |
| Expandable | No |
| Input data area | 248 |
| Output data area | 124 |
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.1 µs |
| Execution time, word operations (typ.) | 0.2 µs |
| Execution time, floating-point arithmetic (typ.) | 3 µs |
| Size, max. | 16 kbyte |
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 700 mA |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 14 W |
| Short-circuit protection | Yes; Clocked electronically |
| Parameter | Value |
|---|---|
| Width | 120 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight (approx.) | 660 g |
| Parameter | Value |
|---|---|
| Interface type | Integrated RS 485 interface |

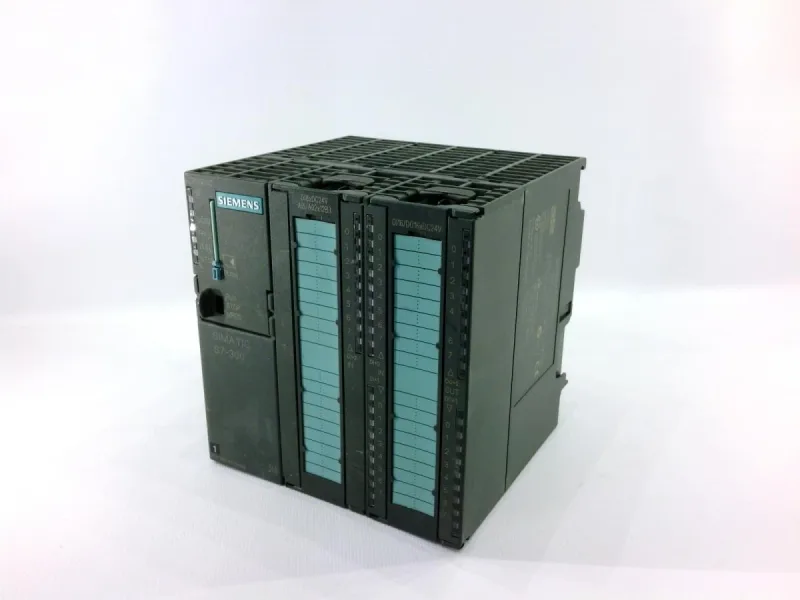

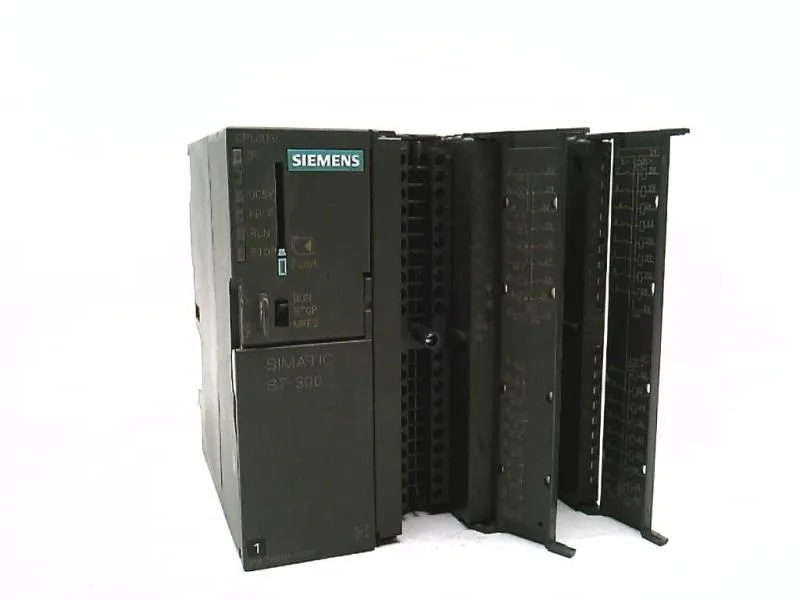

The 6ES7313-5BE01-0AB0 is a Siemens SIMATIC S7-300 CPU 313C compact CPU with 8 integrated function modules, an MMC slot for program and data storage, and an MPI interface for programming and networking. It supports up to 248 digital inputs and 124 digital outputs, draws 14 W, and requires STEP 7 V5.2 SP1 or higher for configuration.
