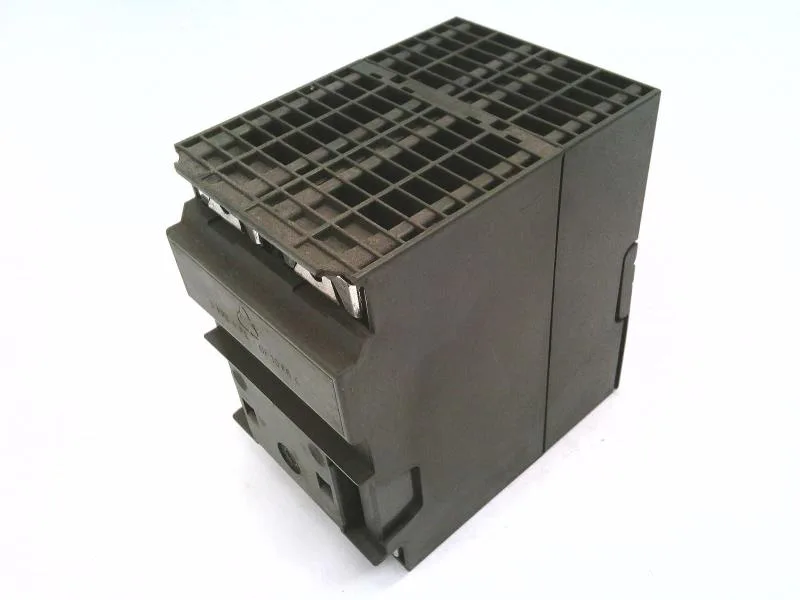

Siemens 6ES7314-1AE04-0AB0 — PLCs (Programmable Logic Controllers)

6ES7314-1AE04-0AB0

MPN6ES7314-1AE04-0AB0
End of Life

***Spare part*** SIMATIC S7-300, CPU 314 Central processing unit with Integr. power supply 24 V DC Work memory 24 KB

$676.00 – $1,055.45Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7314-1AE04-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.3 µs
Execution time, word operations (typ.)1 µs
Execution time, floating-point arithmetic (typ.)50 µs
Size, max.256 byte
6ES7314-1AE04-0AB0 — I/O
ParameterValue
Input data area122 byte
Output data area122 byte
6ES7314-1AE04-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7314-1AE04-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)1 000 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)8 W
6ES7314-1AE04-0AB0 — Mechanical
ParameterValue
Width80 mm
Height125 mm
Depth130 mm
Weight (approx.)530 g; Memory card 16 g
6ES7314-1AE04-0AB0 — Specifications
ParameterValue
Expandable FEPROMYes; Flash-EPROM
