Siemens 6ES7314-6BG03-0AB0 — PLCs (Programmable Logic Controllers)

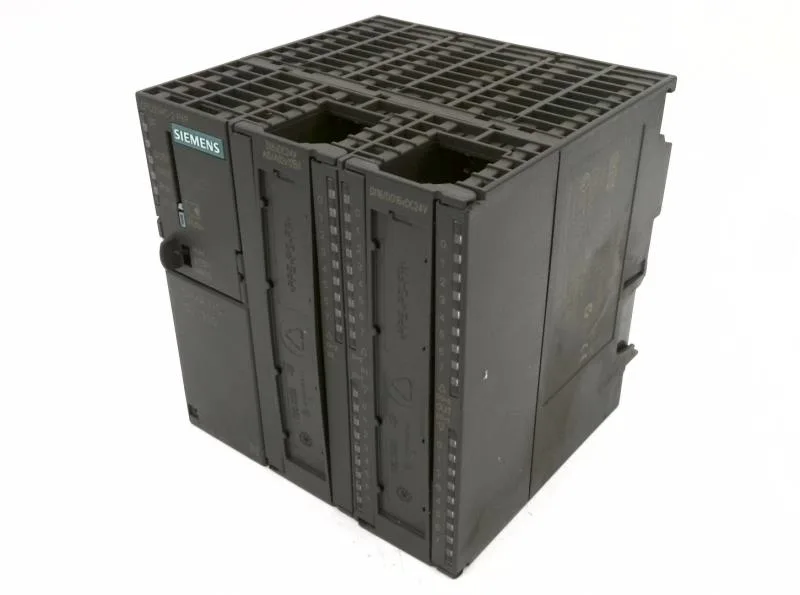

Siemens 6ES7314-6BG03-0AB0 CPU 314C-2 PN/DP, FM 8

MPN6ES7314-6BG03-0AB0
End of Life

Siemens SIMATIC S7-300 CPU 314C-2 PN/DP, order code 6ES7314-6BG03-0AB0, with FM 8, CFC support, 253 inputs, 250 outputs, I²t 0.7 A²·s.

$1,291.00 – $1,333.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7314-6BG03-0AB0 — I/O
ParameterValue
Digital inputs24
Digital outputs16
ExpandableNo
Input data area253
Output data area250
6ES7314-6BG03-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.1 µs
Execution time, word operations (typ.)0.2 µs
Execution time, floating-point arithmetic (typ.)3 µs
Size, max.256 byte
6ES7314-6BG03-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7314-6BG03-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)800 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)14 W
Short-circuit protectionYes; Clocked electronically
6ES7314-6BG03-0AB0 — Mechanical
ParameterValue
Width120 mm
Height125 mm
Depth130 mm
Weight (approx.)676 g
6ES7314-6BG03-0AB0 — Communication
ParameterValue
PROFINET CBANo
Interface typeIntegrated RS 422/ 485 interface

Product details

CPU 314C-2 PN/DP – what the key specs mean

The 6ES7314-6BG03-0AB0 is a SIMATIC S7-300 CPU 314C-2 PN/DP with integrated 8-channel function module (FM 8) for fast counting, frequency measurement, and positioning. It supports CFC for graphical configuration of logic. Input capacity reaches 253 digital inputs, output capacity 250 digital outputs, realized via CP modules on the rack. The I²t rating of 0.7 A²·s limits short-circuit energy on the output module. Programming languages include LAD, FBD, STL, SCL, GRAPH, and HiGraph, with STEP 7 V5.3 SP2 (HW update required).

Occupies a single slot on S7-300 rack; dimensions 120×125×130 mm. RS 485 (X.27) supports PROFIBUS and point-to-point via ASCII; MPI not supported. Supports 4 CP modules for LAN, 10 CP for PtP communication. Routing not available on this CPU. PROFIsafe not supported.

Frequently asked questions

What does FM 8 mean on this CPU?

FM 8 indicates 8 integrated fast counter channels (function module) for counting, frequency measurement, or positioning tasks without a separate module.

Does the 6ES7314-6BG03-0AB0 support CFC?

Yes, CFC (Continuous Function Chart) is supported for graphical logic configuration.

What programming languages are available?

Ladder (LAD), Function Block Diagram (FBD), Statement List (STL), Structured Control Language (SCL), GRAPH (sequential control), and HiGraph (state machine) are supported.

MPN
6ES7314-6BG03-0AB0
