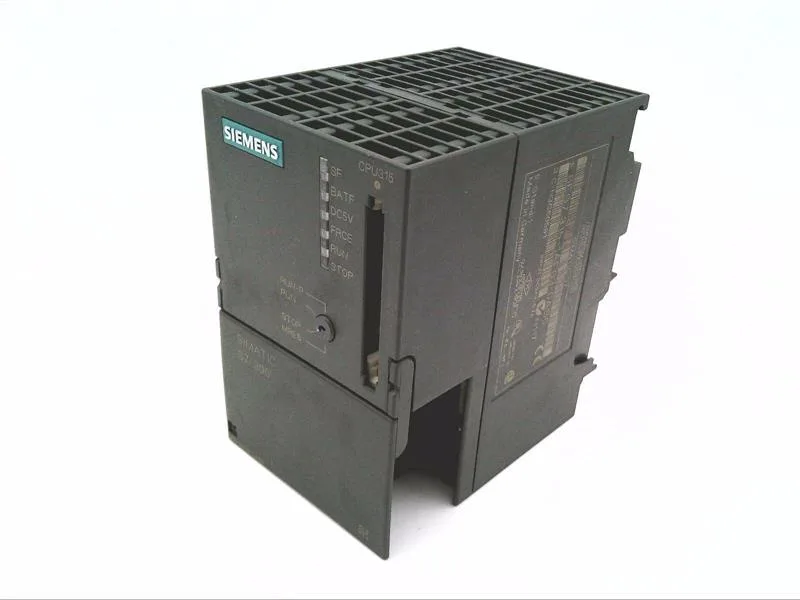

Siemens 6ES7315-1AF03-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7315-1AF03-0AB0 CPU 315-2 DP, 16 KB, EOL

MPN6ES7315-1AF03-0AB0
End of Life

Siemens SIMATIC S7-300, CPU 315-2 DP, 16 KB program memory, 128 digital I/O, 8 FM slots, MPI, DP, end-of-life.

$336.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7315-1AF03-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.3 µs
Execution time, word operations (typ.)1 µs
Execution time, floating-point arithmetic (typ.)50 µs
Size, max.16 kbyte
6ES7315-1AF03-0AB0 — I/O
ParameterValue
Input data area122 byte
Output data area122 byte
6ES7315-1AF03-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7315-1AF03-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)1 000 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)8 W
6ES7315-1AF03-0AB0 — Mechanical
ParameterValue
Width80 mm
Height125 mm
Depth130 mm
Weight (approx.)530 g; Memory card 16 g
6ES7315-1AF03-0AB0 — Specifications
ParameterValue
Expandable FEPROMYes; Flash-EPROM

Product details

The 6ES7315-1AF03-0AB0: Built-in MPI port handles programming and simple CPU-to-CPU links at 187.5 kbps. For PROFIBUS DP, you use the integrated DP interface. If you need Ethernet, a CP 342-5 occupies one of the two available LAN CP slots; four PtP CPs connect serial devices. The 8 FM-capable slots let you drop in fast counters, stepper modules, or positioning FMs.

Frequently asked questions

What does the FM rating of 8 mean?

The CPU supports a maximum of eight function modules (FMs) for specialized tasks such as high-speed counting or positioning.

Does this CPU support CFC?

Yes, CFC (Continuous Function Chart) is a supported programming language on this CPU.

What is the program memory size?

The maximum user program memory is 16 KB.
