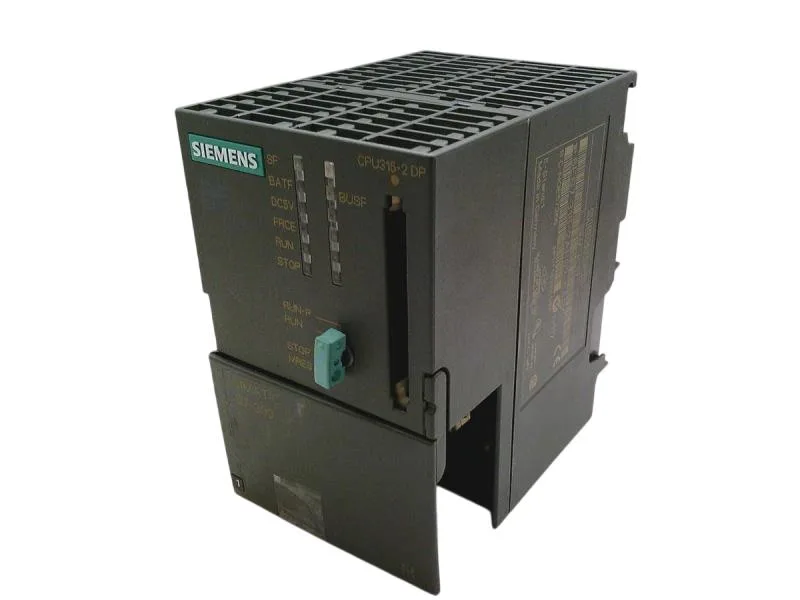

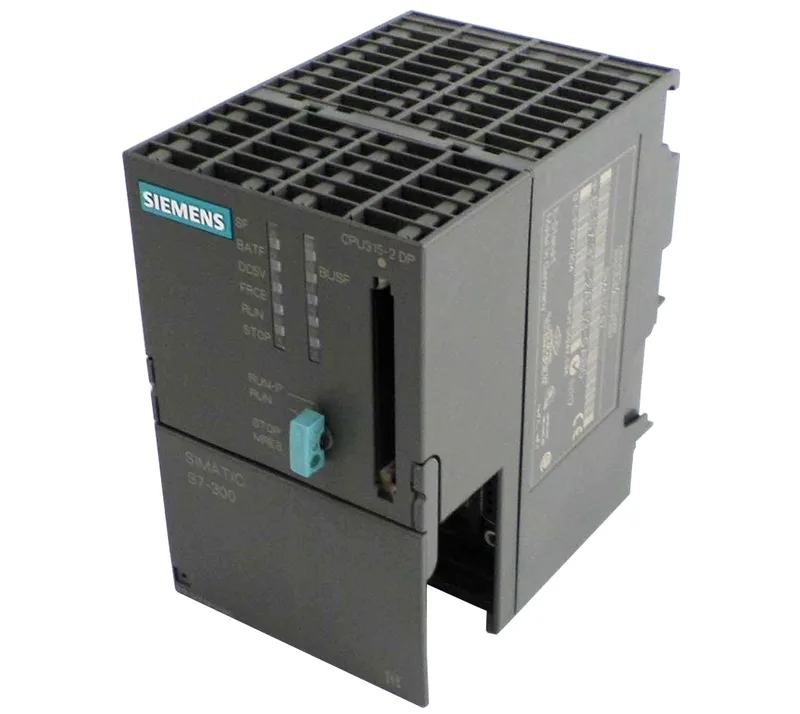

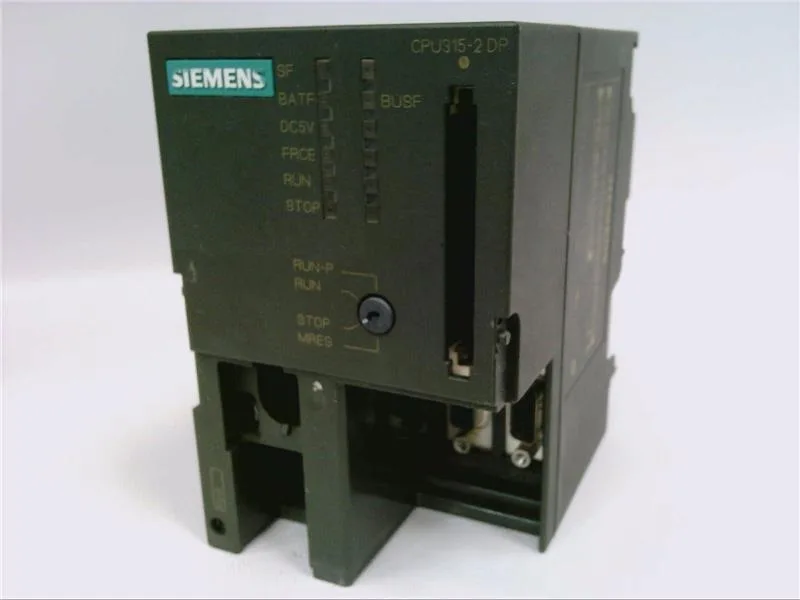

Siemens 6ES7315-2AF03-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7315-2AF03-0AB0 S7-300 CPU, EOL, FM 8

MPN6ES7315-2AF03-0AB0
End of Life

Siemens S7-300 CPU 315-2 DP, 6ES7315-2AF03-0AB0, FM 8, CFC, 24 V DC, EOL.

$231.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7315-2AF03-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.3 µs
Execution time, word operations (typ.)1 µs
Execution time, floating-point arithmetic (typ.)50 µs
Size, max.256 byte
6ES7315-2AF03-0AB0 — I/O
ParameterValue
Input data area244 byte
Output data area244 byte
6ES7315-2AF03-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7315-2AF03-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)1 000 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)8 W
6ES7315-2AF03-0AB0 — Mechanical
ParameterValue
Width80 mm
Height125 mm
Depth130 mm
Weight (approx.)530 g; Memory card 16 g
6ES7315-2AF03-0AB0 — Specifications
ParameterValue
Expandable FEPROMYes; Flash-EPROM

Product details

End-of-Life Sourcing Reality

The 6ES7315-2AF03-0AB0: No direct official replacement is listed in the lifecycle record. Any functional substitute would require a full engineering review of the S7-300 slot, backplane power budget, and software porting. For an exact drop-in, this specific order code is the only match.

FM 8 Expansion & CFC Support

CFC (Continuous Function Chart) is supported, allowing graphical interconnection of blocks for process control. Combined with the full command set (binary logic, floating-point arithmetic, jump functions), this CPU suits complex automation tasks requiring sequential and continuous control.

Frequently asked questions

How many function modules does this CPU support?

Up to 8 function modules (FM 8). This allows expansion with specialized modules like counters or positioning drives on the same rack.

What is the power consumption and supply voltage?

Typical power draw is 8 W at 24 V DC. This must be factored into the backplane PSU budget.

Which engineering software is required to program this CPU?

STEP 7 V5.0 is required. The CPU supports LAD, FBD, STL, SCL, GRAPH, CFC, and HiGraph® programming languages.
