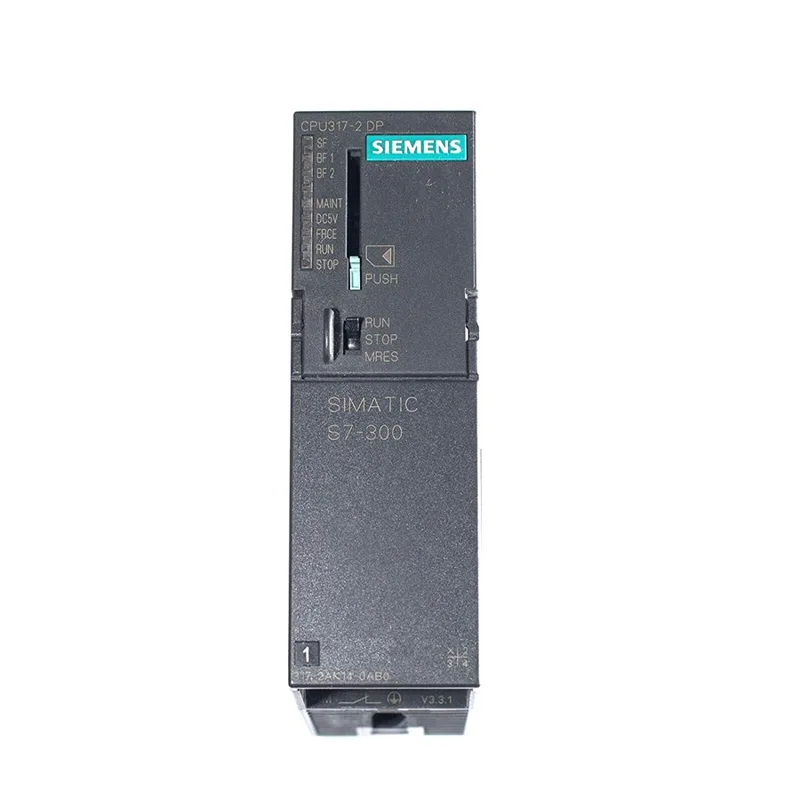

Siemens SIMATIC S7-300 | CPU | 6ES7317-2AK14-0AB0 | FM 8, CFC, RS 485, 40×125×130 mm.
| Parameter | Value |
|---|---|
| Digital inputs | 0 |
| Digital outputs | 0 |
| Expandable | No |
| Input data area | 244 byte |
| Output data area | 244 byte |
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.025 µs |
| Execution time, word operations (typ.) | 0.03 µs |
| Execution time, floating-point arithmetic (typ.) | 0.16 µs |
| Size, max. | 4 096 byte |
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 870 mA |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 4.5 W |
| Parameter | Value |
|---|---|
| Temperature, min. | 0 °C |
| Temperature, max. | 60 °C |
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight (approx.) | 360 g |
| Parameter | Value |
|---|---|
| Interface type | Integrated RS 485 interface |
The 6ES7317-2AK14-0AB0: 40 mm wide CPU for S7-300 rack. Supports LAD, FBD, STL, SCL, GRAPH, and HiGraph. RS 485 interface onboard; MPI not available. I2t rating of 1 A²·s noted in the spec sheet.
Dimensions 40 × 125 × 130 mm (W × H × D). Mounts on standard DIN rail. Depth of 130 mm fits common S7-300 enclosures; allow for cable bend radius at the front.
It supports LAD, FBD, STL, SCL, GRAPH, and HiGraph.
40 mm wide, fitting into a single slot on the S7-300 rack.
