6ES7322-1CF80-0AA0
MPN6ES7322-1CF80-0AA0
End of Life

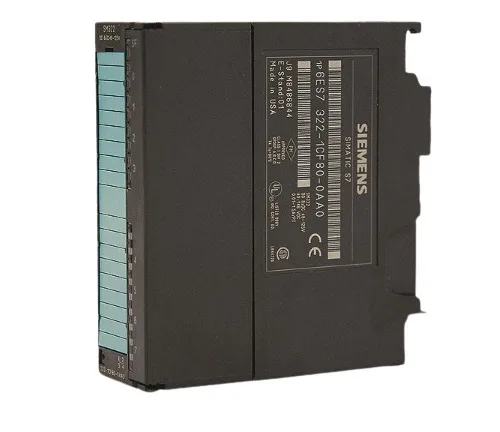

SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, FOR EXPANDED TEMPERATURE RANGE, 8 DO, DC 48-125V, 1.5A, 20 PIN
$243.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 48 V; 48 V DC to 125 V DC |
| Output current, resistive load, max. | 20 Hz |
| Permissible range, upper limit (DC) | 140 V |
| Permissible range, lower limit (DC) | 40 V |
| Output voltage at signal "1" (min.) | L1 (-1.1 V) |
| Residual current at signal "0", max. | 10 mA |
| Output current up to 60 °C, max. | 4 A |
| Current consumption from backplane bus (5 V DC), max. | 100 mA |
| Power dissipation (typ.) | 6.5 W |
| Isolation between channels and backplane bus | Yes; Optocoupler |
| Isolation, channels in groups of | 4 |
| Isolation test voltage | 1 500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Electronic |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight (approx.) | 250 g |
