Siemens 6ES7322-1HF00-0AA0 — Digital Output Modules

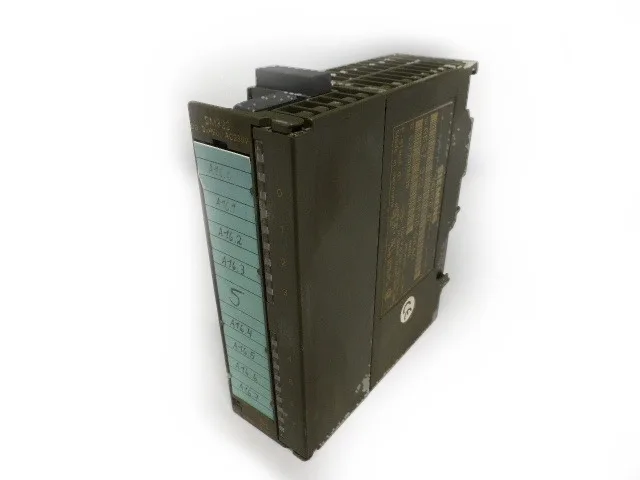

Siemens 6ES7322-1HF00-0AA0 SM 322 Digital Output Module

MPN6ES7322-1HF00-0AA0
End of Life

Siemens SIMATIC S7-300 SM 322 digital output module, 6ES7322-1HF00-0AA0, 120/230V AC, 20-pin front connector, 0.275 kg.

$78.87 – $221.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7322-1HF00-0AA0 — Protection & Diagnostics
ParameterValue
Diagnostic alarmNo
6ES7322-1HF00-0AA0 — Electrical
ParameterValue
Isolation test voltage24 V DC - 20...20 %
6ES7322-1HF00-0AA0 — Other specifications
ParameterValue
Weight0.275 Kg
Output signal4 000 V DC
Product typeSIMATIC S7-300
Rated value230 V; 120/230V AC
Dimensions (LxWxH)12cm x 4cm x 12.5cm
Permissible range, lower limit79V
Permissible range, upper limit264V
Connection method required front connector20-pin

Product details

Rated for 120/230V AC output loads

The 6ES7322-1HF00-0AA0: The module switches loads at a rated AC voltage of 120/230V AC, with a permissible range of 79V to 264V AC. That covers nominal 110V and 220V line supplies across most industrial regions without needing a different module variant.

20-pin front connector — panel wiring

Connection requires a 20-pin front connector (ordered separately). The module snaps onto the S7-300 DIN rail and connects to the backplane bus via the standard S7-300 connector interface.

Frequently asked questions

What replaces 6ES7322-1HF00-0AA0?

The official Siemens replacement is 6ES7322-1HF01-0AA0, which is the current-production SM 322 digital output module for the S7-300 family.

Is 6ES7322-1HF00-0AA0 compatible with S7-300?

Yes, it is a SIMATIC S7-300 SM 322 digital output module designed for the S7-300 rack system.

What is the difference between 6ES7322-1HF00-0AA0 and 6ES7322-1HF01-0AA0?

The 6ES7322-1HF01-0AA0 is the direct successor that replaces the 6ES7322-1HF00-0AA0. Both are SM 322 digital output modules for the S7-300 family; the -1HF01 is the current-production version.
