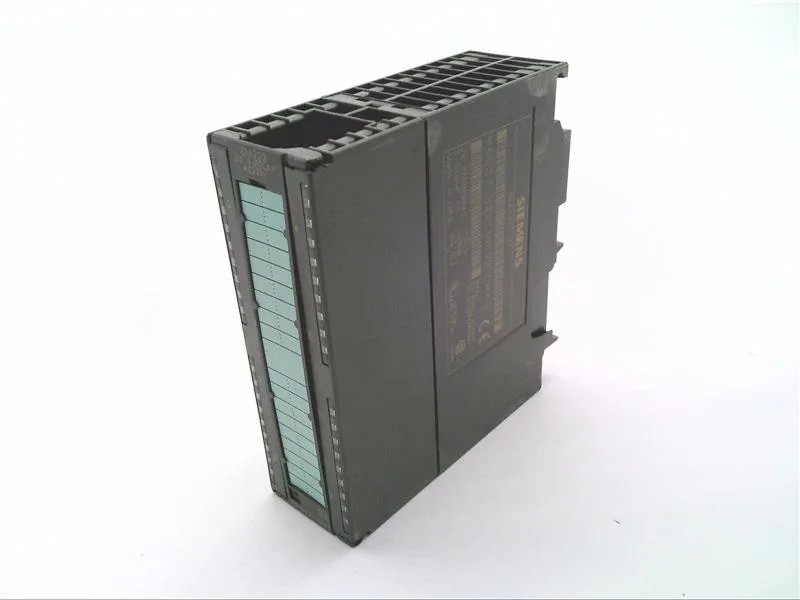

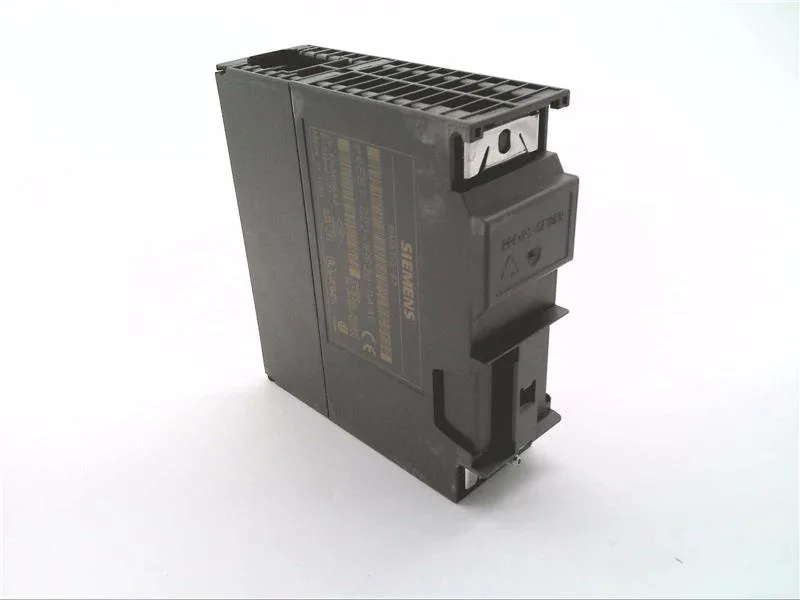

Siemens 6ES7322-1HF20-0AA0

Siemens 6ES7322-1HF20-0AA0 SM 322, 8 Relay Outputs, EOL

MPN 6ES7322-1HF20-0AA0
End of Life

Siemens SIMATIC S7-300 SM 322, 6ES7322-1HF20-0AA0, digital output module, 8 relay outputs, 24 V DC / 120-230 V AC, 5 A, optically isolated, integrated snubber.

$137.16 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Product details

Eight relay outputs with built-in snubber

The 6ES7322-1HF20-0AA0 is an SM 322 digital output module for the SIMATIC S7-300 rack, delivering eight relay outputs rated 5 A each at 24 V DC or 120–230 V AC. The integrated snubber across each relay coil suppresses inductive kickback from contactors, solenoids, and motor starters — so out here in the grease, a valve or a conveyor contactor won't weld the relay contacts on the first open. The 40-pin front connector carries the field wiring; the backplane bus provides the 24 V DC module supply and the PII data.

What the specs mean for your panel

Eight relay outputs means eight independent Form C (SPDT) contacts, each rated 5 A — enough for a small contactor coil or a solenoid valve directly, no interposing relay needed. The 24 V DC side powers the module logic; the 120–230 V AC side is the switched load. Optically isolated between the backplane and the field, so a short on the load side won't take out the S7-300 backplane bus. The 40-pin connector is the standard S7-300 front connector; the module snaps into any S7-300 rack slot.

MPN
6ES7322-1HF20-0AA0
