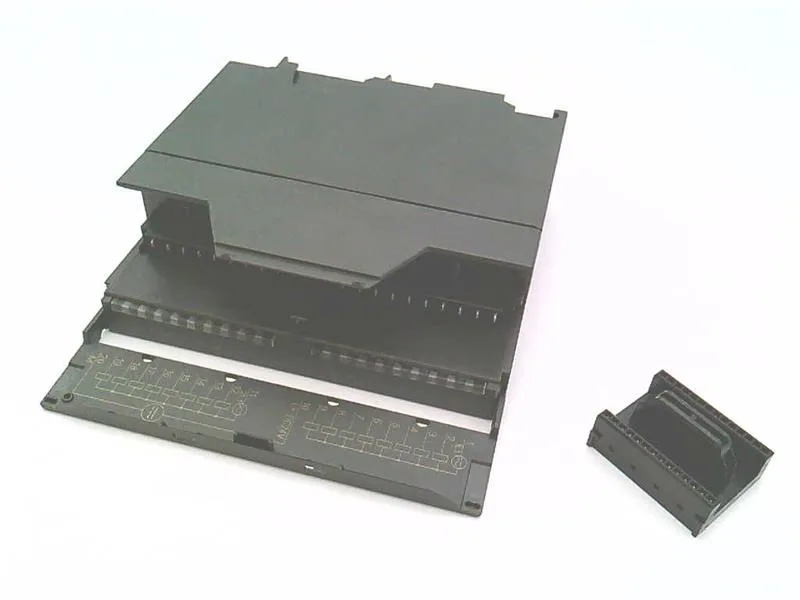

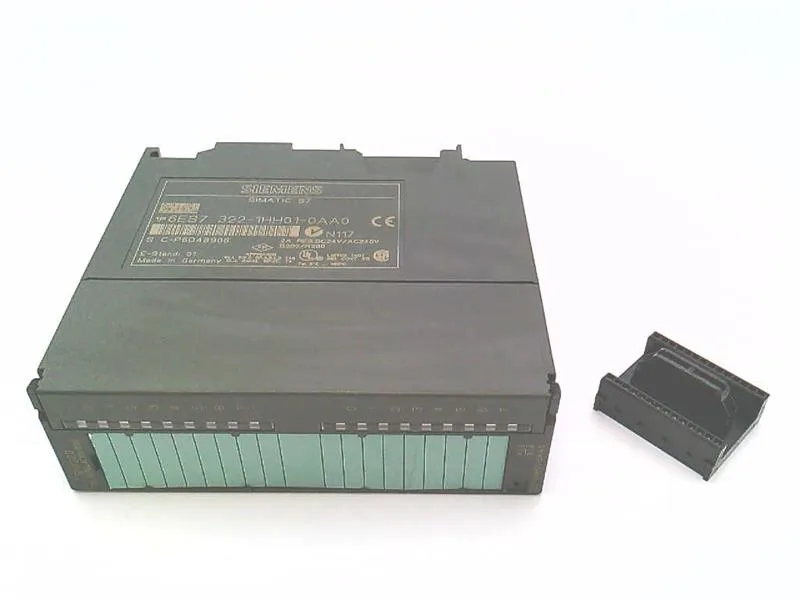

Siemens 6ES7322-1HH01-0AA0

Siemens 6ES7322-1HH01-0AA0 S7-300 16DO Relay, EOL Sourced

MPN 6ES7322-1HH01-0AA0
End of Life

Siemens S7-300, 16 relay outputs, 6ES7322-1HH01-0AA0, 2 A per channel, 230 V AC / 120 V DC, EOL hot.

$215.90 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7322-1HH01-0AA0 specifications
ParameterValue
Depth120 mm
Width40 mm
Height125 mm

Product details

The 6ES7322-1HH01-0AA0: Draws 100 mA from the 5 V backplane bus plus 4.5 W typical power loss. Front connector is 20-pin – not included, factor that into your BOM.

Ratings that drive the selection

Thermal continuous current per relay is 2 A. Inductive load max is 2 A, with 100 000 cycles at 230 V AC and 700 000 cycles at 120 V AC. No diagnostics, no short-circuit protection, no wire-break detection. It's a simple relay board – no fancy alarms. That means you need external fusing or a suitable load circuit if fault protection matters. Isolation tested at 1 500 V AC between channels and groups of 8. That's solid for panel separation but watch the group isolation if mixing power domains.

Where this part fits

Drops into any standard S7-300 rack – same 40 mm width, 125 mm height, 120 mm depth. No fieldbus or CPU compatibility issue; it's just a relay output slice. Unshielded cable runs up to 600 m, shielded up to 1 000 m. Connects via a 20-pin front connector (not included). Reuse the existing connector when replacing a module.

MPN
6ES7322-1HH01-0AA0
