Siemens 6ES7326-2BF10-0AB0 — Digital Output Modules

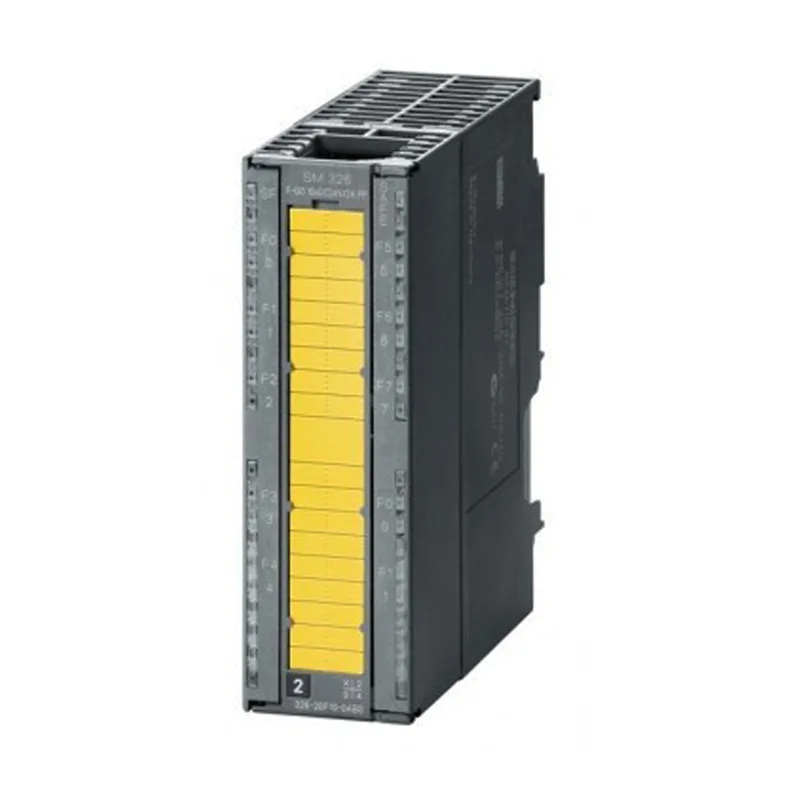

Siemens 6ES7326-2BF10-0AB0 Digital Output Module, 10 DO

MPN6ES7326-2BF10-0AB0
End of Life

Siemens S7-300 fail-safe digital output module, 10 outputs, 2 A rated, SIL 3 / PL e, 24 V DC, 40-pin front connector, end-of-life.

$1,047.75 – $1,533.00Ref. price · indicative, final on quote
Siemens 6ES7326-2BF10-0AB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7326-2BF10-0AB0 — Outputs
ParameterValue
Digital outputs10
6ES7326-2BF10-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V; 2L+, 3L+
Output current, resistive load, max.25 Hz
Output current at signal "1" (rated)2 A
Output voltage at signal "1" (min.)L+ (-1.0 V)
Residual current at signal "0", max.0.5 mA
Output current up to 60 °C, max.6 A
Current consumption from backplane bus (5 V DC), max.100 mA
Power dissipation (typ.)6 W
Isolation between channelsYes
Isolation between channels and backplane busYes
Isolation, channels in groups of5
Isolation test voltage370V for 1 min
6ES7326-2BF10-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionNo
Diagnostic alarmYes
6ES7326-2BF10-0AB0 — Performance
ParameterValue
Switching frequency, inductive load, max.25 Hz
Switching frequency, lamp load, max.10 Hz
6ES7326-2BF10-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width40 mm
Height125 mm
Depth120 mm
Weight (approx.)330 g

Product details

10 fail-safe outputs at 2 A, SIL 3 / PL e

The Siemens 6ES7326-2BF10-0AB0 is a fail-safe digital output module for the S7-300 system, delivering 10 outputs each rated 2 A at 24 V DC. It carries SIL 3 per IEC 61508 and PL e per ISO 13849-1, making it suitable for safety circuits up to Cat. 4 per EN 954.

Derating and load limits

The per-channel current is 2 A at 40 °C, derating to 2.4 A max at that temperature. At 60 °C the module delivers 6 A total across all outputs. Resistive and inductive loads switch at up to 25 Hz; lamp loads at 10 Hz. The module draws 100 mA from the backplane bus and up to 100 mA from each load supply leg.

The module snaps onto a DIN rail. Dimensions are 40 mm wide, 125 mm high, 120 mm deep. It requires a 40-pin front connector (sold separately). Unshielded cable runs up to 600 m; shielded up to 1 000 m. Channel-to-channel isolation is tested at 370 V for 1 minute.

Frequently asked questions

What is the replacement for 6ES7326-2BF10-0AB0?

This module is end-of-life; buyers need a drop-in or functional equivalent to avoid redesign.

Is 6ES7326-2BF10-0AB0 obsolete or still available?

Lifecycle uncertainty directly impacts sourcing decisions and production continuity.

Where can I buy 6ES7326-2BF10-0AB0 with stock?

Buyers need to find immediate availability from reliable distributors to fill BOM lines.

What is the price of 6ES7326-2BF10-0AB0?

Price comparison across distributors affects procurement cost and budget planning.

How many digital outputs does 6ES7326-2BF10-0AB0 have?

Design engineers need to confirm channel count for system I/O mapping.

Does 6ES7326-2BF10-0AB0 support SIL3 or PL e?

Safety integrity level is critical for fail-safe applications and regulatory compliance.
