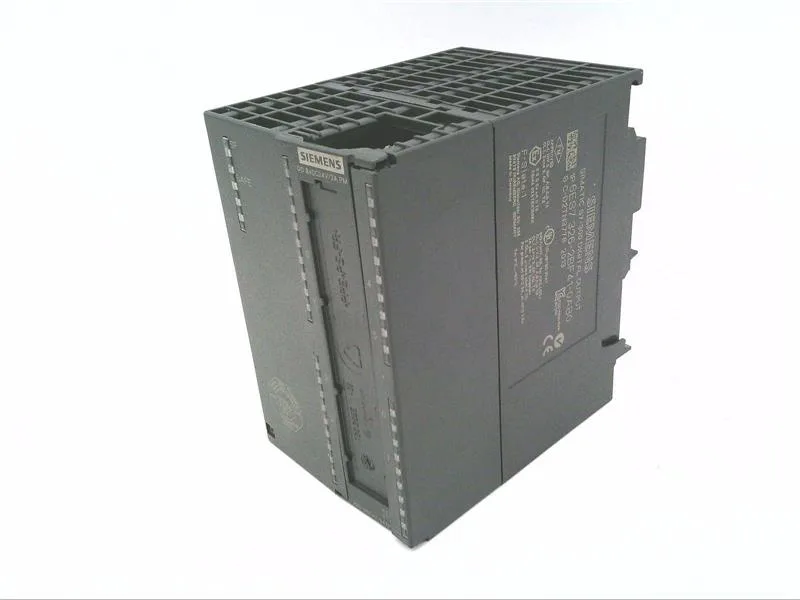

Siemens 6ES7326-2BF41-0AB0 — Digital Output Modules

Siemens 6ES7326-2BF41-0AB0 SM 326 F-DO 8x24VDC/2A PP, SIL 3

MPN6ES7326-2BF41-0AB0
End of Life

Siemens SM 326 fail-safe digital output module, 8 channels, 24 V DC, 2 A per channel, SIL 3, PL e, 40-pin front connector, end of life hot.

$849.63 – $1,288.00Ref. price · indicative, final on quote
Siemens 6ES7326-2BF41-0AB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7326-2BF41-0AB0 — Outputs
ParameterValue
Digital outputs8
6ES7326-2BF41-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V; 2L+, 3L+
Output current, resistive load, max.30 Hz
Output current at signal "1" (rated)2 A
Output voltage at signal "1" (min.)L+ (-1.0 V)
Residual current at signal "0", max.0.5 mA
Output current up to 60 °C, max.5 A
Current consumption from backplane bus (5 V DC), max.100 mA
Power dissipation (typ.)12 W
Inductive shutdown voltage clampL+ (-33 V)
Isolation between channelsYes
Isolation between channels and backplane busYes
Isolation, channels in groups of4
Isolation test voltage500 V DC/350 V AC
6ES7326-2BF41-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionNo
Diagnostic alarmYes; Parameterizable
6ES7326-2BF41-0AB0 — Performance
ParameterValue
Switching frequency, inductive load, max.2 Hz
Switching frequency, lamp load, max.10 Hz
6ES7326-2BF41-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.200 m
Cable length, shielded, max.200 m; 200 m for SIL 3, AK 6, Cat 4
Width80 mm
Height125 mm
Depth120 mm
Weight (approx.)465 g

Product details

Fail-safe output for SIL 3 safety loops

The Siemens 6ES7326-2BF41-0AB0 is an SM 326 fail-safe digital output module with 8 channels, each rated 2 A per channel at 24 V DC. It carries SIL 3 per IEC 61508, Cat. 4 per EN 954, and PL e per ISO 13849-1 — the highest discrete safety integrity for a standard form-factor module. This module is designed for safety-critical shutdown and guard-monitoring circuits where a single point of failure must not cause loss of the safety function. The 2 A per-channel rating (derated to 1 A in vertical installation) handles direct solenoid and contactor loads without an interposing relay.

MPN
6ES7326-2BF41-0AB0
