Siemens 6ES7331-7PF01-0AB0 — Analog Input Modules

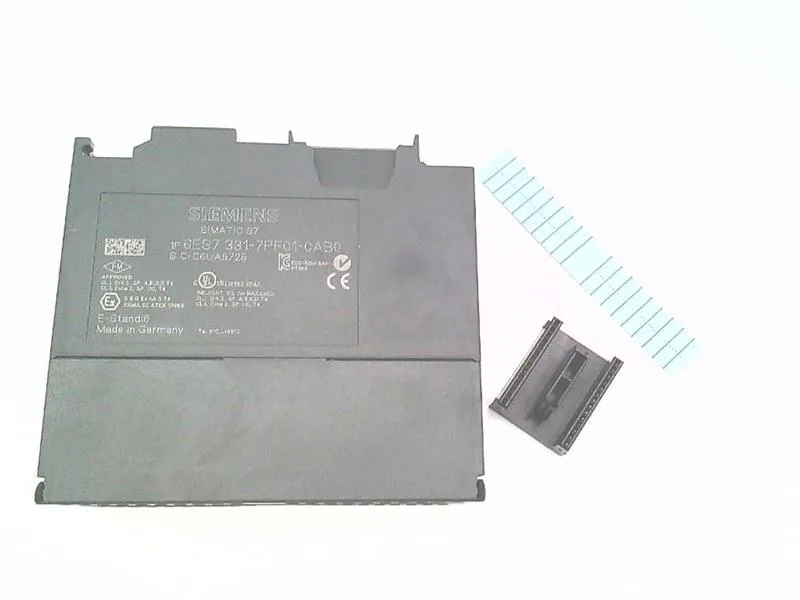

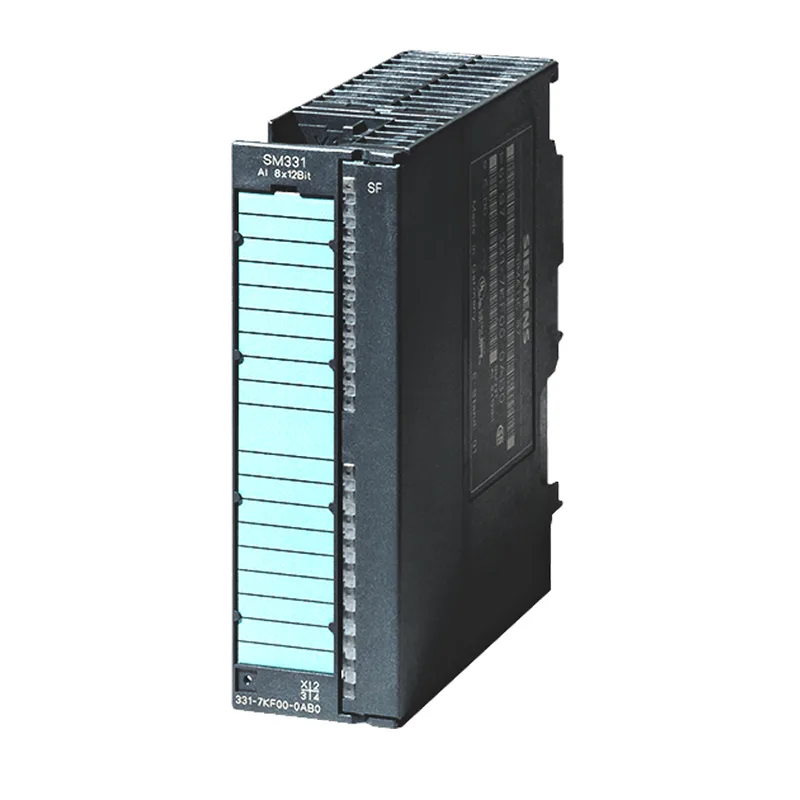

Siemens 6ES7331-7PF01-0AB0 Analog Input Module

MPN6ES7331-7PF01-0AB0
End of Life

Siemens S7-300 analog input module, 6ES7331-7PF01-0AB0, RTD and resistance inputs, 40 mm width, 120 mm depth, Pt100/Ni100/Cu10 support.

$392.00Ref. price · indicative, final on quote
Siemens 6ES7331-7PF01-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7331-7PF01-0AB0 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs8
Current input rangeNo
Voltage input rangeNo
Resistance measuring rangesYes
RTD support (resistance thermometer)Yes
Thermocouple support (types)No
Input range: 0 to 20 mANo
Input range: 4 to 20 mANo
Input range: -10 to +10 VNo
Input range: -5 to +5 VNo
Input range: -80 to +80 mVNo
Input range: 0 to 600 OhmYes
RTD type: Pt100Yes
RTD type: Pt200Yes
Permissible input voltage, max. (destruction limit)75 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20)
Max. shielded signal cable length200 m
6ES7331-7PF01-0AB0 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.16 bit; Two's complement
Interference voltage suppression (at interference frequency)400 / 60 / 50 Hz
6ES7331-7PF01-0AB0 — Diagnostics & Monitoring
ParameterValue
Diagnostic alarmYes; Parameterizable per group
Diagnostics functionYes; Parameterizable
Limit value alarmYes; Parameterizable
6ES7331-7PF01-0AB0 — Isolation
ParameterValue
Isolation: channels to backplane busYes
Isolation: between channelsYes
Isolation test voltage500 V DC
6ES7331-7PF01-0AB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss, typ.4.6 W
Reverse polarity protectionYes
6ES7331-7PF01-0AB0 — Mechanical
ParameterValue
Required front connector40-pin
Width40 mm
Height125 mm
Depth120 mm
Weight, approx.272 g

Product details

RTD input coverage for temperature loops

The 6ES7331-7PF01-0AB0 is an S7-300 analog input module that reads resistance thermometers and resistive sensors directly — no external transmitters needed. It supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, LG-Ni1000, and Cu10, covering the common platinum and nickel curves used in industrial temperature monitoring. For resistive sensors without a standard curve, it also measures straight resistance in three ranges: 0 to 150 ohms, 0 to 300 ohms, and 0 to 600 ohms.

Panel fit and wiring constraints

The module is 40 mm wide, 125 mm high, and 120 mm deep — it occupies one slot in an S7-300 rail and leaves clearance for the front connector and wiring duct. The depth includes the bus connector overhang; plan for 120 mm behind the panel door.

This module is a mature S7-300 design.

Frequently asked questions

Is 6ES7331-7PF01-0AB0 compatible with S7-300?

Yes, it is an S7-300 analog input module — it snaps onto the standard DIN rail and connects to the backplane bus via the included bus connector. It fits any S7-300 rack that has a free slot.

How do I order Siemens 6ES7331-7PF01-0AB0?

This part is sourced to order against an RFQ. Submit a request with your target quantity, and we will confirm availability and current pricing at quote time. No stock-holding claim is made here.

MPN
6ES7331-7PF01-0AB0
