Siemens 6ES7331-7PF11-0AB0 is an 8-channel analog input module for the S7-300 rack. It handles thermocouple inputs only — supports types B, C, E, J, K, L, N, R, S, T, U. No RTD, current, or voltage inputs. Dimensions are 40 mm wide, 125 mm height, 120 mm depth. That depth is standard for S7-300, so it slots into the same backplane as any other module in the series. The Cu 10 and Pt 100 input options are not supported — this is thermocouple only, so if your BOM calls for RTD or 4-20 mA, this is not the module.

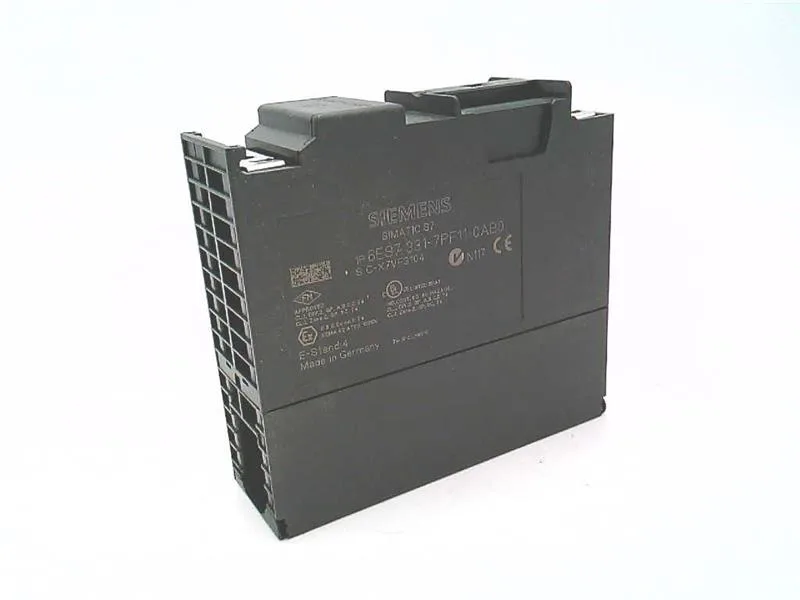

Siemens 6ES7331-7PF11-0AB0 Analog Input Module, Thermocouple
MPN6ES7331-7PF11-0AB0
End of Life
Siemens SIMATIC S7-300 analog input module, 8-channel thermocouple input, 6ES7331-7PF11-0AB0, 40 x 125 x 120 mm.
$504.00 – $814.07Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs & Signal Ranges
| Parameter | Value |
|---|---|
| Number of analog inputs | 8 |
| Current input range | No |
| Voltage input range | No |
| Resistance measuring ranges | No |
| RTD support (resistance thermometer) | No |
| Thermocouple support (types) | Yes |
| Input range: 0 to 20 mA | No |
| Input range: 4 to 20 mA | No |
| Input range: -10 to +10 V | No |
| Input range: -5 to +5 V | No |
| Input range: -80 to +80 mV | No |
| Input range: 0 to 600 Ohm | No |
| RTD type: Pt100 | No |
| RTD type: Pt200 | No |
| Permissible input voltage, max. (destruction limit) | 75 V; 20 V DC permanent, 75 V DC for max. 1 s (duty factor 1:20) |
| Max. shielded signal cable length | 100 m |
Measurement Performance
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 16 bit; Two's complement |
| Voltage measurement error (±) | ±1 K |
| Interference voltage suppression (at interference frequency) | 400 / 60 / 50 Hz |
Diagnostics & Monitoring
| Parameter | Value |
|---|---|
| Diagnostic alarm | Yes; Parameterizable per group |
| Diagnostics function | Yes; Parameterizable |
| Limit value alarm | Yes; Parameterizable |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | Yes |
| Isolation test voltage | 500 V DC |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 3 W |
| Reverse polarity protection | Yes |
Mechanical
| Parameter | Value |
|---|---|
| Required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 272 g |
Product details
Frequently asked questions
What is 6ES7331-7PF11-0AB0's depth?
120 mm depth, which matches the standard S7-300 form factor.
