Siemens 6ES7332-5HD01-0AB0 — Analog Output Modules

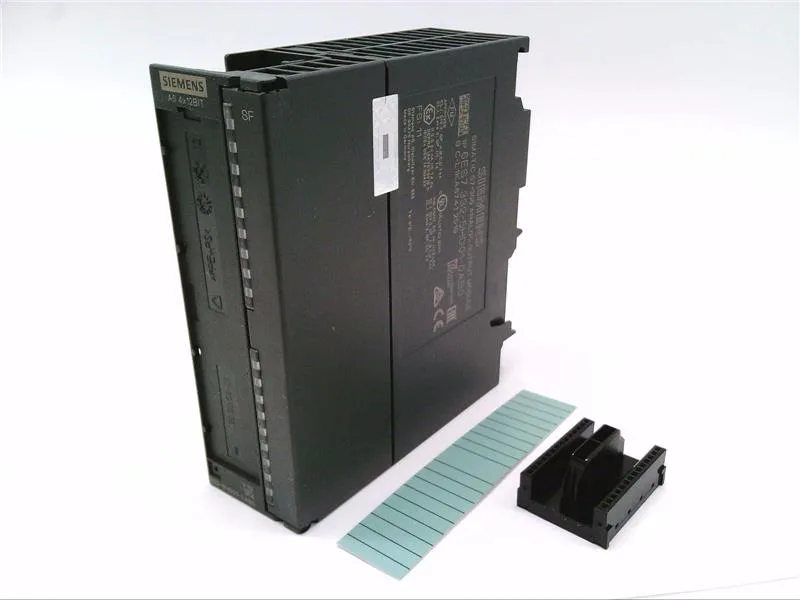

Siemens 6ES7332-5HD01-0AB0 Analog Output Module, 4 AO, EOL

MPN6ES7332-5HD01-0AB0
End of Life

Siemens SIMATIC S7-300 analog output module, 4 channels, voltage and current outputs, 24 VDC, 117 mm depth, end-of-life status.

$190.00Ref. price · indicative, final on quote
Siemens 6ES7332-5HD01-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7332-5HD01-0AB0 — Outputs
ParameterValue
Number of analog outputs4
Output range: -10 V to +10 VYes
Output range: 0 to 10 VYes
Output range: 1 V to 5 VYes
Output range: 0 to 20 mAYes
Output range: 4 to 20 mAYes
Output range: -20 mA to +20 mAYes
Load resistance, current outputs, max.500 Ω
Load resistance, voltage outputs, min.1 kΩ
Current output, no-load voltage, max.18 V
Voltage output, short-circuit current, max.25 mA
Voltage output, short-circuit protectionYes
Inductive load, current outputs, max.10 mH
Capacitive load, voltage outputs, max.1 µF
Cable length, shielded, max.200 m
6ES7332-5HD01-0AB0 — Performance
ParameterValue
Resolution (incl. sign, with overrange), max.12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit
Error, voltage output (rel. to output range)0.4 %
Error, current output (rel. to output range)0.5 %
Conversion time (per channel)0.8 ms
Settling time, resistive load0.2 ms
Settling time, inductive load0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH)
Settling time, capacitive load3.3 ms
6ES7332-5HD01-0AB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss (typ.)3 W
Current consumption from backplane bus (5 V DC), max.60 mA
Current consumption from load voltage L+ (no load), max.240 mA
Reverse polarity protectionYes
6ES7332-5HD01-0AB0 — Diagnostics
ParameterValue
Diagnostics functionYes; Parameterizable
Diagnostic interrupt/alarmYes; Parameterizable
6ES7332-5HD01-0AB0 — Isolation
ParameterValue
Isolation: channels to backplane busYes
Isolation: between channelsNo
Isolation: channels to load voltage L+Yes
Isolation test voltage500 V DC
6ES7332-5HD01-0AB0 — Mechanical
ParameterValue
Front connector required20-pin
Width40 mm
Height125 mm
Depth117 mm

Product details

4 AO channels, voltage and current outputs

The Siemens 6ES7332-5HD01-0AB0 is a 4-channel analog output module for the S7-300 rack. It covers the standard signal ranges: 0 to 10 V, -10 V to +10 V, 0 to 20 mA, and 4 mA to 20 mA, plus a bipolar -20 mA to +20 mA option. That means a single module handles voltage-loop actuators (valves, drives) and current-loop transmitters without a separate signal conditioner.

Supply and load requirements

Rated 24 VDC load voltage L+. The module draws up to 60 mA from the backplane bus 5 VDC and up to 240 mA from L+ with no load. A 20-pin front connector is required — the same connector used across the S7-300 analog family, so a spare in the panel stock covers multiple module types.

Conversion speed and load drive

Conversion time is 0.8 ms per channel. Resistive load settling is 0.2 ms; inductive loads up to 10 mH add 0.5 ms.

Frequently asked questions

What is the replacement for 6ES7332-5HD01-0AB0?

No official successor order code is recorded in the lifecycle data. For a new design, consult the current S7-300 analog output module catalog; for a BOM freeze, the module is available through independent channels on a quoted basis.
