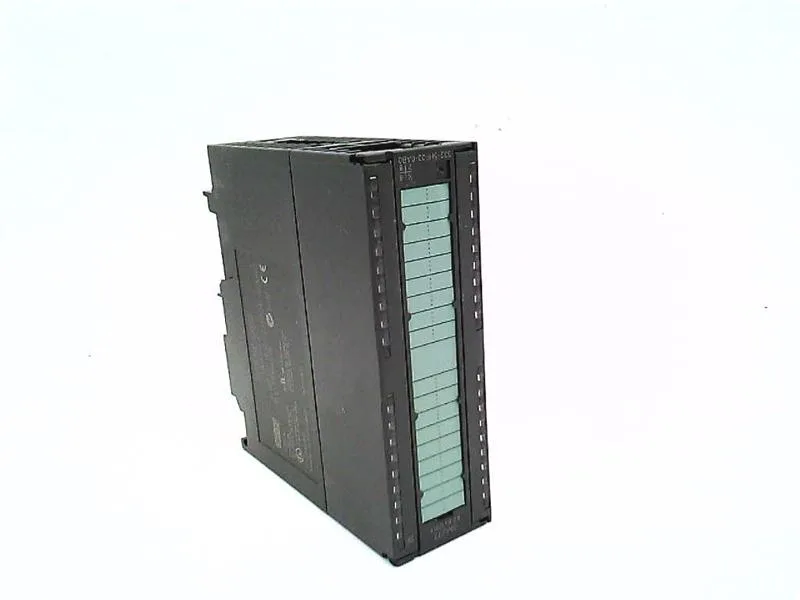

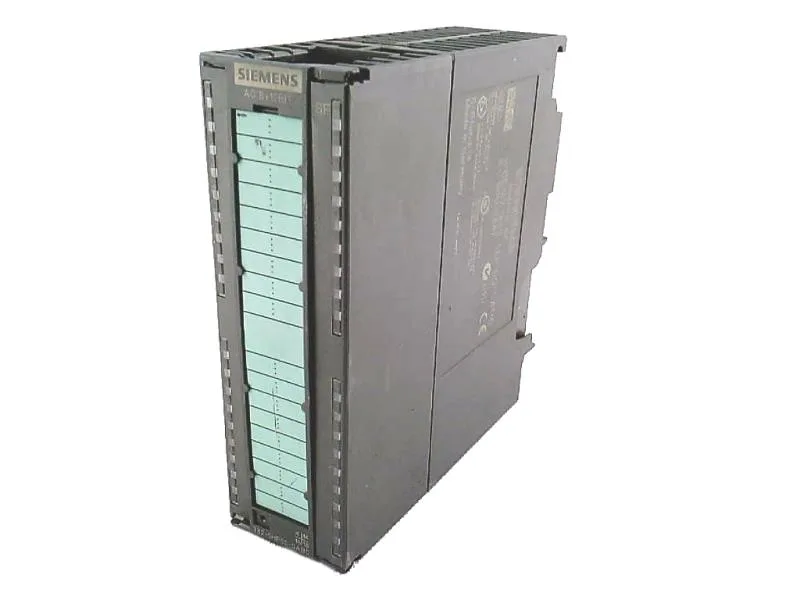

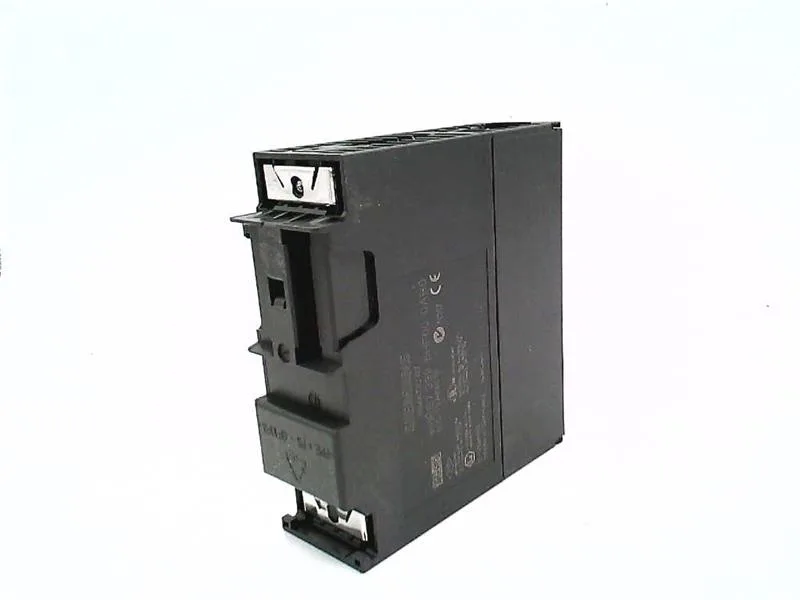

Siemens S7-300 6ES7332-5HF00-0AB0, 8-channel analog output module, 12-bit, 40mm wide.
| Parameter | Value |
|---|---|
| Number of analog outputs | 8 |
| Output range: -10 V to +10 V | Yes |
| Output range: 0 to 10 V | Yes |
| Output range: 1 V to 5 V | Yes |
| Output range: 0 to 20 mA | Yes |
| Output range: 4 to 20 mA | Yes |
| Output range: -20 mA to +20 mA | Yes |
| Load resistance, current outputs, max. | 500 Ω |
| Load resistance, voltage outputs, min. | 1 kΩ |
| Current output, no-load voltage, max. | 18 V |
| Voltage output, short-circuit current, max. | 25 mA |
| Voltage output, short-circuit protection | Yes |
| Inductive load, current outputs, max. | 10 mH |
| Capacitive load, voltage outputs, max. | 1 µF |
| Cable length, shielded, max. | 200 m |
| Parameter | Value |
|---|---|
| Resolution (incl. sign, with overrange), max. | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit |
| Error, voltage output (rel. to output range) | 0.4 % |
| Error, current output (rel. to output range) | 0.5 % |
| Conversion time (per channel) | 0.8 ms |
| Settling time, resistive load | 0.2 ms |
| Settling time, inductive load | 0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH) |
| Settling time, capacitive load | 3.3 ms |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss (typ.) | 6 W |
| Current consumption from backplane bus (5 V DC), max. | 100 mA |
| Current consumption from load voltage L+ (no load), max. | 340 mA |
| Reverse polarity protection | Yes |
| Parameter | Value |
|---|---|
| Diagnostics function | Yes; Parameterizable |
| Diagnostic interrupt/alarm | Yes; Parameterizable |
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation: channels to load voltage L+ | Yes |
| Isolation test voltage | 500 V DC |
| Parameter | Value |
|---|---|
| Front connector required | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
Output load limits define the loop: current outputs drive up to 500 Ω (18 V compliance), voltage outputs need a minimum of 1 kΩ load. Short-circuit protection on voltage outputs limits current to 25 mA. Settling time varies by load — 0.2 ms resistive, 0.5 ms inductive (1 mH), 3.3 ms capacitive (1 µF). Accuracy is 0.5% for current and 0.4% for voltage, referenced to output range.
