What this module does in the S7-300 rack

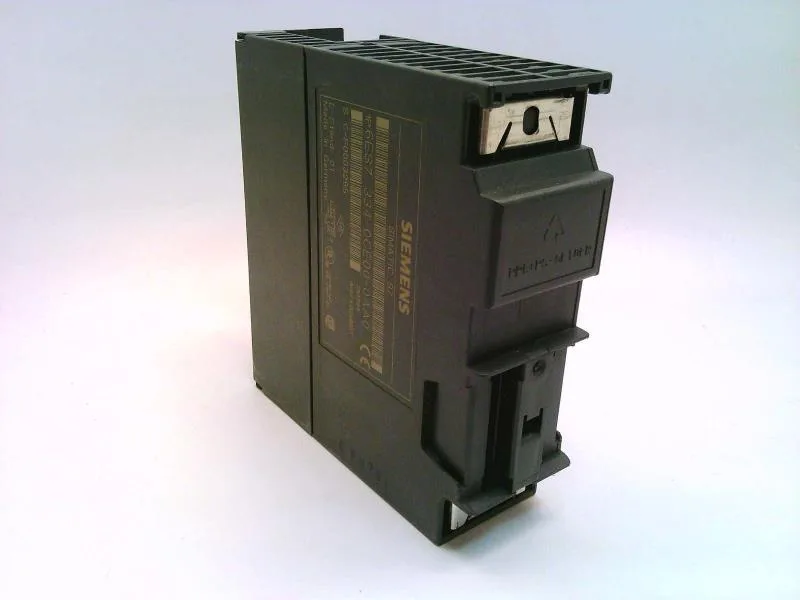

The Siemens 6ES7334-0CE00-0AA0 is an SM 334 analog mixed module that gives you four 8-bit analog inputs and two 8-bit analog outputs in one slot — a combo unit for applications where you need a few analog channels but don't want to burn two separate module positions on the rail.
Resolution and channel count — what 8-bit means on the line
Eight-bit resolution gives you 256 steps across the input range. For a 0–10 V signal that's roughly 39 mV per LSB — adequate for monitoring tank levels or conveyor speeds where you don't need the precision of a 12- or 16-bit module. The two analog outputs follow the same 8-bit scale, so the analogue setpoint to a small VFD or valve positioner will have that same step granularity.
