Lifecycle & Sourcing Reality
The 6ES7334-0CE01-0AA0: There is no official Siemens successor for this exact part number. If you need a like-for-like replacement in a running S7-300 rack, a broker-sourced identical module is the only drop-in path. For new designs, consider a move to S7-1500 analog I/O (which uses a different form factor and backplane).
What It Is & Key Ratings

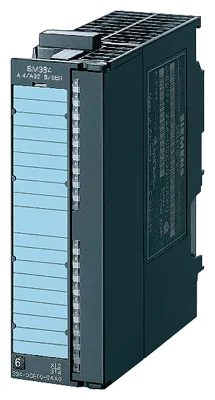

SIMATIC S7-300 analog I/O module, 40 mm wide: 4 analog inputs for voltage (100 kΩ input resistance) or current (50 Ω input resistance); 2 analog outputs for voltage (min load 5 kΩ) or current (max load 300 Ω). Conversion time per channel is 500 µs; full cycle time for all channels max 5 ms. Powered via backplane (55 mA from 5 V DC) plus an external 24 V DC supply (rated value 24 V). No diagnostics, no alarms, no integration time parameterization. Requires a 20-pin front connector (not included). Isolation tested at 500 V DC between channels and backplane bus? No — no isolation. Keep that in mind if you need channel-to-bus galvanic separation.
Integration Fit
Cables: shielded max 200 m for analog inputs. For resistive loads (outputs), response time 0.3 ms; capacitive loads 3 ms. No between-channel isolation — grounds share a common reference.
