Siemens 6ES7336-1HE00-0AB0 Analog Input SM 336
MPN6ES7336-1HE00-0AB0
End of Life

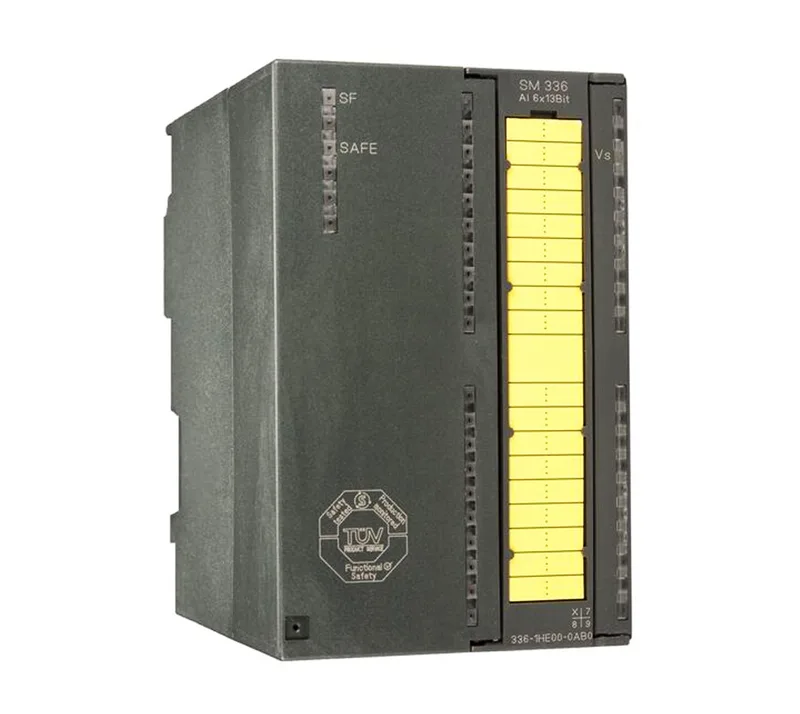

***Spare part*** SIMATIC S7, Analog input SM 336, 6 AI; 14 bit; 40-pole, fail-safe analog inputs for SIMATIC S7F systems with diagnostic alarm
$1,778.00 – $1,986.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs & Signal Ranges
| Parameter | Value |
|---|---|
| Number of analog inputs | 6 |
| Current input range | Yes |
| Voltage input range | Yes |
| Input range: 0 to 20 mA | Yes |
| Input range: 4 to 20 mA | Yes |
| Current measurement: 2-wire transducer | Yes |
| Current measurement: 4-wire transducer | Yes |
| Input resistance (0 to 20 mA) | 107 Ω |
| Input resistance (4 to 20 mA) | 107 Ω |
| Permissible input voltage, max. (destruction limit) | 30 V |
| Permissible input current, max. (destruction limit) | 40 mA |
| Max. shielded signal cable length | 200 m |
Measurement Performance
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 14 bit |
| Voltage measurement error (±) | 0.4 % |
| Current measurement error (±) | 0.4 % |
| Interference voltage suppression (at interference frequency) | 38 dB |
Diagnostics & Monitoring
| Parameter | Value |
|---|---|
| Diagnostic alarm | Yes; Parameterizable |
| Diagnostics function | Yes |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation test voltage | 500 V DC/350 V AC |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 4.25 W |
| Reverse polarity protection | Yes |
Mechanical
| Parameter | Value |
|---|---|
| Required front connector | 40-pin |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 480 g |
MPN
6ES7336-1HE00-0AB0
