The 6ES7350-1AH02-0AE0: The module integrates three digital inputs (for gate start, gate stop, and setting the counter) and two digital outputs with a maximum output current of 300 mA each, clocked short-circuit protection included. Counting resolution down to 2.5 µs minimum pulse width, with signal thresholds defined: signal '1' at +11 to +28.8 V, signal '0' at -28.8 to +5 V. Power is drawn from the S7-300 backplane bus (5 V DC, 160 mA max) plus a separate 24 V DC supply (20.4–28.8 V, dynamic 18.5–30.2 V) for the inputs and outputs. Typical power loss is 4.5 W.

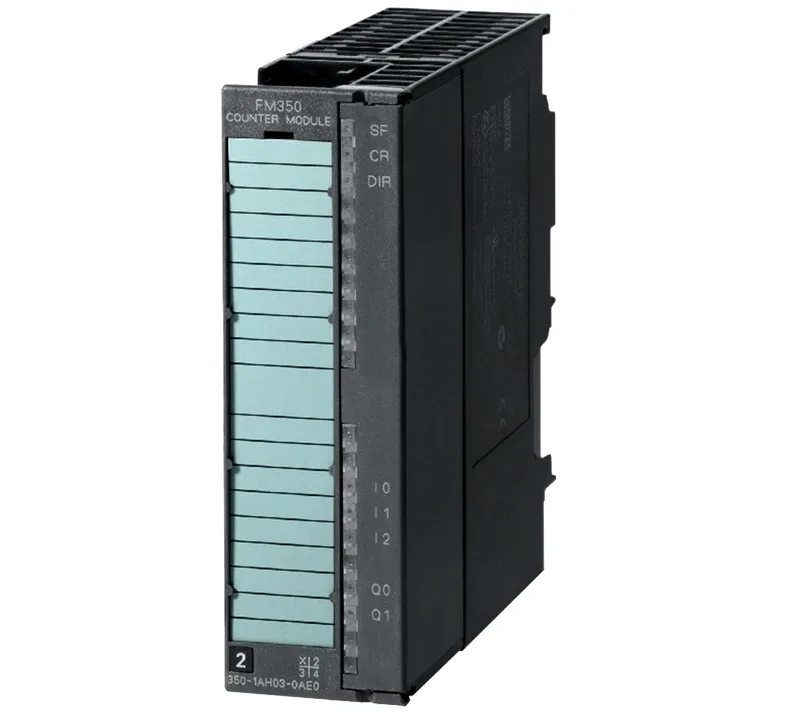

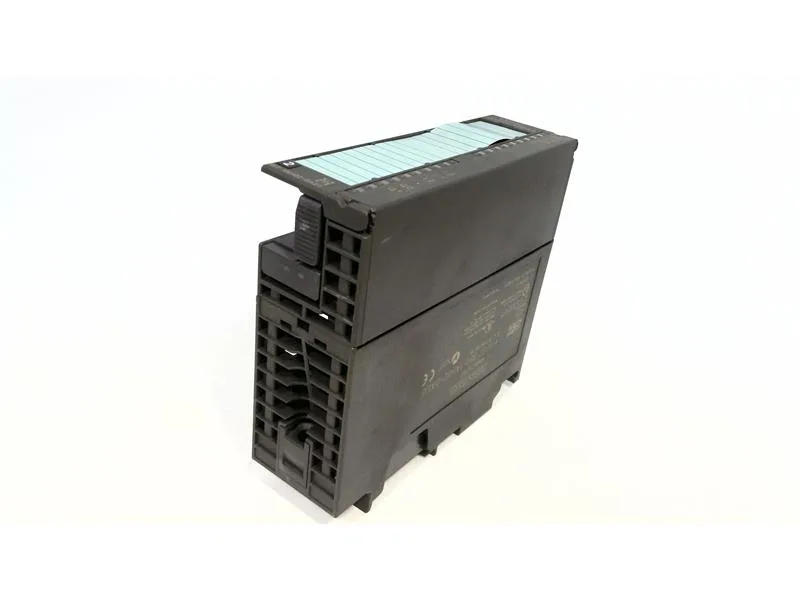

Siemens 6ES7350-1AH02-0AE0 Counter Module, 200 kHz, eol_hot
MPN6ES7350-1AH02-0AE0
End of Life
Siemens SIMATIC S7-300 FM 350-1 counter module, 6ES7350-1AH02-0AE0, 1 counter input 200 kHz RS422, 32-bit, 3 DI / 2 DO, end-of-life.
$392.43 – $570.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | RS 422 |
| Parameter | Value |
|---|---|
| Digital inputs | 3 |
| Digital outputs | 2 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V; Dynamic 18.5 V |
| Permissible range, upper limit (DC) | 28.8 V; dynamic 30.2 V |
| For signal "1" | +11 to +28.8V |
| For signal "0" | -28.8 ... +5V |
| Current for signal "1" (typ.) | 9 mA |
| Power loss (typ.) | 4.5 W |
| Current consumption from backplane bus (5 V DC), max. | 160 mA |
| Short-circuit protection | Yes; Clocked electronically |
| Isolation test voltage | 500 V |
| Isolation: channels to backplane bus | Yes; Optocoupler |
| Parameter | Value |
|---|---|
| Height | 125 mm |
| Width | 40 mm |
| Depth | 120 mm |
| Weight (approx.) | 250 g |
Product details
Frequently asked questions
What replaces the 6ES7350-1AH02-0AE0 officially?
Siemens does not list a direct official successor for this order code. A system migration to a newer counter module (e.g., from the S7-1200 or S7-1500 family) would require rewiring and software rework.
